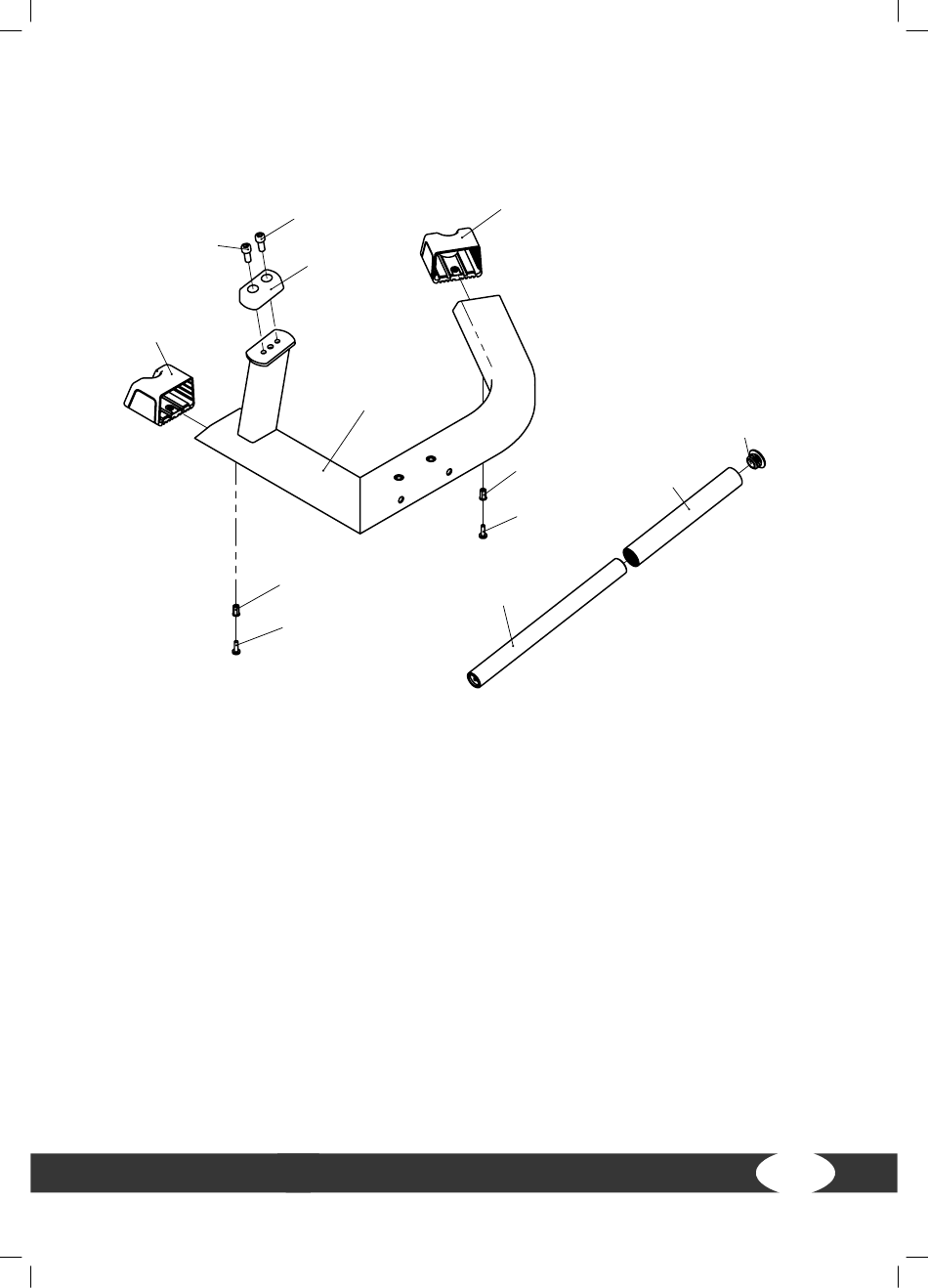

Exploded View and Parts List
Front Base Frame ASSY (11)
11-4
11-2
11-5
11-6
Part No.
Grade No.
11.1 IFP16041100
11.2 IFP12013300
11.3 RS17000400
11.4 GB70M10*25DHS20NL
11.5 GB17880.5M6*16.5DS17
11.6 GB818M6*20DHS2
Part No.
Grade No.
12.1 IFP16041200
12.2 IFP16053100
12.3 IFP16053000
11-4
11-3
11-1
Description
Front Base Frame
Bottom Plug
Bumper
Socket Head Cap Screw M10*25
Rivet Nut M6
U-nut M6*20
Description
Weight Horn
Plug Φ49*25
Sleeve Φ50*Φ42.1*350
12
11-2
Weight Horn ASSY (12)
11-5
12-3
11-6
12-1
12-2
QTY
1
2
1
2
2
2
QTY
1
1
1
