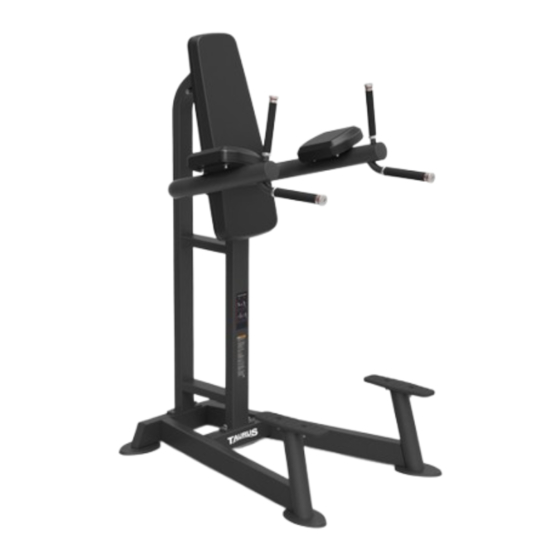

- Page 1 Assembly and Operating Instructions max. 180 kg ~ 60 Min. 75 kg L 119 | W 87 | H 167 FSTFPTT0215.01.01 Art. No. PTT0215 Taurus Elite Knee Lifting Machine...
- Page 2 Knee Lifting Machine...
- Page 3 Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY...
- Page 4 Knee Lifting Machine...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
- Page 8 GENERAL INFORMATION Technical Data Weight and Dimensions: Article weight (gross, incl. packaging): Parcel 1: 69 kg Parcel 2: 8.5 kg Article weight (net, excl. packaging): 66 kg Package dimensions (L x W x H) approx.: Parcel 1: 159 cm x 89 cm x 42.5 cm Parcel 2: 78 cm x 90 cm x 48.5 cm Set-up dimensions (L x W x H) approx.: 119 cm x 86.5 cm x 166.5 cm...
- Page 9 Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
- Page 10 Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.
- Page 11 ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
- Page 12 Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠...
- Page 13 Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Tighten the screws using the tool only when you are instructed to do so.
- Page 14 Step 2: Assembly of the Parallel Bars Bracket Assemble the parallel bars bracket (3) to the fl oor stander (2) by using two screws (17), four washers (26) and two lock nuts (30). Floor stander Parallel bars bracket Hex socket head cap screw M12*140 Plain washer Φ24*Φ13*2.5 4...
- Page 15 Step 3: Assembly of the Back Pad Assemble the back pad (46) to the fl oor stander (2) by using two screws (19), two spring washers (27) and two washers (24). Floor stander Hex socket head cap screw M8*75 Plain washer Φ16*Φ8.4*1.6 Spring washer Back pad...
- Page 16 Step 4: Assembly of Arm Pads and Pedals Assemble the two rubber covered pedals (6) to the foot frame (1) by using four screws (20), four washers (25) and four lock nuts (29). Assemble the two arm pads (47) to the parallel bars bracket (3) by using eight screws (45), eight spring washers (27) and...
- Page 17 TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
- Page 18 Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Screw connections Cushions...
- Page 19 RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.
- Page 20 The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Serial number: Brand / Category: Taurus / Vertical Knee Raise Model Name: Elite Knee Lifting Machine Article Number:...
- Page 21 Parts List Name Specifi cation Qty. Foot frame Floor stander Parallel bars bracket Rubber mat Plug Rubber covered pedal Handle grip Handle grip Round pipe plug Pipe plug Reed nut M6*Φ20.8*10 Reed nut M6*27.2*15 Hex socket head cap screw M12*140 Hex socket head cap screw M10*35 Hex socket head cap screw...
- Page 22 alumium ring plastic ring aluminum end cover alumium ring alumium ring plastic ring aluminum end cover Hexagon socket set screws with cone point M5*5 Spring washer Hex socket head cap screw M6*25 Hex socket head cap screw M8*30 Back pad Arm pad Knee Lifting Machine...
- Page 23 Exploded Drawing...
- Page 24 WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 25 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
- Page 26 CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� �� �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.co.uk �� technik@fi tshop.de �� ��...
- Page 27 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Fitshop is Europe’s largest specialist store for www.fi tshop.co.uk home fi tness equipment with currently over 70 www.fi tshop.de/blog stores and one of the world’s most renowned online mail order companies for fi tness equipment.
- Page 28 Notes Knee Lifting Machine...
- Page 29 Notes...
- Page 30 Notes Knee Lifting Machine...
- Page 32 Taurus Elite Knee Lifting Machine...
