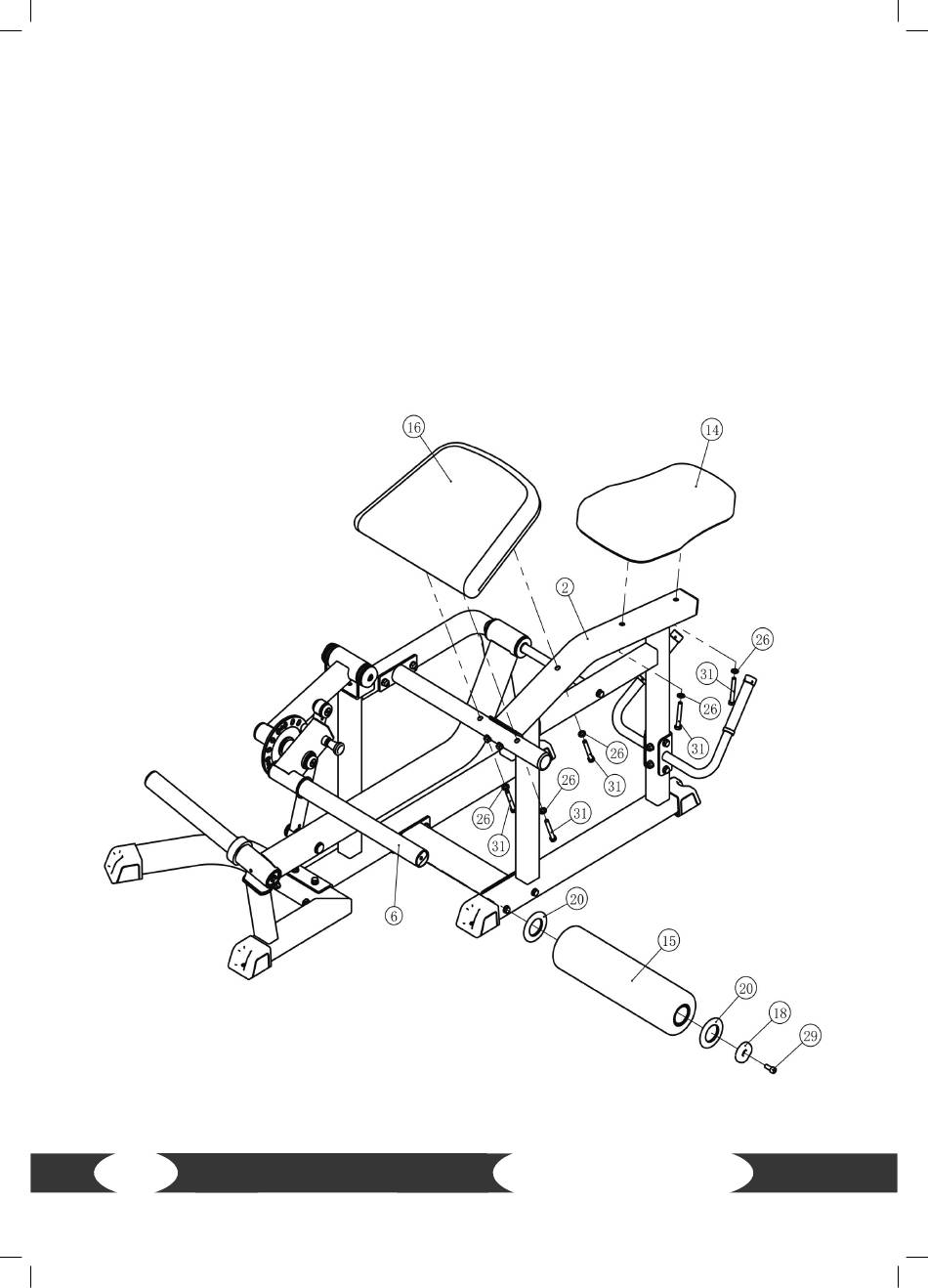

Step 5: Assembly of the Pads
1. Attach the chest pad (14) to the cushion frame (2) with two M10*75 bolts (31) and two
Ø11*Ø20*2 flat washers (26).
2. Attach the seat pad (16) to the cushion frame (2) with three M10*75 bolts (31) and three
Ø11*Ø20*2 flat washers (26).
3. Attach the foam assembly (15) to the foam frame (6) with two Ø90*Ø51.5*6 big collars (20), one
Ø60 cap (18) and one M10*25 screw (29).
4. Tighten all bolts, screws and nuts with the appropriate tools.
5. Check that all bolts, screws and nuts are properly tightened and retighten if needed.
→
The assembly is completed.
