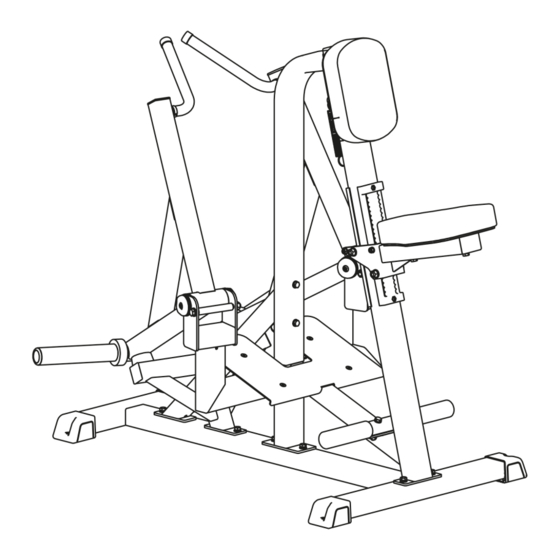

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 75 Min. 78 kg L 147 | W 102 | H 134 SESS7151.01.01 SKU: SESS7151 Taurus Pro Iso Seated Row...
- Page 2 Seated Row...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Seated Row...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Article weight (gross, incl. packaging) approx.: 85.5 kg Article weight (net, excl. packaging) approx.: 78 kg Packaging dimensions (L x W x H) approx.: 134.5 cm x 87.5 cm x 36 cm Set-up dimensions (L x W x H) approx.: 147 cm x 102 cm x 134 cm Maximum load weight: 2 x 100 kg... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 11 Item no. Description Quantity Bottom Frame ASSY Main Frame ASSY Middle Connection Frame ASSY Front Frame ASSY Left Arm Frame ASSY Right Arm Frame ASSY Seat Frame ASSY Weight Horn ASSY Circular Foot Frame ASSY Foot Support Plate Limit Sleeve Hardware Manual Supporting Sleeve...
-
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 13 Step 1: Assembly of the Middle Connection Frame and Main Frame Assemble the main frame (2) and the middle connection frame (3) to the bottom frame (1) with four bolts (24), two bolts (25), four spring washers (34), eight flat washers (32) and two lock nuts (29).
- Page 14 Step 2: Assembly of the Front Frame Assemble the front frame (4) to the main frame (2) and bottom frame (1) using two bolts (22), two bolts (24), two spring washers (34), six flat washers (32) and two lock nuts (29). Tighten the bolts and nuts with a wrench.
- Page 15 Step 3: Assembly of the Arm Frames and Weight Horns NOTICE If the shafts and barbell bars do not slide on or through easily, you might have to loosen some of the pre-assembled set-screws. Assemble the left arm frame (5) to the middle connection frame (3) with one axis (14), two screws (21), two caps (18), two circle rings (19) and two washers (17).
- Page 16 Step 4: Assembly of the Foot Support Plate, Circular Foot Frame and Seat Frame Assemble the foot support plate (10) to the middle connection frame (3) with four screws (27), four flat washers (33) and four lock nuts (30). Assemble the circular foot frame (9) to the main frame (2) with two bolts (23), two lock nuts (29) and four flat washers (32).
- Page 17 Step 5: Assembly of the Seat Pad and Chest Pad Assemble the seat pad (15) to the seat frame (7) with two bolts (22) and two flat washers (32). Assemble the chest pad (16) to the main frame (2) with two bolts (22) and two flat washers (32). Tighten the bolts and nuts with a wrench.
- Page 18 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack or respective weight horn. To load the weight horn, carefully grab one weight plate at a time with both hands.
-
Page 19: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 20: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;... -
Page 21: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 22: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Pro Iso Seated Row SKU: SESS7151 Seated Row... -
Page 23: Parts List
Parts List Overall Item No. Part No. Description Qty. IFP130201ASSY Bottom Frame ASSY IFP130202ASSY Main Frame ASSY IFP130203ASSY Middle Connection Frame ASSY IFP130204ASSY Front Frame ASSY IFP130205ASSY Left Arm Frame ASSY IFP130206ASSY Right Arm Frame ASSY IFP120105ASSY Seat Frame ASSY IFP120106ASSY Weight Horn ASSY FE971416ASSY... - Page 24 GB958DHS2 Flat WasherΦ9*Φ16*1.6 GB9310DHS12 Spring WasherΦ10 NBS8DHS Hex Key S=8 NBS5DHS Hex Key S=5 NBS4DHS Hex Key S=4 Bottom Frame ASSY (1) Grade No. Part No. Description Qty. IFP13020100 Bottom Frame IFP12013300 Foot Cap GB17880.5M6*16.5DS17 Rivet Nut M6 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Main Frame ASSY (2) Grade No.
- Page 25 Front Frame ASSY (4) Grade No. Part No. Description Qty. IFP13020400 Front Frame KPSFID3000 Plug 50.8 Ø CG600010300 Rubber Bumper Left Arm Frame ASSY (5) Grade No. Part No. Description Qty. IFP13020500 Left Arm Frame FE97203100 Grip STΦ31*Φ24*308 KPSFID3000 Plug 50.8 Ø...
- Page 26 Seat Frame ASSY (7) Grade No. Part No. Description Qty. IFP12010500 Seat Frame IFP12013600 Idler Wheel KPSFID2800 Plug Φ50.8*76.2 IFP12012100 Shoulder Bolt Φ12*96.5*M8 GB5780M8*105DHS20 Hex Head Bolt M8*105 GB9512DHS2 Flat WasherΦ13*Φ24*2.5 GB958DHS2 Flat WasherΦ9*Φ16*1.6 NM8DHS2 Nylon Lock Nut M8 Weight Horn ASSY (8) Grade No.
-
Page 27: Exploded Drawing
Exploded Drawing Overall... - Page 28 Main Frame ASSY (2) Bottom Frame ASSY (1) Middle Connection Frame ASSY (3) Front Frame ASSY (4) Seated Row...
- Page 29 Left Arm Frame ASSY (5) Right Arm Frame ASSY (6) Seat Frame ASSY (7) Circular Foot Frame ASSY (9) Weight Horn ASSY (8)
-
Page 30: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 31 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 32: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��... - Page 33 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
- Page 34 Notes Seated Row...
- Page 36 Taurus Pro Iso Seated Row...
