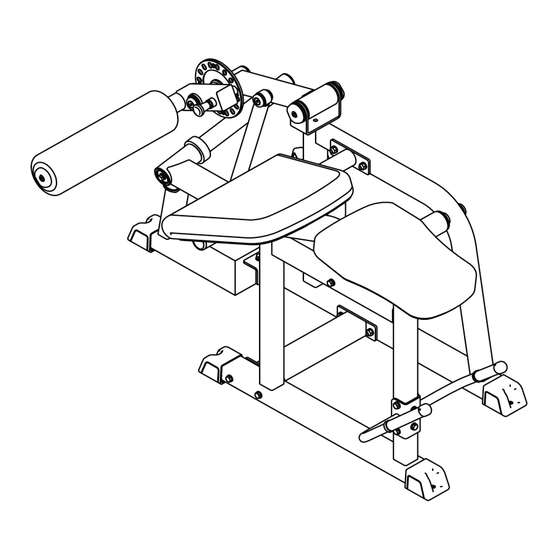

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 75 Min. 76 kg L 163 | W 121 | H 80 FSTFIFP1604.01.01 Art. No. TF-IFP1604 Taurus Prone Leg Curl IFP...
- Page 2 Prone Leg Curl...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Prone Leg Curl...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ࣑...
-
Page 8: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Article weight (gross, incl. packaging) approx.: 81.5 kg Article weight (net, excl. packaging) approx.: 75.9 kg Packaging dimensions (L x W x H) approx.: 111.5 cm x 88.5 cm x 29 cm Set-up dimensions (L x W x H) approx.: 162.3 cm x 120.2 cm x 79.8 cm Maximum user weight: 150 kg... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 12 Item IFP1604-BOX1 Part Item No. Description Main Frame ASSY Cushion Frame ASSY IFP16 Bottom Connection Frame IFP16 IFP1604- Item No. Description IFP1604-BOX1 Part Swing Frame ASSY IFP1604-BOX1 Part List IFP1604-BOX1 Part List IFP1604-BOX1 Part Lis Item No. Description Main Frame A Handle Frame ASSY Item No.
-
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 14 Step 1: Assembly of the Main Frame, Base Frame and Connection Frames Attach the front base frame (11) to the main frame (1) with two M10*100 bolts (33), four Ø11*Ø20*2 flat washers (26) and two M10 lock nuts (34) as well as two M10*30 bolts (30), two Ø10 spring washers (27) and two Ø11*Ø20*2 flat washers (26).
- Page 15 Step 2: Assembly of the Long Swing Frame Attach the long swing frame (10) and the long shaft (9) to the main frame (1) with one M10*25 screw (28), one Ø38*Ø10.5*8 end cap (17), one Ø31.8*Ø25.4*35 spacer (35), two Ø60*Ø26*3 big flat washers (24), two Ø30*2.25*3 adjustable rings (23) and one Ø25 retaining snap ring (25).
- Page 16 Step 3: Assembly of the Cushion Frame and Swing Frame NOTICE Do not tighten the bolts and nuts completely yet. Leave room for adjustment. Attach the cushion frame (2) to the bottom connection frame (3) with two M10*100 bolts (33), four Ø11*Ø20*2 flat washers (26) and two M10 lock nuts (34).
- Page 17 Step 4: Assembly of the Handle Frame, Foam Frame and Weight Horn Attach the handle frame (5) to the cushion frame (2) with a total of two M10*75 bolts (31), two M10*80 bolts (32), eight Ø11*Ø20*2 flat washers (26) and four M10 lock nuts (34). Attach the foam frame (6) to the swing frame (4) with one M10*25 screw (28) and one Ø38*Ø10.5*8 end cap (17).
- Page 18 Step 5: Assembly of the Pads Attach the chest pad (14) to the cushion frame (2) with two M10*75 bolts (31) and two Ø11*Ø20*2 flat washers (26). Attach the seat pad (16) to the cushion frame (2) with three M10*75 bolts (31) and three Ø11*Ø20*2 flat washers (26).
- Page 19 Adjustment and Exercise Instructions Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack. ࣑...
- Page 20 Pull pin Weight plate Weight horn Roller foam Prone Leg Curl...
-
Page 21: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 22: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 23: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;... -
Page 24: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 25: Ordering Spare Parts
The serial number of your equipment is unique. It’s located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Prone Leg Curl IFP Article Number: TF-IFP1604... -
Page 26: Parts List
Parts List Overall Item no. Part no. Description Qty. IFP160401ASSY Main Frame ASSY IFP160402ASSY Cushion Frame ASSY IFP16040300 Bottom Connection Frame IFP160404ASSY Swing Frame ASSY IFP160405ASSY Handle Frame ASSY IFP160510ASSY FOAM Frame ASSY IFP160407ASSY Connect Frame ASSY IFP160408ASSY Upper Connection Frame ASSY IFP16040900 Long Shaft IFP160410ASSY... - Page 27 GB5780M10*80DHS20 Hex Head Bolt M10*80 GB5780M10*100DHS20 Hex Head Bolt M10*100 NM10DHS2 Nylon Lock Nut M10 HVSE1113 Spacer Φ31.8*Φ25.4*35 NBS4DHS Key S=8 NBS6DHS Key S=6 NBS8DHS Key S=4 Main Frame ASSY (1) Grade No. Part no. Description Qty. IFP16040100 Main Frame GB17880.5M6*16.5DS17 Rivet Nut M6 IFP12013300...
- Page 28 Handle Frame ASSY (5) Grade No. Part no. Description Qty. IFP16040500 Handle Frame FE97031800 Grip STΦ31*Φ24*130 V39600 Aluminum Grip Cap V39500 Aluminum Grip Ring YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 Foam Frame ASSY (6) Grade No. Part no. Description Qty. IFP16051000 FOAM Frame SL70461800 Pin ASSY...
- Page 29 Front Base Frame ASSY (11) Grade No. Part no. Description Qty. 11.1 IFP16041100 Front Base Frame 11.2 IFP12013300 Bottom Plug 11.3 RS17000400 Bumper 11.4 GB70M10*25DHS20NL Socket Head Cap Screw M10*25 11.5 GB17880.5M6*16.5DS17 Rivet Nut M6 11.6 GB818M6*20DHS2 U-nut M6*20 Weight Horn ASSY (12) Grade No.
-
Page 30: Exploded Drawing
Exploded Drawing Prone Leg Curl... -
Page 31: Exploded View And Parts List
Exploded View and Parts List Cushion Frame ASSY (2) Main Frame ASSY (1) Exploded View and Parts List Swing Frame ASSY (4) Part No. Description Grade No. Handle Frame ASSY (5) IFP16040100 Main Frame GB17880.5M6*16.5DS17 Rivet Nut M6 IFP12013300 Bottom Plug GB818M6*20DHS2 U-nut M6*20 83004700... - Page 32 Exploded View and Parts List Foam Frame ASSY (6) Connect Frame ASSY (7) Connect Frame ASSY (7) Exploded View and Parts List Part No. Description Grade No. IFP16051000 FOAM Frame SL70461800 Pin ASSY Upper Connection Frame (8) Long Swing Frame ASSY (10) CWS134005-101 Bushing Φ45*Φ38*Φ32*25 IPB-XL0011900...
- Page 33 Exploded View and Parts List Front Base Frame ASSY (11) 11-2 11-4 11-4 11-3 11-2 Weight Horn ASSY (12) 11-1 12-2 11-5 12-3 11-6 11-5 12-1 11-6 Part No. Description Grade No. 11.1 IFP16041100 Front Base Frame 11.2 IFP12013300 Bottom Plug 11.3 RS17000400 Bumper...
-
Page 34: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 35 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 36: Contact
CONTACT �� �� �� TECHNIK TEKNIK OG SERVICE CUSTOMER CARE �� +49 4621 4210-900 80 90 16 50 +44 141 737 2249 or �� �� +44 141 876 3972 �� +49 4621 4210-945 +49 4621 4210-698 �� �� info@fitshop.dk customercare@fitshop.co.uk ��... - Page 37 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Fitshop is Europe’s largest specialist store for www.fitshop.co.uk home fitness equipment with currently over 70 www.fitshop.de/blog stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/fitshop.co.uk web shops in the respective national language or have their desired equpiment assembled on...
- Page 38 Notes Prone Leg Curl...
- Page 40 Taurus Prone Leg Curl IFP...
