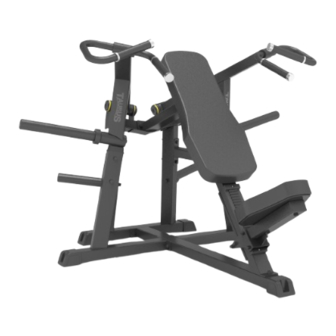

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 120 Min. 87 kg L 158 | W 152 | H 107 SESS715901.01 IFP1101 SKU: SESS7159 SEATED SHOULDER PRESS Taurus Pro Seated Shoulder Press OWNER'S MANUAL...
- Page 2 Pro Seated Shoulder Press...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Pro Seated Shoulder Press...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. Pro Seated Shoulder Press...
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Article weight (gross, incl. packaging) approx.: 97.8 kg Article weight (net, excl. packaging) approx.: 87 kg Packaging dimensions (L x W x H) approx.: 138.5 cm x 87.5 cm x 38 cm Set-up dimensions (L x W x H) approx.: 157.9 cm x 152 cm x 106.9 cm Maximum user weight: 150 kg... -
Page 8: Personal Safety
Be aware that if adjustment devices are left protruding, they may impede the user’s movement. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. Pro Seated Shoulder Press... -
Page 9: Important Safety In
Important Safety In Set-Up Place Personal Safety During Assembly ⚠ WARNING Do not place the equipment in main corridors or escape routes. Read each step in the assembly instructions and CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ Do not skip ahead. -
Page 10: Assembly
Seat Pad Seat Pad Frame ASSY Axis Right Arm Frame ASSY Rubber Buffer Left Arm Frame ASSY Extension Spring Right Support Frame ASSY Plastic Sleeve Left Support Frame ASSY Support Sleeve Right Connect Frame Hardware Pack Manual Pro Seated Shoulder Press... - Page 11 Item Hardware Manual Pack IFP1101-BOX1 Pa IFP1101-BOX1 Part List Item No. Description Item No. Description √ Bottom Frame ASSY Bottom Frame ASSY Back Frame ASSY Back Frame ASSY Rear Frame ASSY IFP1101-BOX1 Part List Rear Frame ASSY...
-
Page 12: Assembly
When all parts have been accounted for, continue on. for ordering spare parts. Tools Required Ratchet Wrench and Socket Ratchet Wrench and Socket Adjustable Wrench Adjustable Wrench Rubber Mallet Rubber Mallet Hex Key Wrench Set Hex Key Wrench Set Phillips Screwdriver Phillips Screwdriver Pro Seated Shoulder Press... - Page 13 Assembly STEP 1 Step 1: Assembly of the Main Frame Parts Attach the Back Frame ASSY (#2), the Rear Frame ASSY (#3), the Right Surpport Frame ASSY (#8), the Left Surpport Frame ASSY (#9), the Right Connect Frame (#10), the Left NOTICE Connect Frame (#11) to the Bottom Frame ASSY (#1) using: Do not tighten screws, bolts and nuts completely yet.
- Page 14 (27), four Φ11*Φ20*2 flat washers (30) and four Φ10 spring washers (33). four Φ11*Φ20*2 Flat Washer (#30) Tighten the bolts and nuts with the appropriate tools. four Φ10 Spring Washer (#33) Note: Wrench Tighten Bolts and Nylon Lock Nuts. Pro Seated Shoulder Press...
- Page 15 Assembly STEP 3 Step 3: Assembly of the Seat Pad and Back Pad 1. Attach the Seat Pad Frame ASSY (#5) to the Main Frame ASSY (#2) using: Attach the seat pad frame (5) to the main frame (2) using one Φ15*Φ9*82 support sleeve (19), one Φ15*Φ9*82 Support sleeve (#19) one Φ19*Φ13*80 plastic sleeve (18), one Φ12*96.5*M8 bolt (23), one M8*105 bolt (28), one one Φ19*Φ13*80 Plastic sleeve (#18)
- Page 16 Adjust the Seat Pad to the desired position. Press the handles straight out. Pause slightly then slowly return to the starting position. Back Pad Seat Pad Adjustable Support Pro Seated Shoulder Press...
-
Page 17: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 18: Troubleshooting, Care And Maintenance
Solution Squeaking & cracking Screw connections loosened Check lubricate screw noises or too tight connections* Uneven ground Align unit Unit wobbles Loose screw connections Tighten screw connections * With a grease-free silicone oil or silicone spray. Pro Seated Shoulder Press... -
Page 19: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;... -
Page 20: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat tricep and curl bar triceps rope Pro Seated Shoulder Press... -
Page 21: Ordering Spare Parts
Enter the serial number in the appropriate field. Serial number: IFP1101 Brand / Category: SEATED SHOULDER PRESS Taurus / multi gym OWNER'S MANUAL CAUTION! Read all precautions and instructions in this manual before Model Name: using this equipment. Taurus Pro Seated Shoulder Press SKU: SESS7159... -
Page 22: Parts List
Hex Head Bolt M10*100 GB5780M10*75DHS20 Hex Head Bolt M10*75 GB5781M10*30DHS20 Hex Head Bolt M10*30 GB5780M8*105DHS20 Hex Head Bolt M8*105 GB70M10*30DHS20NL Socket Head Cap Screw M10*30 GB9510DHS2 Flat Washer Φ11*Φ20*2 GB9512DHS2 Flat Washer Φ13*Φ24*2.5 GB958DHS2 Flat Washer Φ9*Φ16*1.6 Pro Seated Shoulder Press... - Page 23 GB9310DHS12 Spring Washer Φ10 NM10DHS2 Nylon Lock Nut M10 NM8DHS2 Nylon Lock Nut M8 Bottom Frame ASSY (1) Grade No. Part no. Description Qty. IFP11010100 Bottom Frame GB17880.5M6*16.5DS17 Rivet Nut M6 IFP12013300 Ground Plug GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Back Frame ASSY (2) Grade No.
- Page 24 Grade No. Part no. Description Qty. IFP11010600 Right Arm Frame 026-01PL0235-31 Grip STΦ36*Φ29*177.8 V39000 Aluminum Grip Cap Φ32 V38900 Aluminum Grip Ring Φ32 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 GB2766205-2ZC3 Bearing 6205 GB77M8*8DHS2 Socket Set Screw M8*8 Pro Seated Shoulder Press...
- Page 25 Left Arm Frame ASSY (7) Grade No. Part no. Description Qty. IFP11010700 Left Arm Frame 026-01PL0235-31 Grip STΦ36*Φ29*177.8 V39000 Aluminum Grip Cap Φ32 V38900 Aluminum Grip Ring Φ32 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 GB2766205-2ZC3 Bearing 6205 GB77M8*8DHS2 Socket Set Screw M8*6 Right Support Frame ASSY (8) Grade No.
-
Page 26: Exploded View And Parts List
Exploded View and Parts List Exploded Drawing Overall Pro Seated Shoulder Press... - Page 27 Exploded View and Parts List Bottom Frame ASSY Back Frame ASSY Exploded View and Parts List Rear Frame ASSY Long Weight Horn ASSY Part No. Description Grade No. IFP11010100 Bottom Frame GB17880.5M6*16.5DS17 Rivet Nut M6 IFP12013300 Ground Plug GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Part No.
- Page 28 Flat Washer Φ9*Φ16*1.6 NM8DHS2 Nylon Lock Nut M8 Part No. Description Grade No. 12.1 IFP16131600 Weight Horn 12.2 IFP12013400 Sleeve Φ50*Φ42.1*250 12.3 IFP12013500 Plug Φ49*Φ37*25 Pro Seated Shoulder Press Part No. Description Grade No. IFP11010600 Right Arm Frame 026-01PL0235-31 Grip STΦ36*Φ29*177.8...
- Page 29 Exploded View and Parts List Left Arm Frame ASSY Exploded View and Parts List Right Surpport Frame Left Surpport Frame ASSY ASSY Part No. Description Grade No. IFP11010700 Left Arm Frame 026-01PL0235-31 Grip STΦ36*Φ29*177.8 V39000 Aluminum Grip Cap Φ32 V38900 Aluminum Grip Ring Φ32 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2...
-
Page 30: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 31 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 32: Contact
Öffnungszeiten entnehmen Öffnungszeiten entnehmen Sie unserer Homepage. Sie unserer Homepage. Please find a detailed overview including address and opening hours for all stores of Powerhouse Fitness in the UK on the following website: www.powerhouse-fitness.co.uk/storelocator Pro Seated Shoulder Press... - Page 33 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
- Page 34 Notes Pro Seated Shoulder Press...
- Page 36 Taurus Pro Seated Shoulder Press...
