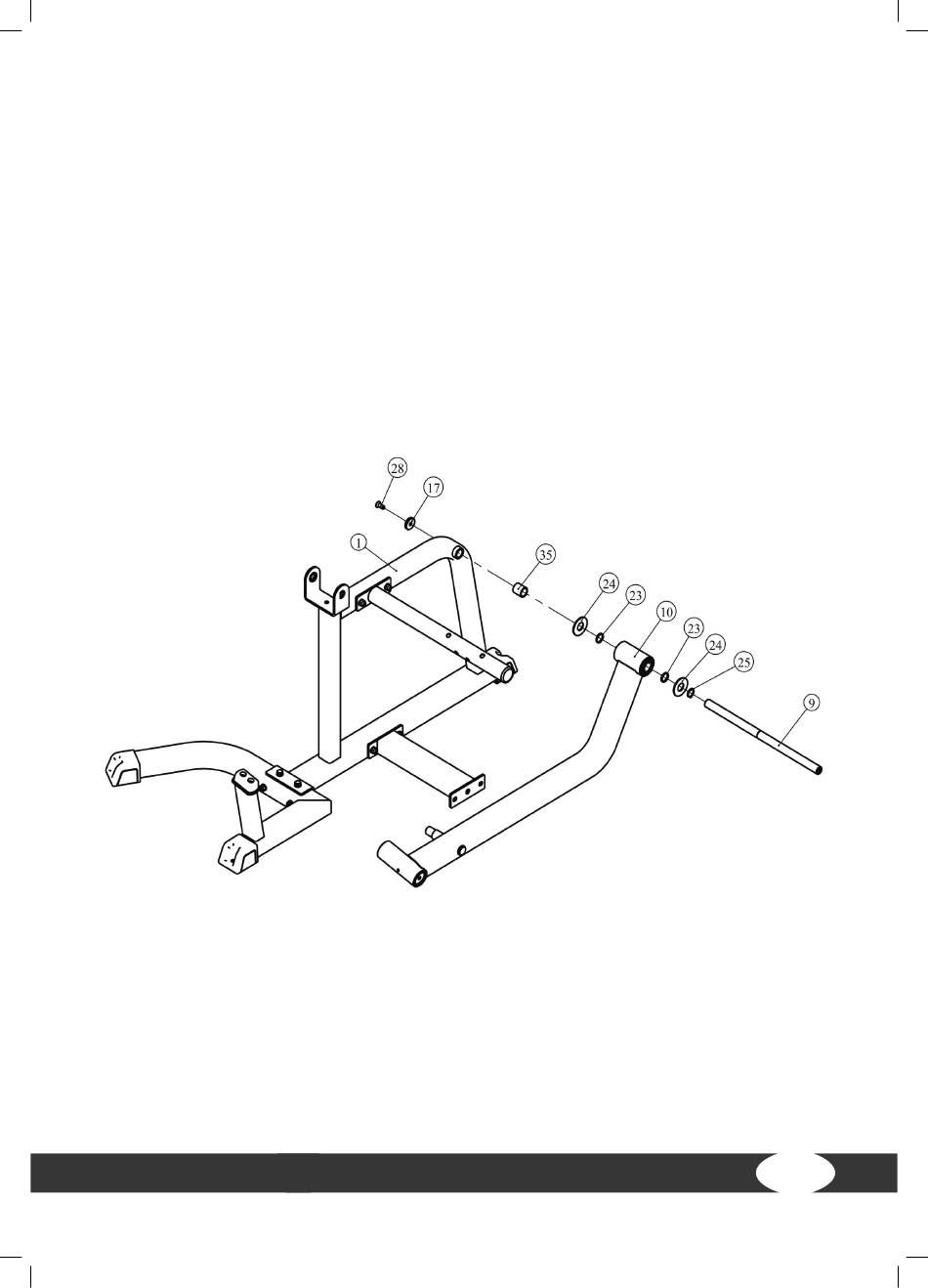

Step 2: Assembly of the Long Swing Frame
1. Attach the long swing frame (10) and the long shaft (9) to the main frame (1) with one M10*25
screw (28), one Ø38*Ø10.5*8 end cap (17), one Ø31.8*Ø25.4*35 spacer (35), two Ø60*Ø26*3 big
flat washers (24), two Ø30*2.25*3 adjustable rings (23) and one Ø25 retaining snap ring (25).
2. Tighten the screw with the appropriate tool.
