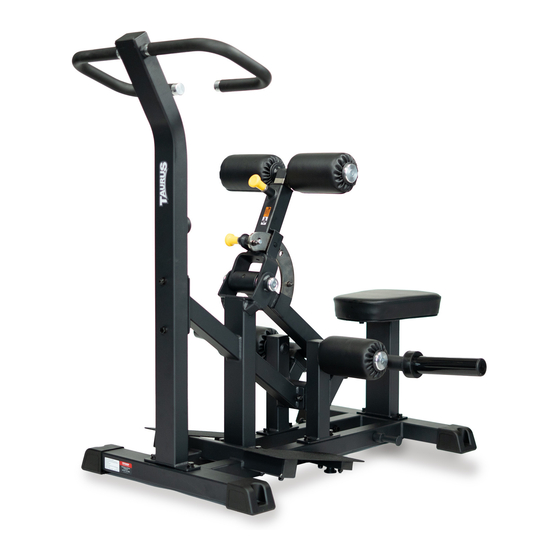

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 45 Min. 68 kg L 122 | W 110 | H 117 FSUKTFIFP1616.01.01 SKU: TF-IFP1616 Taurus Pro Vertical Hip Thrust...
- Page 2 Vertical Hip Thrust...
- Page 3 Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing...
- Page 4 Vertical Hip Thrust...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ࣑...
- Page 8 GENERAL INFORMATION Technical Data Weight and dimensons: Article weight (gross, including packaging): 75 kg Article weight (net, without packaging): 67.5 kg Packaging dimensions (L x W x H): 125.5 cm x 82.5 cm x 34 cm Set-up dimensions (L x W x H): 122 cm x 109.8 cm x 116.5 cm Maximum user weight: 150 kg...
- Page 9 Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
- Page 10 Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.
- Page 11 ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
- Page 12 Item no. Description Quantity Bottom Support Frame ASSY Handle Frame ASSY Support Frame Bumper Bracket ASSY Swing Frame ASSY Foam Support Frame ASSY Seat Support Shaft Seat Pad Foam Hardware Owner’s Manual Vertical Hip Thrust...
- Page 13 Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g.
- Page 14 Step 1: Assembly of the Frames Assemble the handle frame (2) to the bottom support frame (1) with two bolts (18), two spring washers (20) and two flat washers (22). Assemble the support frame (3) to the handle frame (2) with two bolts (19), four flat washers (22) and two nuts (24).
- Page 15 Step 2: Assembly of the Swing Frame NOTICE Please refer to the illustration below for the correct assembly. Connect the swing frame (5) to the foam support frame (6). Assemble the swing frame (5) to the support frame (3) with: one shaft (8) two aluminum caps (12) one rubber sleeve (14)
- Page 16 Step 3: Assembly of the Seat and Foams Attach two foams (10) to the bumper bracket (4) with four plastic caps (13), two aluminum caps (11) and two screws (17). Attach two foams (10) to the foam support frame (6) with four plastic caps (13), two aluminum caps (11) and two screws (17).
- Page 17 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack or respective storage horns. NOTICE The weight horns are compatible with 50mm weight plates with a maximum external diameter of 450 mm.
- Page 18 Adjustment and Exercise Foam Adjustment To adjust the foam lenght, pull the locking pin II and adjust to your desired position. Release the locking pin II and make sure the pin is fully engaged in the adjustment hole. To adjust the foam angle, pull the locking pin I and adjust to your desired position. Release the locking pin II and make sure the pin is fully engaged in the adjustment hole.
- Page 19 STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
- Page 20 TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
- Page 21 Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;...
- Page 22 RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.
- Page 23 The serial number of your equipment is unique. It’s located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Taurus Pro Verical Hip Thrust SKU: TF-IFP1616...
- Page 24 Parts List Overall Name Specification Qty. IFP161601ASSY Bottom Support Frame ASSY IFP161602ASSY Handle Frame ASSY IFP16160300 Support Frame BB-SHT04ASSY Bumper Bracket ASSY BB-SHT05ASSY Swing Frame ASSY IFP161604ASSY Foam Support Frame ASSY BB-SHT0800 Seat Support BB-SHT1200 Shaft IT93041200V3 Seat Pad IF81023500V6 Foam V31900 Aluminum Cap Φ50.8*Φ10.3*8...
- Page 25 Bottom Support Frame Sub ASSY Grade No. Part No. Description Qty. 1.1.1 IFP16160100 Bottom Frame 1.1.2 GB17880.5M6*16.5DS17 Rivet Nut M6 1.1.3 KSPFID3000 Tube Plug □50.8 1.1.4 BNH0008 Tube Plug □25*50 1.1.5 IFP12013300 Foot Cap 1.1.6 DC135K34000 Adjustable Foot Plate 1.1.7 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Bottom Support Frame ASSY...
- Page 26 Bumper Bracket ASSY Grade No. Part No. Description Qty. BB-SHT0400 Bumper Bracket GB70M10*20DHS20NL Socket Head Cap Screw M10*20 KPSFID3000 Plug □50.8 RS17000400 Bumper Swing Frame ASSY Grade No. Part No. Description Qty. BB-SHT0500 Swing Frame BB-SHT1100 Lining Board BB-SHT1500 Weight Horn Sleeve HF985A1500 Rubber Bumper IFP12013500...
- Page 27 Exploded Drawing Overall...
- Page 28 Bottom Support Frame Sub ASSY Bottom Support Frame ASSY Part No. Description Grade No. 1.1.1 IFP16160100 Bottom Frame 1.1.2 GB17880.5M6*16.5DS17 Rivet Nut M6 1.1.3 KSPFID3000 Tube Plug □50.8 1.1.4 BNH0008 Tube Plug □25*50 1.1.5 IFP12013300 Foot Cap 1.1.6 DC135K34000 Adjustable Foot Plate 1.1.7 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20...
- Page 29 Bumper Bracket ASSY Description Swing Frame ASSY Handle Frame Tube Plug □50.8*76.2 Aluminum Grip Ring Φ25.4 Aluminum Grip Cap Φ25.4 Grip Bumper Socket Set Screw 10-32UNF*3.2 Description Bumper Bracket Foam Support Frame ASSY Socket Head Cap Screw M10*20 Plug □50.8 Bumper Part No.
- Page 30 WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 31 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
- Page 32 CONTACT �� TECHNIK �� TEKNIK OG SERVICE �� CUSTOMER CARE �� +49 4621 4210-900 80 90 16 50 +44 141 737 2249 or �� �� +44 141 876 3972 �� +49 4621 4210-945 +49 4621 4210-698 �� �� info@fitshop.dk customercare@fitshop.co.uk ��...
- Page 33 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Fitshop Group is Europe’s largest specialist for https://www.fitshop.co.uk/ home fitness equipment with currently 70 stores www.fitshop.co.uk/blog/ and one of the world’s most renowned online mail order companies for fitness equipment. Fitshop UK is part of the Fitshop Group. Private www.facebook.com/fitshop.co.uk customers order via the 25 web shops in the respective national language or have their...
- Page 34 Notes Vertical Hip Thrust...
- Page 36 Taurus Pro Vertical Hip Thrust...
