Assembly and Operating Instructions
max. 150 kg
~ 75 Min.
78 kg
L 162 | W 125 | H 104
SESS7153.01.01
SKU: SESS7153
TF-

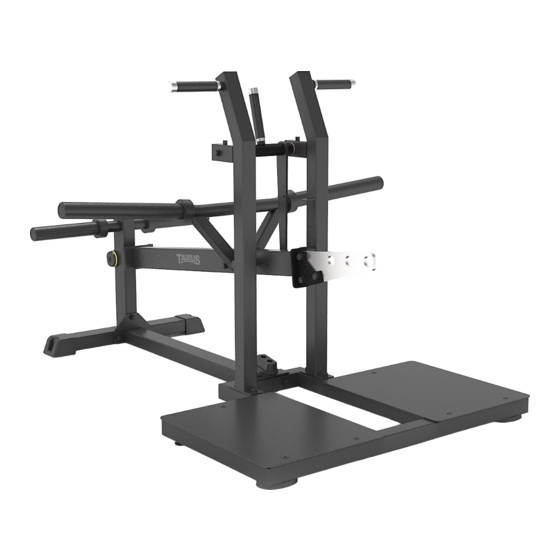

Taurus Pro
Iso Belt Squat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Iso Belt Squat and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Taurus Pro Iso Belt Squat

  • Page 1 Assembly and Operating Instructions max. 150 kg ~ 75 Min. 78 kg L 162 | W 125 | H 104 SESS7153.01.01 SKU: SESS7153 Taurus Pro Iso Belt Squat...
  • Page 2 Belt Squat...
  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing...
  • Page 4 Belt Squat...
  • Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
  • Page 7: General Information

    GENERAL INFORMATION Technical Data Weight and Dimensions Article weight (gross, incl. packaging) approx.: 84 kg Article weight (net, excl. packaging) approx.: 77.5 kg Packaging dimensions (L x W x H) approx.: 128 cm x 77 cm x 28 cm Set-up dimensions (L x W x H) approx.: 162 cm x 125 cm x 104 cm Maximum user weight: 150 kg...
  • Page 8: Personal Safety

    Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
  • Page 9: Set-Up Place

    Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.
  • Page 10: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 11 Item IFP1615-BOX1 Part List IFP1615-BO IFP1615-BO Item No. Description Item No. Description Item √ Item No. Description Item No Item No Ground Frame ASSY Ⅱ Ground Frame ASSY Ⅱ Ground Frame ASSY Ⅱ Connecting Frame ASSY Connecting Frame ASSY Connecting Frame ASSY Rear Stand Frame ASSY Rear Stand Frame ASSY Rear Stand Frame ASSY...
  • Page 12: Assembly

    Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g.
  • Page 13 Step 1: Assembly of the Ground Frame, Connecting Frame and Rear Stand Frame NOTICE Do not tighten the bolts completely yet. Leave room for adjustments. Attach the connecting frame (2) to the ground frame (1) with two M10*75 bolts (18), four Ø11*Ø20*2 flat washers (22) and two M10 lock nuts (24) as well as two M10*30 bolts (17), two Ø10 spring washers (21) and two Ø11*Ø20*2 flat washers (22).
  • Page 14 Step 2: Assembly of the Swing Frame and Hanging Plate NOTICE Do not tighten the bolts completely yet. Leave room for adjustments. Attach the swing frame (4) to the rear stand frame (3) with one Ø25*133*M10 shaft (10), two Ø62*Ø10.5*3 big washers (14), two Ø62.5*5 circle rings (13), two Ø60 caps (12) and two M10*30 screws (15).
  • Page 15 Step 3: Assembly of the Handle Frames and Limit Frame NOTICE Do not tighten the bolts completely yet. Leave room for adjustments. Attach the limit frame (8) to the handle frames 1 & 2 (6 & 7) with one Ø25.4*324 shaft (9), two Ø11*Ø20*2 flat washers (22), two Ø10 spring washers (21) and two M10*30 screws (17).
  • Page 16 Step 4: Assembly of the Weight Plate Frame Attach the weight plate frame (5) to the swing frame (4) with two M10*100 bolts (19), four Ø11*Ø20*2 flat washers (22) and two M10 lock nuts (24) from the top. Fix the weight plate frame (5) to the swing frame (4) with two M10*80 bolts (29), four Ø11*Ø20*2 flat washers (22) and two M10 lock nuts (24) from the side.
  • Page 17 Step 5: Adjustment and Exercise Instructions, Part 1 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack or respective storage horns. To load the weight horn, carefully grab one weight plate at a time with both hands.
  • Page 18 Step 5: Adjustment and Exercise Instructions, Part 2 NOTICE The weight horns are compatible with 50mm weight plates. Weight plates and weight collars are not included in the scope of delivery. Do not load more than 175 kg on each weight horn (training). Do not load more than 100 kg on each weight horn (storage).
  • Page 19: Storage And Transport

    STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
  • Page 20: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Safety can only be guaranteed if you check the equipment regularly for wear and damage. Replace damaged or worn components immediately.
  • Page 21: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Legend: C = clean;...
  • Page 22: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.
  • Page 23: Ordering Spare Parts

    The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Pro Iso Belt Squat SKU: SESS7153...
  • Page 24: Parts List

    Parts List Overall Item No. Part no. Description Qty. IFP161501ASSY Ground Frame ASSY II Connecting Frame ASSY IFP161502ASSY IFP161503ASSY Rear Stand Frame ASSY IFP161504ASSY Swing Frame ASSY Weight Plate Frame ASSY IFP161505ASSY IFP161506ASSY Handle Frame1 ASSY IFP161507ASSY Handle Frame2 ASSY IFP161508ASSY Limit Frame ASSY IFP16152200...
  • Page 25 Ground Frame ASSY (1) Grade No. Part no. Description Qty. IFP16150100ASSY Ground Frame IFP16152100 Pedal CNLM8*20DHS20NL Flat Head Cap Screw M8*20 Connecting Frame ASSY (2) Grade No. Part no. Description Qty. IFP16150200 Connecting Frame RS17000400 Rubber Mat83*44.5*25.4 GB70M10*20DHS20NL Socket Head Cap Screw M10*20 Rear Stand Frame ASSY (3) Grade No.
  • Page 26 Weight Plate Frame ASSY (5) Grade No. Part no. Description Qty. IFP16150500 Weight Plate Frame HF985A1500 Rubber Mat IFP17113400 Long Weight Horn Sleeve IFP16053100 Plug Φ49 Handle Frame 1 ASSY (6) Grade No. Part no. Description Qty. IFP16150600 Handle Frame1 V39500 Aluminium Grip Ring Φ25.4 V39600...
  • Page 27: Exploded Drawing

    Exploded View and Parts List Exploded Drawing Overall...
  • Page 28 Exploded View and Parts List Connecting Frame ASSY (2) Ground Frame ASSY Ⅱ (1) Exploded View and Parts List Weight Plate Frame ASSY (5) Part No. Description Grade No. IFP16150100ASSY Ground Frame IFP16152100 Pedal CNLM8*20DHS20NL Flat Head Cap Screw M8*20 Part No.
  • Page 29 Exploded View and Parts List Rear Stand Frame ASSY (3) Swing Frame ASSY (4) Exploded View and Parts List Part No. Description Grade No. IFP16150300 Rear Stand Frame Handle Frame 1 ASSY (6) Handle Frame 2 ASSY (7) IFP12013300 Bottom Foot Plug IFP12013400 Weight Horn Sleeve IFP12013500...
  • Page 30: Warranty

    WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 31 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
  • Page 32: Contact

    CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��...
  • Page 33 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
  • Page 34 Notes Belt Squat...
  • Page 36 Taurus Pro Iso Belt Squat...
