Step 4:

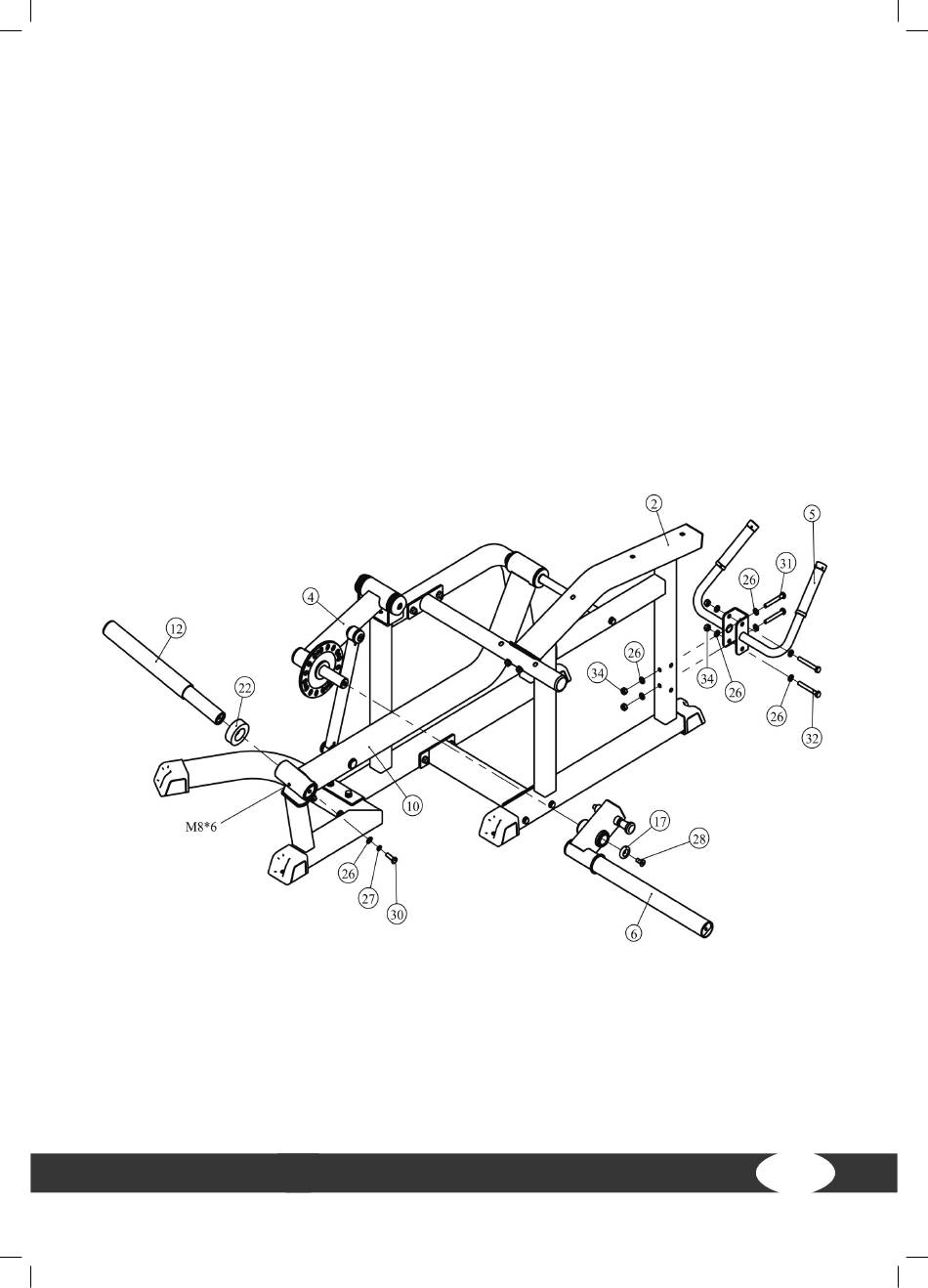

Assembly of the Handle Frame, Foam Frame and Weight Horn
1.
Attach the handle frame (5) to the cushion frame (2) with a total of two M10*75 bolts (31), two
M10*80 bolts (32), eight Ø11*Ø20*2 flat washers (26) and four M10 lock nuts (34).
2.
Attach the foam frame (6) to the swing frame (4) with one M10*25 screw (28) and one
Ø38*Ø10.5*8 end cap (17).
3.
Loosen the M8*6 screw and attach the weight horn (12) and the Ø76*Ø42*25 bumper (22)
to the long swing frame (10) with one M10*30 bolt (30), one Ø10 spring washer (27) and one
Ø11*Ø20*2 flat washer (26).
4.
Retighten the M8*6 screw to prevent the weight horn (12) from turning.
5.
Tighten bolts, screws and nuts with the appropriate tools.
