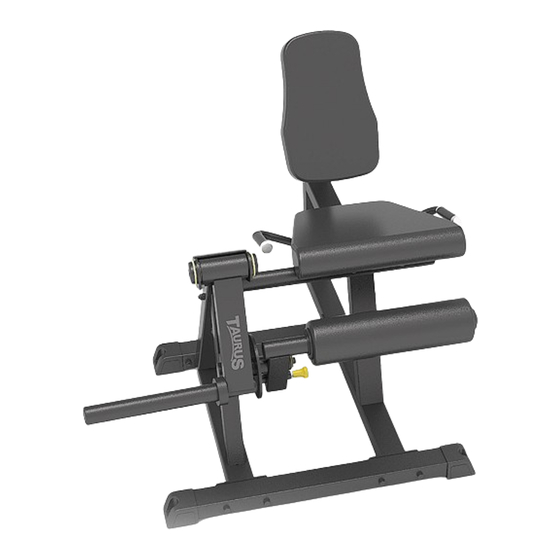

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 90 Min. 64 kg L 125 | W 118 | H 100 SESS7157.01.01 SKU: SESS7157 Taurus Pro Seated Leg Extension...
- Page 2 Seated Leg Extension...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Seated Leg Extension...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Article weight (gross, incl. packaging) approx.: 71 kg Article weight (net, excl. packaging) approx.: 63.4 kg Packaging dimensions (L x W x H) approx.: 117 cm x 82.5 cm x 33 cm Set-up dimensions (L x W x H) approx.: 124.6 cm x 117.3 cm x 99.5 cm Maximum user weight: 150 kg... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 11 Item No. Description Quantity Front Ground Sticking Pipe ASSY Main Frame ASSY Rear Ground Sticking Frame ASSY Support Frame ASSY Swing Frame ASSY Cross Connection Frame ASSY Left Handle Frame ASSY Back Pad Frame ASSY Right Handle Frame ASSY Foam Frame ASSY Back Pad Hardware Manual...
-
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 13 Step 1: Assembly of the Main Frame Parts NOTICE Do not tighten bolts and nuts completely yet. Leave room for adjustments. Attach the main frame (2) and the support frame (4) to the front ground sticking pipe (1) with a total of four M10*100 bolts (19), eight Ø11*Ø20*2 flat washers (26) and four M10 lock nuts (28).
- Page 14 Step 2: Assembly of the Back Pad Frame and Handle Frames Attach the back pad frame (8) to the main frame (2) with one M10*30 bolt (22). Attach the left and right handle frames (7 & 9) to the main frame (2) with two M10*100 bolts (19), four Ø11*Ø20*2 flat washers (26) and two M10 lock nuts (28).
- Page 15 Step 3: Assembly of the Swing Frame and Foam Frame Attach the swing frame (5) to the support frame (4) with one shaft (14), two Ø62*Ø10.5*3 big washers (17), two Ø62.5*5 circle rings (16), two Ø60 caps (14) and two M10*25 screws (24). Attach the foam frame (10) to the swing frame (5) with one M10*25 bolt (23), one Ø10 spring washer (27) and one Ø11*Ø38*2 flat washer (25).
- Page 16 Step 4: Assembly of the Pads Attach the back pad (11) to the back pad frame (8) with two M10*30 bolts (22) and two Ø11*Ø20*2 flat washers (26). Attach the seat pad (12) to the main frame (2) with two M10*80 bolts (20) and two Ø11*Ø20*2 flat washers (26).
- Page 17 Step 5: Adjustment and Exercise Instructions, Part 1 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack. To load the weight horn, carefully grab one weight plate at a time with both hands.
- Page 18 Step 5: Adjustment and Exercise Instructions, Part 2 Back Pad Adjustment The back pad should be adjusted so that you sit with your back flat against the pad. To adjust the back pad, pull the adjustable support and adjust to your desired position. Release the pin and make sure the pin is fully engaged in the adjustment hole.
- Page 19 Weight Plate Weight Horn Adjustable Support Weight Plate Foam Adjustable Support Pin...
-
Page 20: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 21: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Safety can only be guaranteed if you check the equipment regularly for wear and damage. Replace damaged or worn components immediately. -
Page 22: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Screw connections Cushions Legend: C = clean;... -
Page 23: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 24: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Pro Seated Leg Extension SKU: SESS7157 Seated Leg Extension... -
Page 25: Parts List
Parts List Overall Item No. Part no. Description Qty. IFP160501ASSY Front Ground Sticking Pipe ASSY IFP160502ASSY Main Frame ASSY IFP160503ASSY Rear Ground Sticking Frame ASSY IFP160504ASSY Support Frame ASSY IFP160505ASSY Swing Frame ASSY IFP160506ASSY Cross Connection Frame ASSY IFP160507ASSY Left Handle Frame ASSY IF930508ASSY Back Pad Frame ASSY IFP160509ASSY... - Page 26 Front Ground Sticking Pipe ASSY (1) Grade No. Part no. Description Qty. IFP16050100 Front Ground Sticking Pipe IFP12013300 Ground Plug GB17880.3M6*15DS17 Rivet Nut M6*15 GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 Main Frame ASSY (2) Grade No. Part no. Description Qty.
- Page 27 Swing Frame ASSY (5) Grade No. Part no. Description Qty. IFP16050500 Swing Frame IF93051500 Lining Board GB2766205-2ZC3 Deep Groove Ball Bearing Φ25*Φ52*15 IFP16053000 Weight Horn Sleeve IFP16053100 Plug Φ49 IFP16053200 Plug Φ42 HF985A1500 Bumper B10009900 Plug Φ50.8 GB819M6*10N19 Philips Countersunk Screw M6*10 Cross Connection Frame ASSY (6) Grade No.
- Page 28 Right Handle Frame ASSY (9) Grade No. Part no. Description Qty. IFP16050900 Right Handle Frame FE97031800 Grip STΦ31*Φ24*140 V39600 Aluminum Grip Cap Φ32 V39500 Aluminum Grip Ring Φ32 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 Foam Frame ASSY (10) Grade No. Part no. Description Qty.
-
Page 29: Exploded Drawing
Exploded View and Parts List Exploded Drawing Overall... - Page 30 Exploded View and Parts List Front Ground Sticking Pipe ASSY (1) Main Frame ASSY (2) Exploded View and Parts List Rear Ground Sticking Frame ASSY (3) Part No. Description Grade No. IFP16050100 Front Ground Sticking Pipe IFP12013300 Ground Plug GB17880.3M6*15DS17 Rivet Nut M6*15 Support Frame ASSY (4) GB818M6*20DHS2...
- Page 31 ing Frame ASSY (5) Swing Frame ASSY (5) 5-6 5-2 5-6 5-2 Cross Connection Frame ASSY (6) Cross Connection Frame ASSY (6) Exploded View and Pa Left Handle Frame ASSY (7) Part No. Description ade No. IFP16050500 Swing Frame Part No. Description Grade No.
- Page 32 Back Pad Frame ASSY (8) ASSY (9) Right Handle Frame ASSY (9) Description Left Handle Frame Grip STΦ31*Φ24*140 Aluminum Grip Cap Φ32 Aluminum Grip Ring Φ32 Socket Set Screw 10-32UNF*3.2 Description Back Pad Support Foam Frame ASSY (10) Foam Frame Plug □30*70 10-4 10-4...
-
Page 33: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 34 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
