Step 9
Make sure you have prepared the door sensors for
1
Peel off the paper layer of the
adhesives from the back of the
wired sensor (AA).
3
Close the door. Before you peel off the
paper layer of the adhesives from the
sensor magnet (AB), align the arrow with
the wired sensor (AA). Install (AB) on to
door frame.
NOTE: The arrows must be aligned or as closed as possible (less than 3/4"). If needed,
adjust the position of the sensor magnet using provided foam pads to ensure the Lockly
logo blinks red when door opens or closes.
installation according to Step 6
2-3/4"
70mm
2-3/8"
60mm

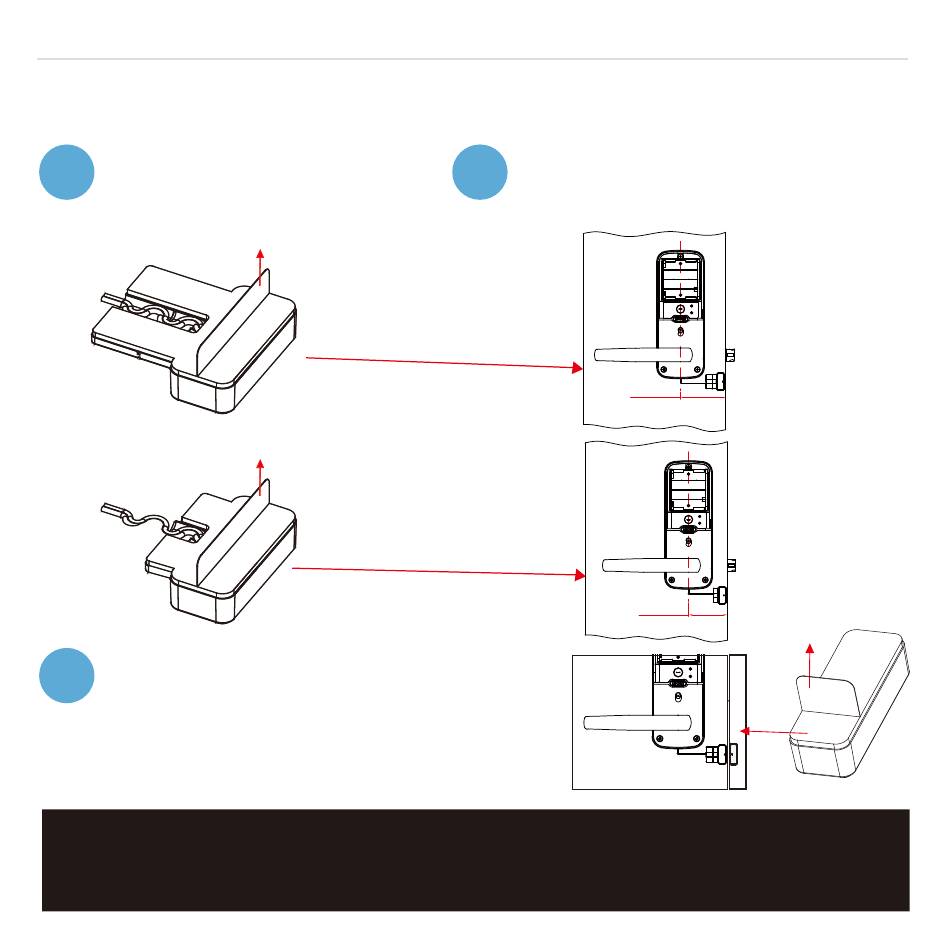

INSTALLING THE DOORS SENSOR
2
Position the wired sensor (AA) to the edge
of the door, avoiding the door strike plate.
Attach and secure with the adhesives.
2-3/4"(70mm)
2-3/8"(60mm)
