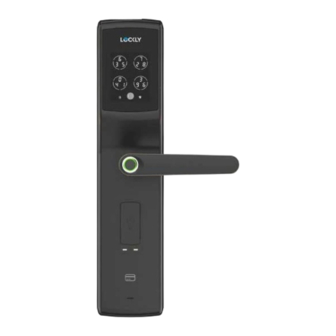

- Page 1 SECURE LUX MORTISE EDITION INSTALLATION GUIDE...
- Page 2 Go to Lockly.com/pages/installation to watch a video version or download this installation guide.
- Page 3 Welcome! This guide will walk you through step-by-step how to install and get your Lockly Secure Lux up and running. If you have any questions please reference our online support at: Lockly.com/support or call (669) 500-8835 for help. Reference installation parts overview foldout on back page...
- Page 4 Preparation Remove existing mortise lockset, deadbolt or latch and use provided template to bore new holes. 1-⅜"~4-¾" (40~120mm) 2-⅜" (60mm) 1" (25mm) or 2-¾" (70mm) 9-½" (241mm) 1" (25mm) Hole for handle 1" (25mm) IMPORTANT: This product is recommended for professional installation. You may be required to use a hole saw and/or professional drilling tools to prepare door for installation.
- Page 5 Preparation 1. Configure your lockset according to your direction. RIGHT IN-SWING DOOR RIGHT OUT-SWING DOOR LEFT IN-SWING DOOR LEFT OUT-SWING DOOR IMPORTANT: Before installation, make sure to determine your door opening directions. This will be your reference in adjusting the latch throw, cylinder spin, interior and exterior handles.
- Page 6 Step 1 ADJUSTING THE LATCH THROW & SPIN Change the latch throw and cylinder spin direction according to your door opening. The factory setting of the throw and cylinder spin is for Right In-Swing door. If you have a different door opening direction, please refer to Preparation (Page 4) for the correct latch direction and spin position.
- Page 7 Step 2 INSTALLING THE LOCKSET Install the mortise lockset into door pocket hole and tighten it with the 4 screws supplied. Route the cable inside the door pocket and place it aside. Exterior Route the cable inside the door KA4 X 25mm Screw(4X) Make sure the cross hole of lockset is at the center alignment and...
- Page 8 Step 3 REVERSING DOOR HANDLES The illustrations below shows how to shift the exterior and interior door handle from right to left direction. The factory setting of the handle is for a right handed door. Skip this step if you have a right handed door. To shift handle from right to a left handed door, follow the instructions below: Exterior Handle 1.
- Page 9 Step 4 INSTALLING THE LOCK CYLINDER Check door thickness and confirm if the cylinder blade needs to be cut; Insert the cylinder to the cylinder hole of the exterior assembly Secure the cylinder to the exterior assembly with two screws Insert washer on positioning rods .
- Page 10 Step 5 INSTALLING THE SPINDLE 5.1 The spindle must be inserted from the door interior passing through the lockset all the way to door exterior. Door Interior: The spindle must Door Exterior: After the Check door thickness be inserted from the door spindle inserted, pull it outward interior.
- Page 11 Step 6 INSTALLING THE EXTERIOR ASSEMBLY 6.1 Select or adjust the escutcheon screws (x2) according to door thickness. Install the exterior assembly, mounting plate, escutcheon pad and secure with screws. Select and adjust Screws according to door thicknesses 40~55mm door 50~66mm door thickness, no need thickness, no need...
- Page 12 Step 7 INSTALLING THE INTERIOR ASSEMBLY 7.1 Install torque blade to interior assembly. 7.2 Insert the cotter pin to the Torque Blade according to door thickness. See notes as illustrated in the diagram. 7.3 Remove and discard the positioning sleeve then plug the exterior assembly cables to the corresponding socket of the interior assembly 7.4 Insert torque blade to the corresponding hole and install the interior assembly...
-
Page 13: Final Check
Step 8 FINAL CHECK After installation is completed, lift both the interior and exterior handles up and down making sure they are running smoothly. Then check if the deadbolts and latch are thrown smoothly with the physical keys. Step 9 INSTALLING BATTERIES Insert 4 x AA batteries make sure the batteries are correctly positioned. - Page 14 Step 10 INSTALLING DOOR STRIKE Use installation template to drill hole on the door frame. Install the dust box on to door frame. Then install the strike plate and fix it with screws KA4 X 18mm Strike(1X) Dust Box(1X) Screw(2X)
- Page 15 Step 11 DOWNLOAD THE LOCKLY APP Congratulations! You have completed the Lockly physical lock installation. To complete your setup, download the Lockly app from the App Store or on Google Play and follow on-screen instructions. Scan or visit Lockly.com/app...
- Page 16 Add more Smart to your Home Secure Link Wi-Fi Hub Add the optional Lockly Secure Link Wi-Fi Hub, together with the free Lockly app, it's easier than ever to securely control and manage your door from anywhere, anytime. Real-time, monitoring, & status...
- Page 17 FCC Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 18 L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2.
- Page 19 Screw Cap Interior Assembly KM5 X 10mm Screw Battery Cover Dust Box Strike Plate KA4 X 18mm Screw Positioning Sleeve Allen Wrench RFID Card KEEP THIS CARD! Activation Card ACTIVATION CARD 0004001 1341652 LOCKLY.COM | HOTLINE: +1(669) 500-8835 | EMAIL: HELP@LOCKLY.COM...
-
Page 20: Connect With Us
Connect with us @meetlockly | #Lockly... - Page 21 ® by the Bluetooth SIG, Inc. , and any use of such marks by Lockly is under license. Other trademarks and trade names are those of their respec- tive owners. Google, Android, Google Play and Google Home are trademarks of Google LLC.
