Lockly SECURE PRO LATCH EDITION Installation Manual page 28

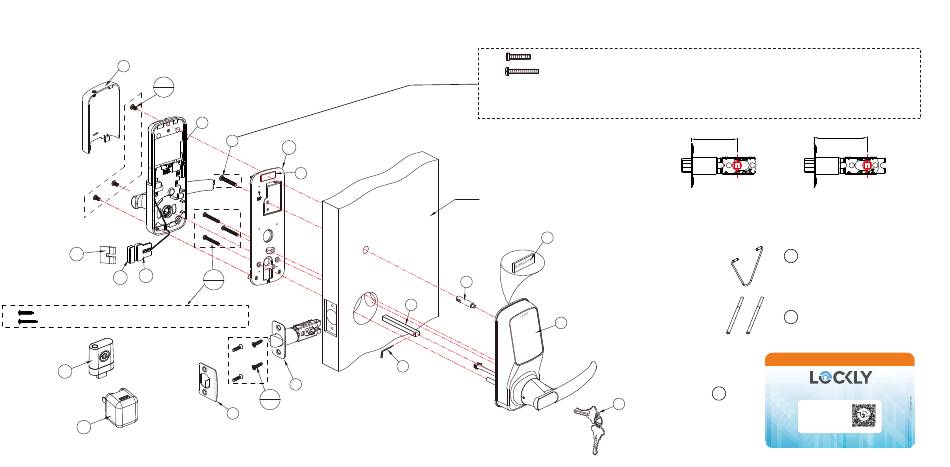

INSTALLATION OVERVIEW & PARTS LIST
Q
Battery Cover
P
BM4 × 8MM Screw
3x
AC
Foam Pads
AA Wired Sensor
AB
Sensor Magnet
O1 PM4 x 25mm, for door thickness, 1-3/8"~1-2/3"(35~43mm)
O2 PM4 x 32mm, for door thickness, 1-2/3"~2"(43~50mm)
E
Wi-Fi Hub
J
Power Adaptor
Interior Assembly
N
M
PM5 Screw
LK
Mounting Plate
S
Interior Adhesive
O
3x
PM4 Screw
F
G
Latch
4x
H
KA4 x 20MM Screw
Strike Plate
This lock can be installed for both right swing and left swing doors. The lock ships ready for a right swing
door installation. If you wish to change the orientation of the lock for a Left Swing door, follow instructions
on Installation Guide (Step 2) or the BILT App (Step 10).
M 1
PM5 x 25mm Screw, Door thickness 1-3/8"~1-2/3"(35~43mm)
M 2 PM5 x 35mm Screw, Door thickness1-2/3"~2"(43~50mm)
* NOTE: You can either use the exterior adhesive (T) or slotted barrel extension (U) to stabilize the
exterior part. Slotted barrel extension (U) requires drilling an extra hole. Use provided Template
for drilling instructions if needed.
Exterior
T
Exterior Adhesive
Slotted
Barrel
Extension
U
Spindle
C
B
D
Locking Pin
2-3/8"
(60mm)
Measure distance between the center of the hole to the edge
of door, adjust latch F to 2-3/8"(60mm) or 2-3/4"(70mm)
Exterior Assembly
W
A
Keys
Activation Card
2-3/4"
(70mm)
Clamping Tool
R
For changing
handle orientation
Positioning Rod
V
For installing mounting
2x
plate (LK)
KEEP THIS CARD!
ACTIVATION CARD
LOCK SERIAL
PGDxxxxxxxxxx
ACTIVATION CODE
xxxxxxxx
SCAN & SAVE
LOCKLY.COM | HOTLINE: +1(669) 500-8835 | EMAIL: HELP@LOCKLY.COM
