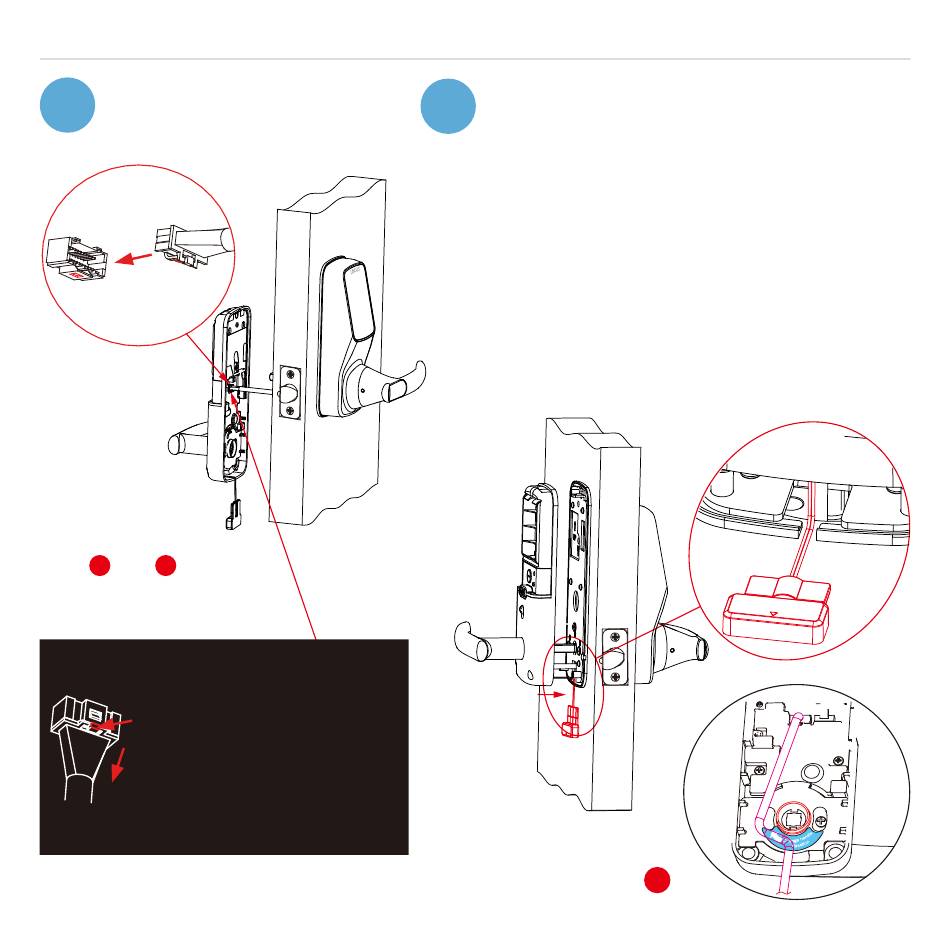

Step 7
1
Plug the cable that is coming
through the door into the lock
interior.
X Y
Plug into , match
red side of plug with red
on socket - insert tightly.
NOTE: If you need to discon-
nect the cable, make sure to
press the snap tab to release
the plug before carefully
pulling it out. Do not force,
as this may result in damaging
the lock.
INSTALLING THE LOCK INTERIOR (N)
2
Align the square rod to the lock interior and
attach the Interior lock to the Interior mounting
plate.
While you are doing so, gently push some of the
excess cable through the rectangular hole into
the door.
Tuck the sensor wire on the side channel of the
mounting plate as shown.
Place the remaining cable against the interior
side of the lock interior so the lock interior sits
securely onto the mounting plate.
Make sure the cable
is away and not tangling
with the square rod
