Lockly SECURE PRO LATCH EDITION Installation Manual page 13

Step 5
continued
O1
Secure with
*Secure top with
Secure with
O2
or
M1 M2
or
O1 O2
or

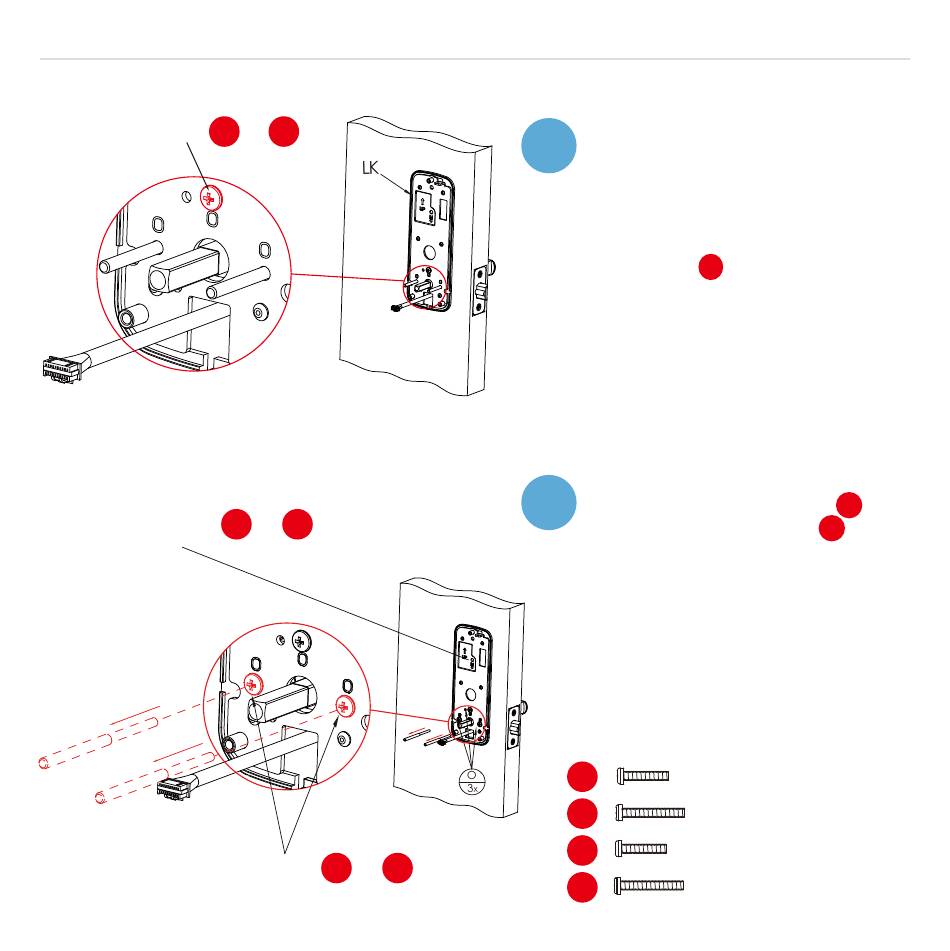

INSTALLING THE LOCK (INTERIOR)
3
Pull the cable from the lock exterior
through the rectangular hole under-
neath the positioning rods and spindle.
Secure the hole above the spindle
with screws
4
Remove the position rods
replace them with screws
clockwise until the mounting plate
is secure.
* If you have drilled a hole on the top
in Preparation, please secure the hole
with screw M1 or M2 depending on
your door thickness. Skip this if no hole
was drilled in Preparation.
M1
M2
O1
O2
12
O
.
V
and
O
Tighten
PM5 x 25mm
PM5 x 35mm
PM4 x 25mm
PM4 x 32mm
