Lockly SECURE PRO LATCH EDITION Installation Manual page 6

Step 1

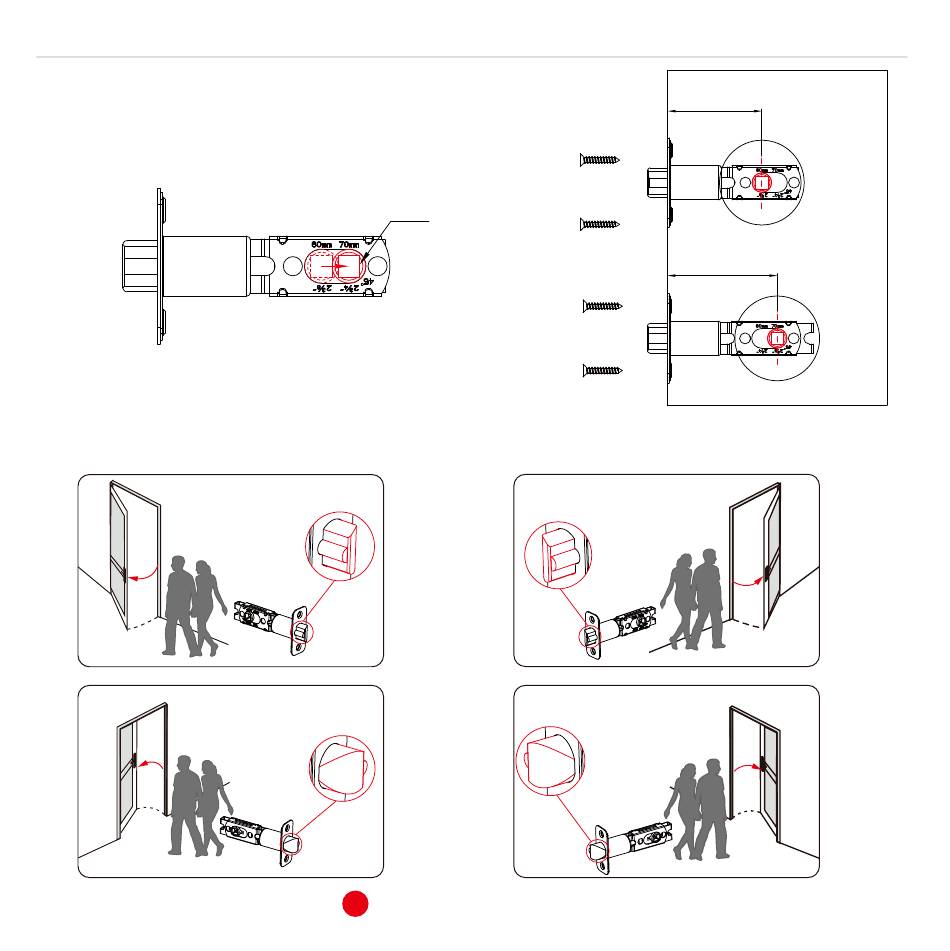

Measure the distance between center of front door
hole to the edge of your door. Push the shaft (a) to
adjust the lockset to 2-3/8"(60mm) or 2-3/4"(70mm).
Facing the door exterior, install the lockset according to the in-swing or out-swing opening direction
of your door.
LEFT OUT-SWING DOOR
Inside
Outside
LEFT IN-SWING DOOR
Inside
Outside
Secure lockset with provided
(a)
RIGHT OUT-SWING DOOR
RIGHT IN-SWING DOOR
G
screws.
5
INSTALLING THE LOCKSET
2-3/8"
(60mm)
2-3/4"
(70mm)
Inside
Outside
Inside
Outside
