Intellitronix DP7006 Installation Manual page 2

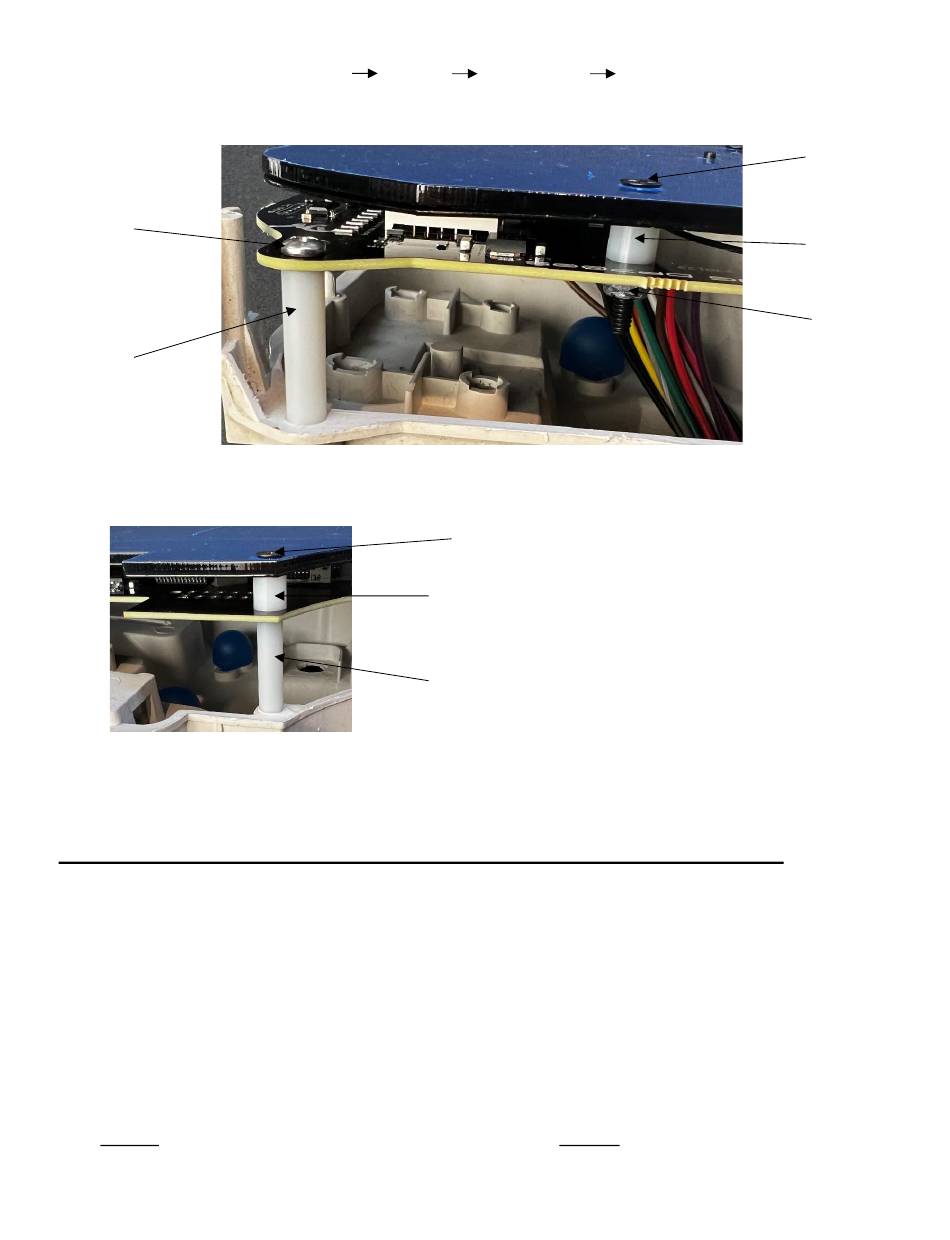

Please note to remove the protective film from BOTH sides of the smoked acrylic before installing. Also, the assembly will go:
Figure 1
#6 x 1 1/2"
Panhead
#6 x 1" Nylon
Spacer
Figure 2
Standard Wiring Colors
Color
Red
Pink
White
Yellow
Orange
Blue
Grey with White
Red/White
Brown
Tan
Grey with push button
Orange/White Corvette board only
Page | 2 DP7006
smoked acrylic overlay
ALL COLORS MAY NOT APPLY
Purpose
12Volts Battery Constant
Ignition 12 volts clock
Speedometer
Fuel
Oil pressure
Water Temperature
Turn Signal (right)
12volt to speed sender
High Beam
Brake
Speedometer/Tachometer
Oil Temperature
2/27/2024
5/16" Spacer
#6 x 2"
Flathead
#6 x 5/16"
Nylon SPacer
#6 x 1" Nylon
Spacer
Color
Black
Green/Yellow
Green
Black/Yellow
Black/Orange
Black/Blue
Grey with Black
Black/White
Purple
Brown/Yellow
Red/white corvette board only
circuit board
Purpose
Ground
Check Engine
Tachometer
Fuel sender Ground
Oil sender Ground
Water Temperature Ground
Turn Signal (left)
Ground to speed sender
Dimmer
Boost or 4X4
Ground for oil temp
www.intellitronix.com
#6 x 1" Flat
Head Screw
#6 x 5/16"
Nylon Spacer
#6 Nylock Nut
