Made in America
Life time Guarantee
Thank you for purchasing this instrument panel from Intellitronix. We value our customers!

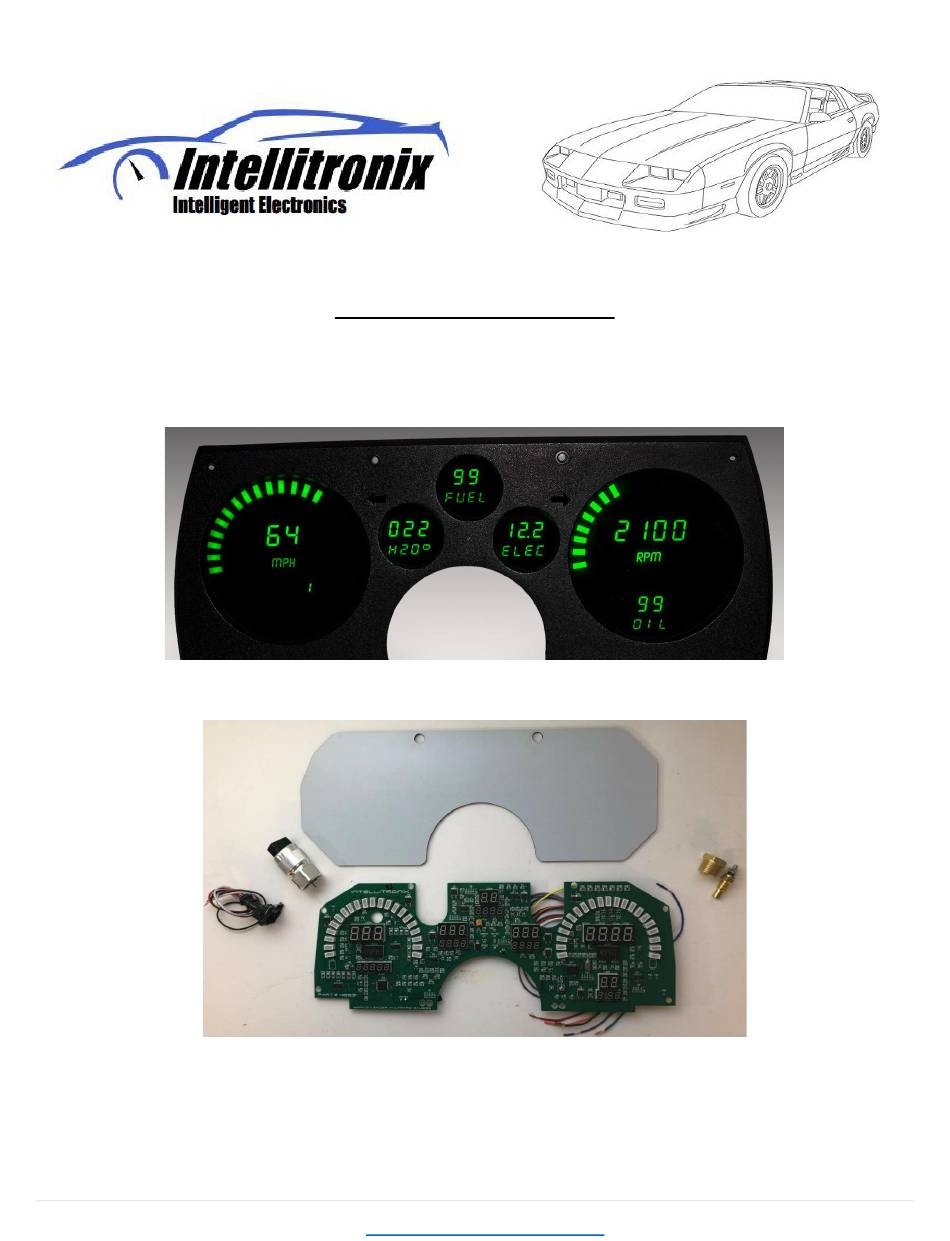

INSTALLATION GUIDE
Camaro Digital Dash Panel
Part Number: DP4003
Year Series: 1982 – 1990
* Always disconnect the battery before attempting any electrical work on your vehicle.*
KIT COMPONENTS
One (1) Digital Circuit Board
One (1) Smoked Acrylic Lens
One (1) Temperature Sending Unit (S8013) 1/8" NPT, 0-255 Deg., 1/2" NPT Brushing
One (1) Universal Speedometer Sensor (S9013) 7/8" NPT Industry Standard threads
DP4003
www.intellitronixgauges.com
1 |
rev. (08/25/21)
Tech Support (440) 359 -7200ext109
Advertisement
Related Manuals for Intellitronix DP4003
Summary of Contents for Intellitronix DP4003
- Page 1 Made in America Life time Guarantee Thank you for purchasing this instrument panel from Intellitronix. We value our customers! INSTALLATION GUIDE Camaro Digital Dash Panel Part Number: DP4003 Year Series: 1982 – 1990 * Always disconnect the battery before attempting any electrical work on your vehicle.*...
-
Page 2: Wiring Instructions
Resistors if the Tachometer does not have a push button for programing, please call Tech Support at Intellitronix, as you may need to send the gauge back to us to be reconfigured. There is no charge for this additional service. - Page 3 Note: If doing a LS engine swap, pick up the tach signal wire from the ECM/ECU and then set the tach switch to 4-cylinders. You may also need to order the Intellitronix LS Engine Swap Adapter Kit – for Series 1, 2 and 3 engines. The part number is 8014LS. If you are getting the tach signal from the ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer.
- Page 4 Ground at the Engine block. To find High and Low output wire color or pin location will need to be looked up by Vehicle vin or Model and year. Speedometer - White (Intellitronix Speed Sender) - Disconnect the mechanical speedometer cable from the transmission and thread the new electronic sensor onto the transmission. This panel comes with a 3-wire sensor.
- Page 5 However, once it finishes scrolling one time, the memory is ready to record new data and will begin recording again once the vehicle starts to move. The highest speed measured over multiple runs will be retained in memory. DP4003 www.intellitronixgauges.com rev. (08/25/21)
- Page 6 8,000 pulses per mile. You should not have to recalibrate your speedometer unless you have changed the original tire size or the rear end gear ratio. Also, if using the Intellitronix GPS Sending Unit, (S9021 – not included) the speedometer does not need to be calibrated.
- Page 7 The odometer will continue to display the pulse reading for a few seconds. Once it reverts to the default mode, you have successfully calibrated your speedometer. DP4003 www.intellitronixgauges.com rev. (08/25/21)
-
Page 8: Technical Support
CHECK OUT THE SUPPORT PAGE AT www.intellitronix.com FOR QUICK ANSWERS (Q&A) TO YOUR QUESTIONS This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. DP4003 www.intellitronixgauges.com rev. (08/25/21) - Page 9 RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product. 2. Place the product being returned in the original packaging that it came in and include a copy of the completed Intellitronix Return/Repair Form.
