HP Compaq t1010 Supplementary Manual page 41

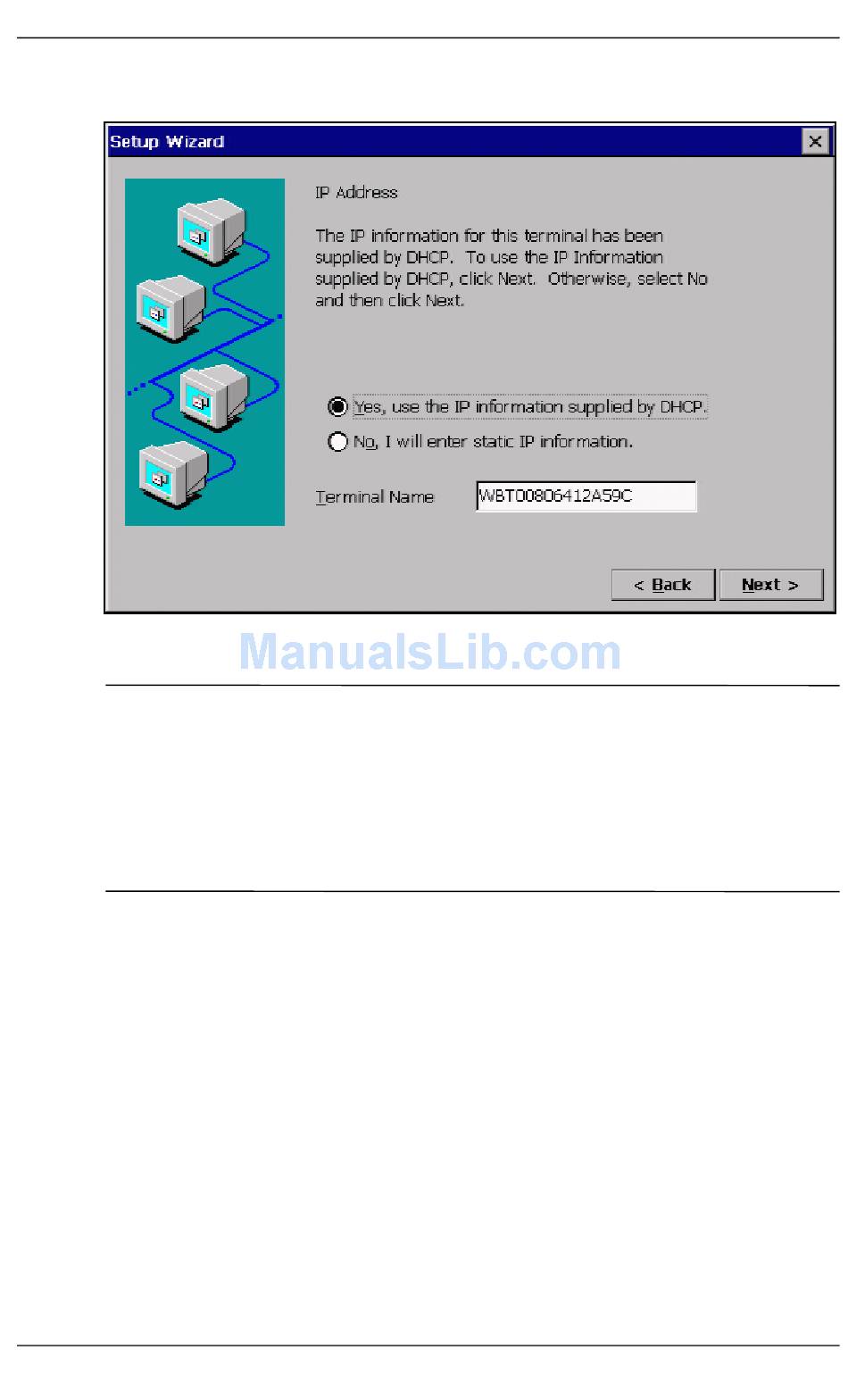

Figure 3–2: IP Address Dialog Box
✎
Contact the network administrator if a message appears in the box
indicating that no network services were found. It may be that the
network is not connected to the terminal or the network services
are not configured. The default active radio button in this box will
be No if network services were not found; otherwise the default
will be Yes.
Click on one of the two radio buttons to select a method for
supplying IP addresses:
I
If you select No, I will enter static IP information and click
on Next, the Specify an IP Address (Figure 3–3) will
display, followed by the Optional Information dialog box.
I
If you select Yes, use the IP information supplied by
DHCP and click on Next, the Desktop Area and Refresh
Frequency (Figure 3–5) dialog box will display, skipping the
Specify an IP Address dialog box.
Administrators Guide
Initial Terminal Setup
3–3
