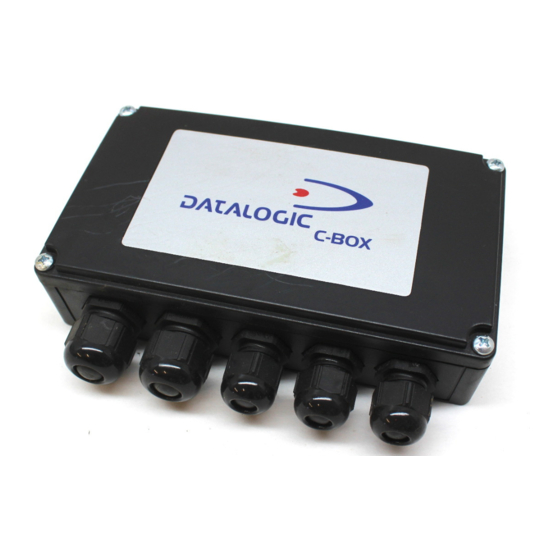

Summary of Contents for Datalogic C-BOX 200
- Page 1 C-BOX 200 Installation Manual...
- Page 2 C-BOX 200 INSTALLATION MANUAL...
- Page 3 Gerät declare que el C-BOX 200, active connection box sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below: sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous: der nachstehend angeführten Direktiven des Europäischen Rats:...
-
Page 4: Table Of Contents
Multidrop Address Selection... 11 2.4.5 RS485 Bus Termination ... 12 2.4.6 Connection to a Multiplexer ... 13 2.4.7 OM4000 Jumper Settings... 14 9-Pin Scanner Auxiliary Serial Interface ... 15 Scanner Requirements... 16 Operating Modes... 16 2.7.1 GET/SEND Buttons... 17 2.7.2 LED Indicators... 18... -
Page 5: Guide To Installation
1) Read all information in the section "Safety Precautions" at the beginning of this manual. 2) Correctly position and mount the C-BOX 200 within the reach of the barcode scanner cable, according to the information in paragraph 2.3. 3) Provide correct system cabling according to the signals necessary for your application and RS485 settings (see all sub-paragraphs under 2.4) - Page 6 25-pin scanner connector Compression connectors Cover screws (4) C-BOX 200 General View Figure A...
-
Page 7: General View
Power switch (ON/OFF) Spring clamp terminal blocks Multidrop address switches Power on LED Warning LED Tx LED C-BOX 200 General View Figure B GET button SEND button Auxiliary port connector Chassis grounding selector Termination resistance switch OM4000 jumpers... -
Page 8: Safety Precautions
READ THIS INFORMATION BEFORE INSTALLING THE PRODUCT - This product is intended to be installed by Qualified Personnel only. The C-BOX 200 is intended to be supplied by an NEC Class 2 power source, rated 10-30 V, minimum 0.65 A. - Page 9 viii...
-
Page 10: General Features
1 GENERAL FEATURES 1.1 DESCRIPTION The C-BOX 200 is a connection box which can be used as an accessory of the Datalogic scanners to perform the following functions: Facilitate the connection of the scanner signals using a spring clamp connector. -
Page 11: Installation
2 INSTALLATION 2.1 PACKAGE CONTENTS Verify that the C-BOX 200 and all the parts supplied with the equipment are present and intact when opening the packaging; the list of parts includes: C-BOX 200 Installation manual Figure 2.1 - C-BOX 200 package contents... -
Page 12: Opening The Device
2.2 OPENING THE DEVICE To install the C-BOX 200 or during normal maintenance, it is necessary to open it by unscrewing the four cover screws: The C-BOX 200 must be disconnected from the power supply during this operation. It is possible to perform the following operations: Proceed with the cable connections (see paragraph 2.4.2). -
Page 13: Mechanical Installation
C-BOX 200 DATALOGIC 2.3 MECHANICAL INSTALLATION The diagram below gives the overall dimensions of the C-BOX 200 and may be used for its installation. Figure 2.3 - Overall dimensions 4 - Installation... - Page 14 2) Align the C-BOX 200 and insert two screws and screw them into the panel until tight (see Figure 2.4).
-
Page 15: Electrical Connections And Setup
System Cables Figure 2.5 – System layout A PC can be quickly connected to the C-BOX 200 (and consequently to the scanner auxiliary interface) through the internal 9-pin connector. This allows monitoring of the data transmitted by the scanner or configuration through the WinHost utility (see the scanner Installation Manual for more details). -
Page 16: Power Supply
2.4.1 Power Supply Power is supplied to the C-BOX 200 through the pins provided on the spring clamp connector. The power switch (see Figure 2.6) switches the power supply ON or OFF for both the C-BOX 200 and the connected scanner. -
Page 17: System Wiring
2.4.2 System Wiring The connection and wiring procedure for C-BOX 200 is described as follows: Open the C-BOX 200 as described in paragraph 2.2. Verify that the C-BOX 200 power switch is off (see Figure 2.6). Unscrew the compression connectors and pass all the system cables through them into the C-BOX 200 housing. - Page 18 C-BOX from different spring clamps but be physically connected together. Pin 7 or 8 should be connected to the earth ground. Pin 17, 18 and 19 are not present in the C-BOX 200 model. Name EARTH GROUND...
-
Page 19: Chassis Grounding Jumper Settings
The scanner chassis can also be left floating but, in this case, the jumper must be removed. to EARTH to GND floating GROUND (default) Figure 2.9 – Chassis grounding The C-BOX 200 is now installed which completes the electrical connections for your scanning system. 10 - Installation... -
Page 20: Multidrop Address Selection
2.4.4 Multidrop Address Selection For RS485 half-duplex interface connections, the scanner multidrop address should be set using the rotary switches placed inside the C-BOX 200. The valid address range is from 00 to 31. This value is read only at power- on;... -
Page 21: Rs485 Bus Termination
2.4.5 RS485 Bus Termination Figure 2.11 - Termination resistance switch The switch S2 enables or disables the insertion of the bus termination resistor for RS485 Half Duplex Multidrop applications. In Multiplexer applications the termination resistor must be enabled ONLY on the last device of the chain, the farthest away from the Multiplexer (assuming the Multiplexer is the first device of the chain). -
Page 22: Connection To A Multiplexer
2.4.6 Connection to a Multiplexer The following figure shows a multidrop layout with C-BOX 200 devices connected to a Multiplexer: SCANNER SCANNER SCANNER (*) If necessary enable the termination resistor only in the last device. C-BOX 200 (up to 31) -
Page 23: Om4000 Jumper Settings
C-BOX 200 DATALOGIC 2.4.7 OM4000 Jumper Settings Figure 2.13 - OM4000 jumpers The jumpers allow connection to the EXT TRIG signals on separate spring clamp terminals for applications which use the OM4000 Oscillating Mirror in Trigger Mode. They are used together and they have the following significance: when a jumper is in the J1 position (see Figure above) pin 40 is connected to pin 27 (EXT TRIG+);... -
Page 24: 9-Pin Scanner Auxiliary Serial Interface
2.5 9-PIN SCANNER AUXILIARY SERIAL INTERFACE The scanner auxiliary serial interface available on the internal 9-pin connector can be used either for configuration through WinHost or for data monitoring. The details of the connector pins are indicated in the following table:... -
Page 25: Scanner Requirements
2.7 OPERATING MODES Once the connection procedure is completed (the warning LED is OFF), the C-BOX 200 is ready to receive code strings from the scanner's RS232 main interface. Then, it converts them to the RS485 multidrop network by using MUX32 protocol. -
Page 26: Get/Send Buttons
2.7.1 GET/SEND Buttons The C-BOX 200 has two internal function buttons (GET, SEND). The procedure to enable the GET/SEND function is the following: Press both the buttons GET and SEND at the same time for at least one second; the warning LED is turned ON. -
Page 27: Led Indicators
2.7.2 LED Indicators Power on The three internal LEDs of the C-BOX 200 (see Figure 2.15) indicate the following: (red) indicates the C-BOX 200 is connected to the power POWER ON supply and the power switch is ON. (red) indicates a warning or error condition: it is ON when a... -
Page 28: Technical Features
IEC 68-2-6 test FC 1.5 mm; 10 to 55 Hz; 2 hours on each axis IEC 68-2-27 test EA 30G; 11 ms; 3 shocks on each axis (when correctly connected to the scanner) NOTE temperature 10 to 30 Vdc IP64...
