C-BOX 200 can be installed to operate in different positions. The two screw
holes inside the housing of the C-BOX 200 are for mechanical fixture (Figure
2.4).
To mount the C-BOX 200:
1) Open the C-BOX 200 by unscrewing the 4 cover screws. If necessary,
using the two mounting holes inside the device as a pattern, mark the
panel with an appropriate object and then drill two holes in the panel.
2) Align the C-BOX 200 and insert two screws and screw them into the
panel until tight (see Figure 2.4).

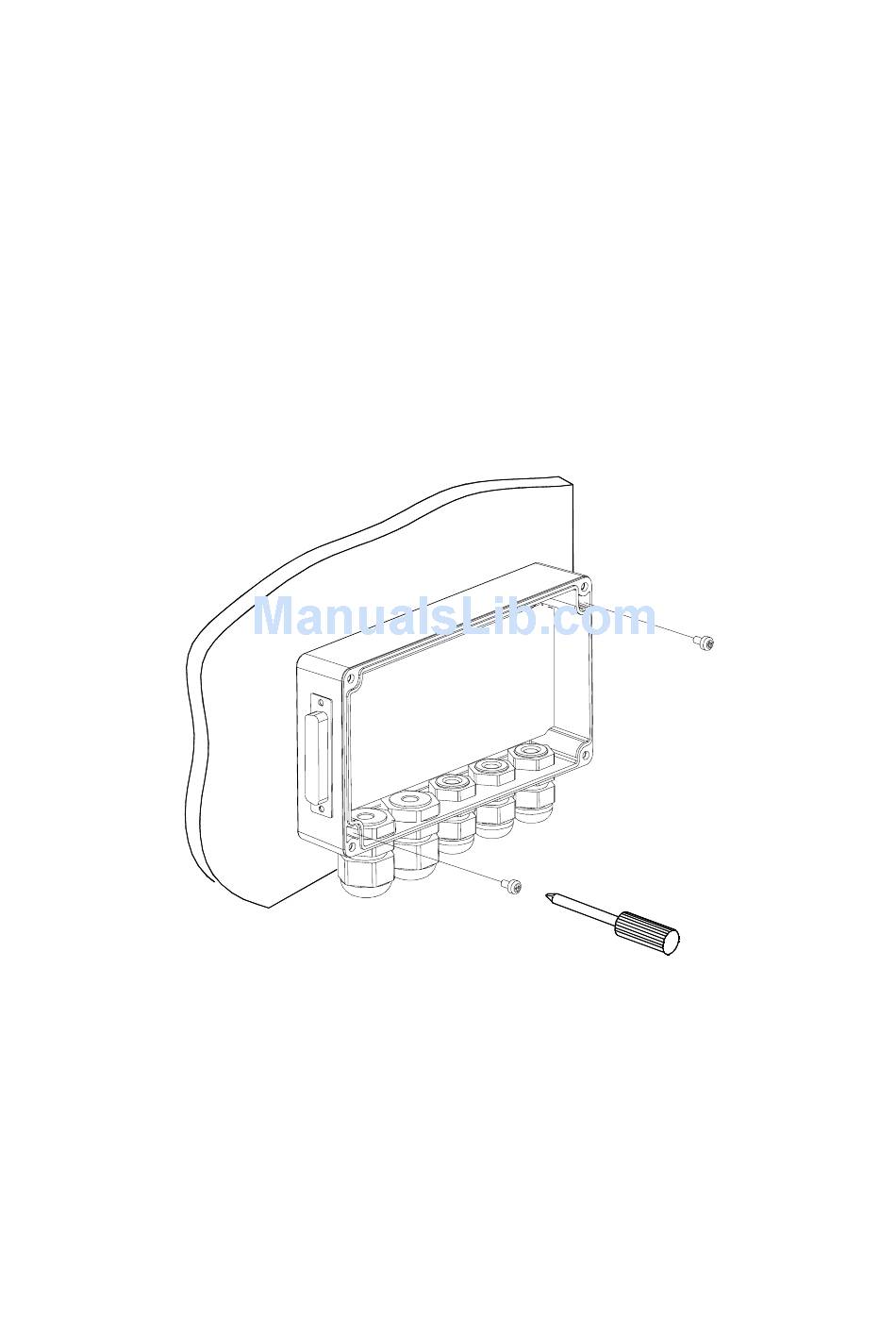

Figure 2.4 - Mounting C-BOX 200
C-BOX 200
Installation - 5
