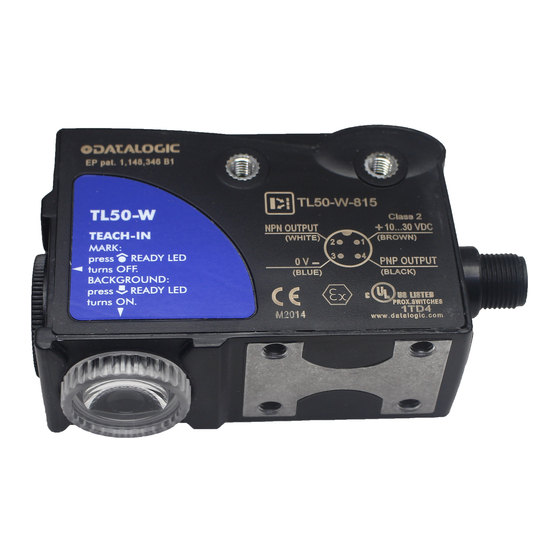

Datalogic TL50 Series Instruction Manual

Datalogic TL50 Series Instruction Manual

Advertisement

Quick Links

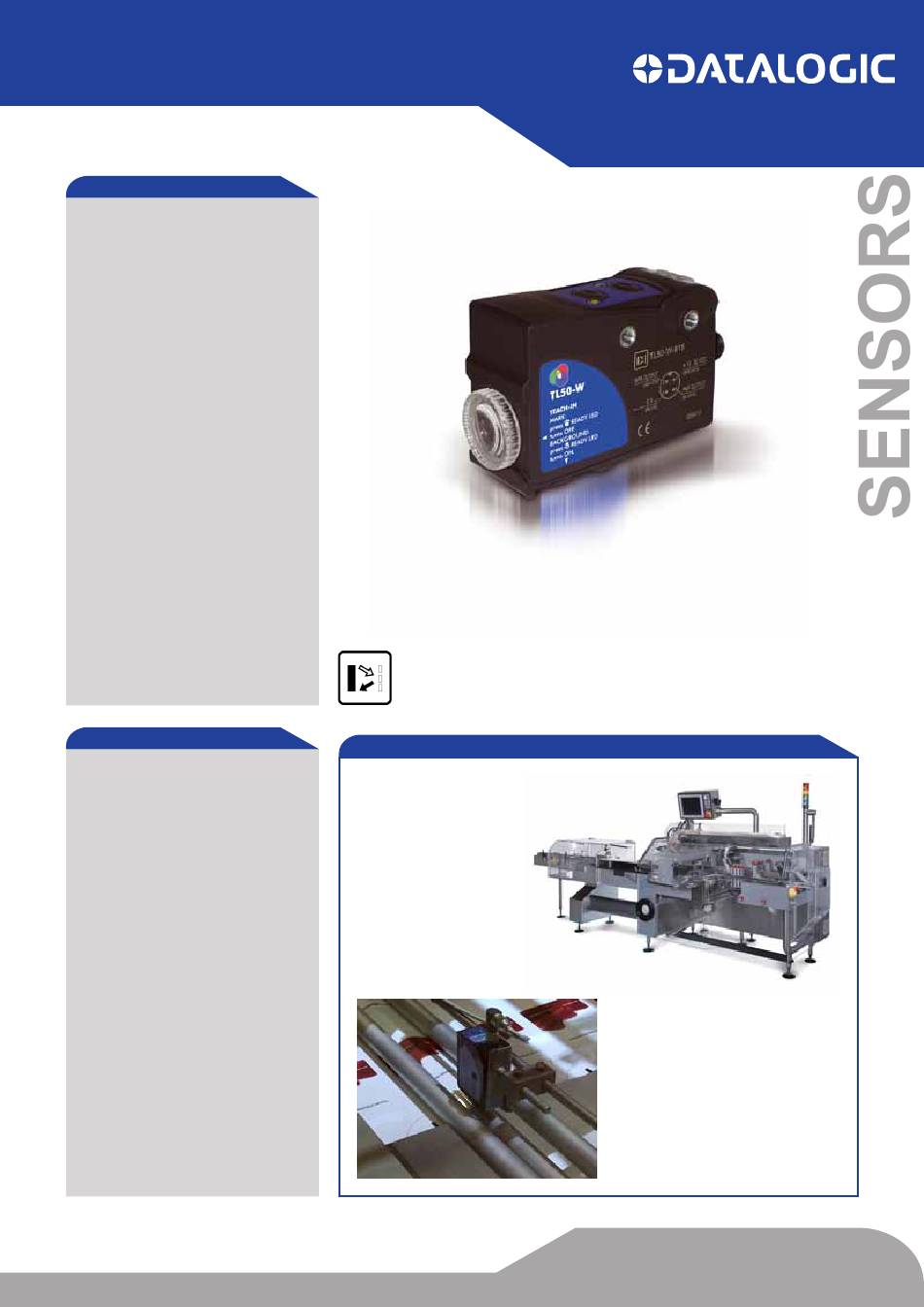

PHOTOeLeCTRIC
CONTRAST SeNSORS
TL50 SERIES
The TL50 contrast sensor line offers
the best solution for all the applications
where cost reduction is requested,
without compromising the excellent
detection performances. The optimised
optics of these sensors, the rgb
Led emission with automatic colour
selection and the very fine resolution,
allow the detection of the weakest
contrast of colours or grayscale
between mark and background, or
between different objects or surfaces.
The high resolution is not a limit for
the detection speed, reaching 33 ms
response time and 15 khz switching
frequency. thanks to the compact
dimensions and multiple fixing
holes with metallic inserts present in
standard positions, the sturdy abs
plastic housing is fully compatible
and can replace the most traditional
contrast sensors, as well as offering an
interesting cost reduction.
the special Pmma plastic lens, that
can be fixed either in an axial or lateral
position, is suitable for sensor use in
the food industry, where the presence
of glass parts must be avoided.
HIGHLIGHTS
• high resolution and rgb Led
emission with automatic colour
selection
• very fast switching frequency and low
response time
• easy sensor setting by means of two
pushbuttons mark/bkgd
• sturdy plastic housing with standard
dimensions and fixing holes
APPLICATIONS
Contrast reading
Packaging lines

Advertisement

loading
Need help?

Need help?

Do you have a question about the TL50 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Datalogic TL50 Series

  • Page 1 PHOTOeLeCTRIC CONTRAST SeNSORS TL50 SERIES The TL50 contrast sensor line offers the best solution for all the applications where cost reduction is requested, without compromising the excellent detection performances. The optimised optics of these sensors, the rgb Led emission with automatic colour...
  • Page 2 INDICATORS AND PUSh-BUTTONS yellow outPut Led green ready Led orange deLay Led mark push-button bkgd push-button ACCeSSORIeS CONNeCTIONS for dedicated accessories refer to the ACCeSSORIeS section of this catalogue. refer also to Connectors of the General Catalogue. www.datalogic.com...
  • Page 3: Technical Data

    TeCHNICAL DATA DeTeCTION DIAGRAMS Power supply: 10 … 30 vdc , reverse polarity protection Ripple: 2 vpp max. Consumption: 50 ma max. at 24vdc Light emission: rgb Led (630nm red, 520nm green, 465nm blue) Spot dimension: 1.5 x 5 mm at 9 mm Operating distance: 9 mm Depth of field:...
  • Page 4: Operating Distance

    www.datalogic.com...
  • Page 5 Under current Italian and European laws, Datalogic is not obliged to take care of product Ambient light rejection: According to EN 60947-5-2 disposal at the end of its life. Datalogic recommends disposing of the product in compliance with local laws or contacting authorised waste collection centres. Vibrations: 0.5 mm amplitude, 10 …...
