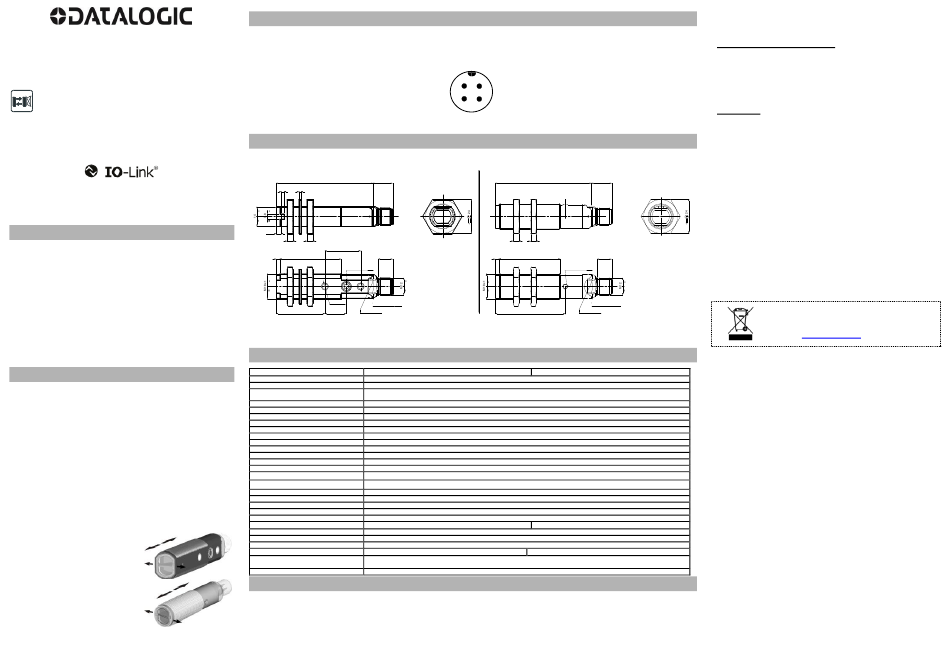

Datalogic IO-Link S5N-PA PLASTIC VERSIONS Instruction Manual

This product is covered by one or m ore of the following patents.
European Patent 851,211 B1; 1,111,690 B1; 1,148,346 B1; 1,209,487 B1.
Italian Patent IT 1,321,772.
S5N-PA/MA...M
Background suppression proximity
INSTRUCTION MANUAL
Inf ormation on IO-Link communication is av ailable on the
last page of this manual.
CONTROLS
OUTPUT LED
The yellow LED ON indicates that the N.O. (normally open) output status
is closed.
READY LED
The green LED indicates a normal operating function.
If the green LED flashes, the acquisition has failed.
Please refer to the "SETTING" paragraph for setup procedure
indications.
SET PUSHBUTTON
A long pressure on the pushbutton activates the self-setting procedure.
INSTALLATION
S5N-PA...M: The sensor can be fixed by means of the M18x1 threaded
body through a  18 mm hole, using the specific washer two CH.24 nuts
enclosed (1.5 Nm maximum tightening torque).
Alternatively, the sensor can be mounted through the two housing's holes
using two screws (M3x22 or longer) and washer.
Amongst the various possible solutions, we suggest to choose the
combination that offers the best visibility of the signalling LEDs and the
easiest access to the SET pushbutton.
22 mm nuts, h=8 mm, (2 Nm maximum tightening torque) are available to
guarantee an improved torque.
S5N-MA...M: The sensor can be fixed by means of the M18x1 threaded
body through a  18 mm hole, using the two CH.24 nuts enclosed (22
Nm maximum tightening torque).
For both plastic version and metallic
version are available various orientable
fixing brackets to ease the sensor
positioning (please refer to the
accessories listed in the general
catalogue).
The operating distance is measured from
the front surface of the sensor lens.
To improve the detection, the object has
to be moved closer or further away from
the front surface of the sensor lens.
In case of lateral translation, the object
must move as indicated in the figure.
The connections are compliant to the EN 60947-5-2 standard.
N.C. OUTPUT
S5N-PA VERSION
S50-PA VERSIONS
81.5 14.5
1.5
2
3.5
4 4
CABLE VERSION
25
43
2.5 10
SET PUSHBUTTON
N°.2 Ø3.8
READY L ED
READY/ERROR LED
OUTPUT LED
34 15 OUTPUT LED
TECHNICAL DATA
S5N-PA PLASTIC VERSIONS
Power supply:
Ripple:
Current consumption
(output current excluded):
Outputs:
Output current:
Output saturation voltage:
Response time:
Switching frequency:
Indicators:
Setting:
Operating mode:
Data retention:
Operating temperature:
Storage temperature:
Insulating strength:
Insulating resistance:
Operating distance (typical values):
Emission type:
Ambient light rejection:
Vibrations:
Shock resistance:
Housing material:
Lens material:
Mechanical protection:
Connections:
Weight: 25 g. max. connector vers.
AtEx 2014/34/EU
Emission:
EASY TOUCH
The sensor uses the patent-covered EASY TOUCH technology that allows a rapid and safe self-setting of the product.
Two different setting possibilities are available:

- EASY TOUCH ; a long pressure of the SET pushbutton allows self-setting.
- FINE DETECTION; to be used only in particularly critical conditions; this setting procedure is used only when the EASY TOUCH is not
sufficient.
CONNECTIONS
M12 CONNECTOR
+ 10 ... 30 Vdc
2
1
3 4
N.O. OUTPUT/
-
0 V
IO-Link
DIMENSIONS
S5N-MA VERSION
S50-MA VERSIONS
67 14.5
4 4
10
43
2.5 10
SET PUSHBUTTON
READY L ED
READY/ERROR LED READY L ED
READY/ERROR LED
49 OUTPUT LED
mm
S5N-MA METALLIC VERSIONS
10 ... 30 Vdc (limit values)
2 Vpp max.
30 mA max.
N.A. and N.C.; PNP or NPN (short-circuit protection)
100 mA max.
2 V max.
1 ms
500 Hz
OUTPUT LED (YELLOW) / READY LED (GREEN)
SET pushbutton
LIGHT mode on N.O. output / DARK mode on N.C. output
non volatile EEPROM memory
-25 ... 55 °C
-25 ... 70 °C
500 Vac 1 min., between electronics and housing
>20 M 500 Vdc, between electronics and housing
background suppression 50...150 mm
RED (630 nm)
according to EN 60947-5-2
0.5 mm amplitude, 10 ... 55 Hz frequency, for every axis (EN60068-2-6)
11 ms (30 G) 6 shock for every axis (EN60068-2-27)
PBT Nickel plated brass
PMMA
IP67 Metal versions type 1 enclosure
M12 - 4 pole connector
60 g. max. connector vers.
I I 3G EX nA II T6 ;
I I 3D EX tD A22 IP67 T85°C
Exempt Risk Group (RG0) according to IEC 62471
SETTING
Setting of S5N-PA/MA...M
To achieve a correct sensor setting, the background or the object to be
suppressied has to be present during self-setting.

- EASY TOUCH (standard detection)
Place the background or the object to be suppressed inside the operating
range.
Press the SET pushbutton until the READY LED turns OFF (1s).
Release the SET pushbutton and wait for the READY LED to turn ON.
The sensor is now ready to detect all objects in the set range
distinguishing them from the suppressed background.
- Fine detection
Place the background or the object to be suppressed inside the operating
range.
Press the SET pushbutton. The READY LED turns OFF.
Keep the SET pushbutton pressed until the READY LED turns on (3s).
The sensor performs a fine adjustment and is ready to detect objects also
very near the suppressed background.
If the green LED flashes, the acquisition has failed.
Datalogic S.r.l.
Via S. Vitalino 13 - 40012 Calderara di Reno - Italy
Tel: +39 051 3147011 - Fax: +39 051 3147205 - www.datalogic.com
Helpful links at www.datalogic.com: Contact Us, Terms and
CABLE VERSION
Conditions, Support.
10
The warranty period for this product is 36 months. See General Terms and
Conditions of Sales for further details.
READY/ERROR LED READY L ED
OUTPUT LED
For information about the disposal of Waste Electrical
and Electronic Equipment (WEEE), please refer to the
website at www.datalogic.com.
© 2018 - 2019 Datalogic S.p.A. and/or its affiliates  ALL RIGHTS
RESERVED.  Without limiting the rights under copyright, no part of this
documentation may be reproduced, stored in or introduced into a retrieval
system, or transmitted in any form or by any means, or for any purpose,
without the express written permission of Datalogic S.p.A. and/or its
affiliates. Datalogic and the Datalogic logo are registered trademarks of
Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. All
other trademarks and brands are property of their respective owners.
Datalogic reserves the right to make modifications and improvements
without prior notification.
821006271 Rev.B
