2.4.1 Power Supply

Power is supplied to the C-BOX 200 through the pins provided on the spring
clamp connector.
The power switch (see Figure 2.6) switches the power supply ON or OFF for
both the C-BOX 200 and the connected scanner.
C-BOX
Pin 1 is also electrically connected to pins 3 and 5, just as pin 2
is electrically connected to pins 4 and 6. This is useful for
external trigger/inputs connections.
The power supply must be between 10 and 30 Vdc only.

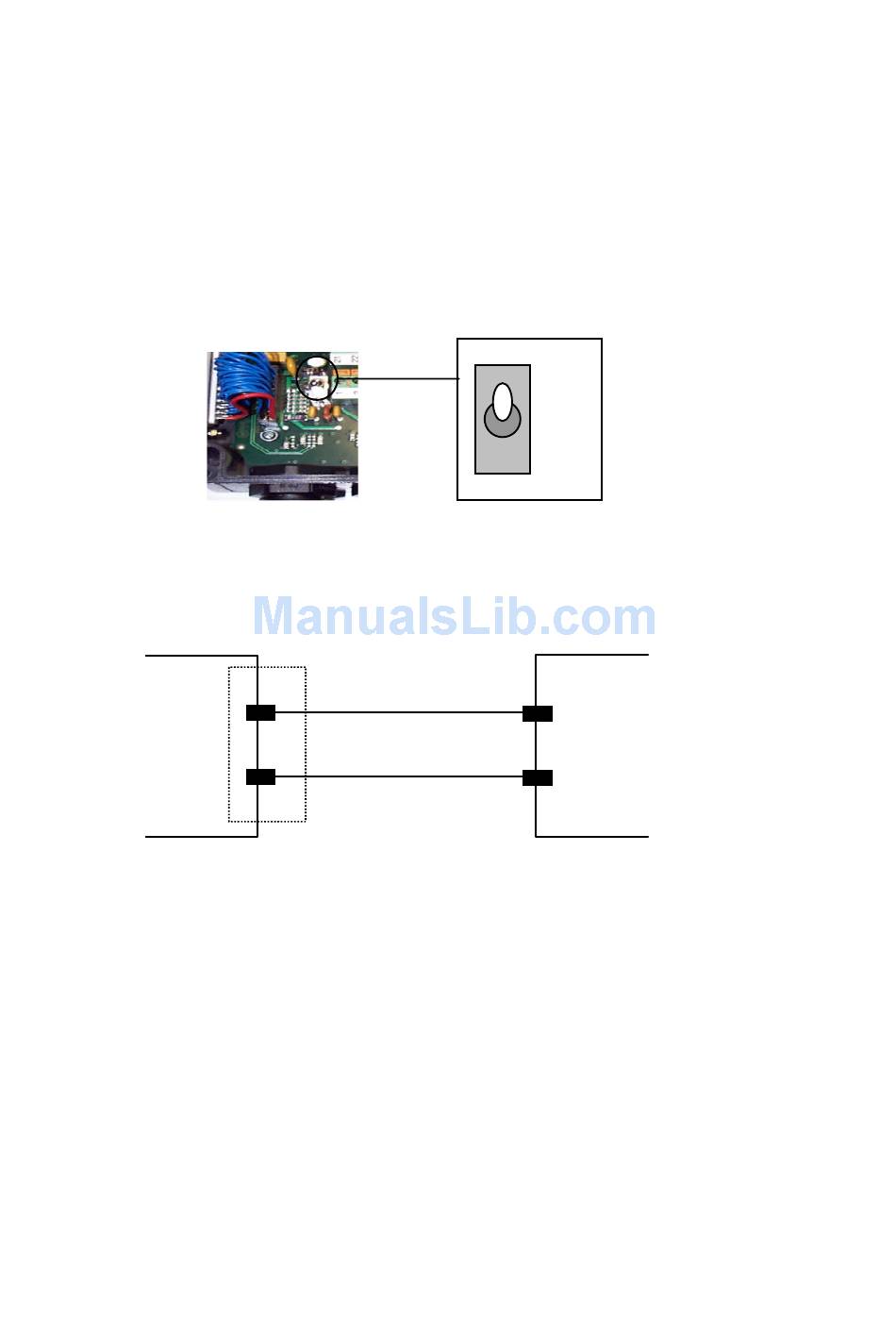

Figure 2.6 - Power switch ON/OFF positions
1 VS
GND
2
Figure 2.7 - Power supply connections
S1
USER INTERFACE
NOTE
ON
OFF
V+ (10 - 30 Vdc)
GND
Installation - 7
