Datalogic BC9XX0-BT Quick Reference Manual

Datalogic BC9XX0-BT Quick Reference Manual

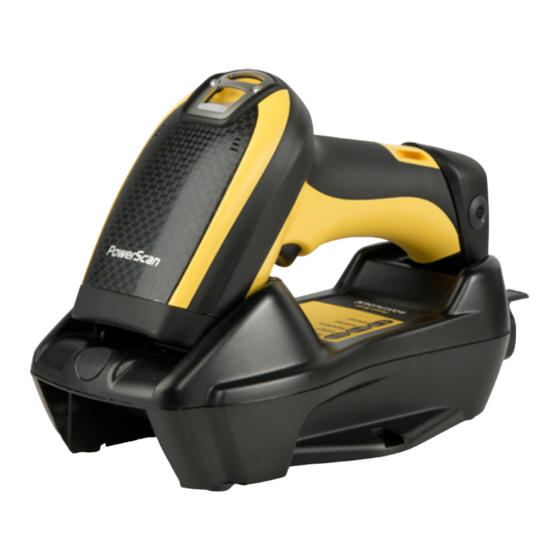

Base station/charger

Advertisement

BC9XX0-BT
Base Station/Charger
Quick Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC9XX0-BT and is the answer not in the manual?

Questions and answers

Summary of Contents for Datalogic BC9XX0-BT

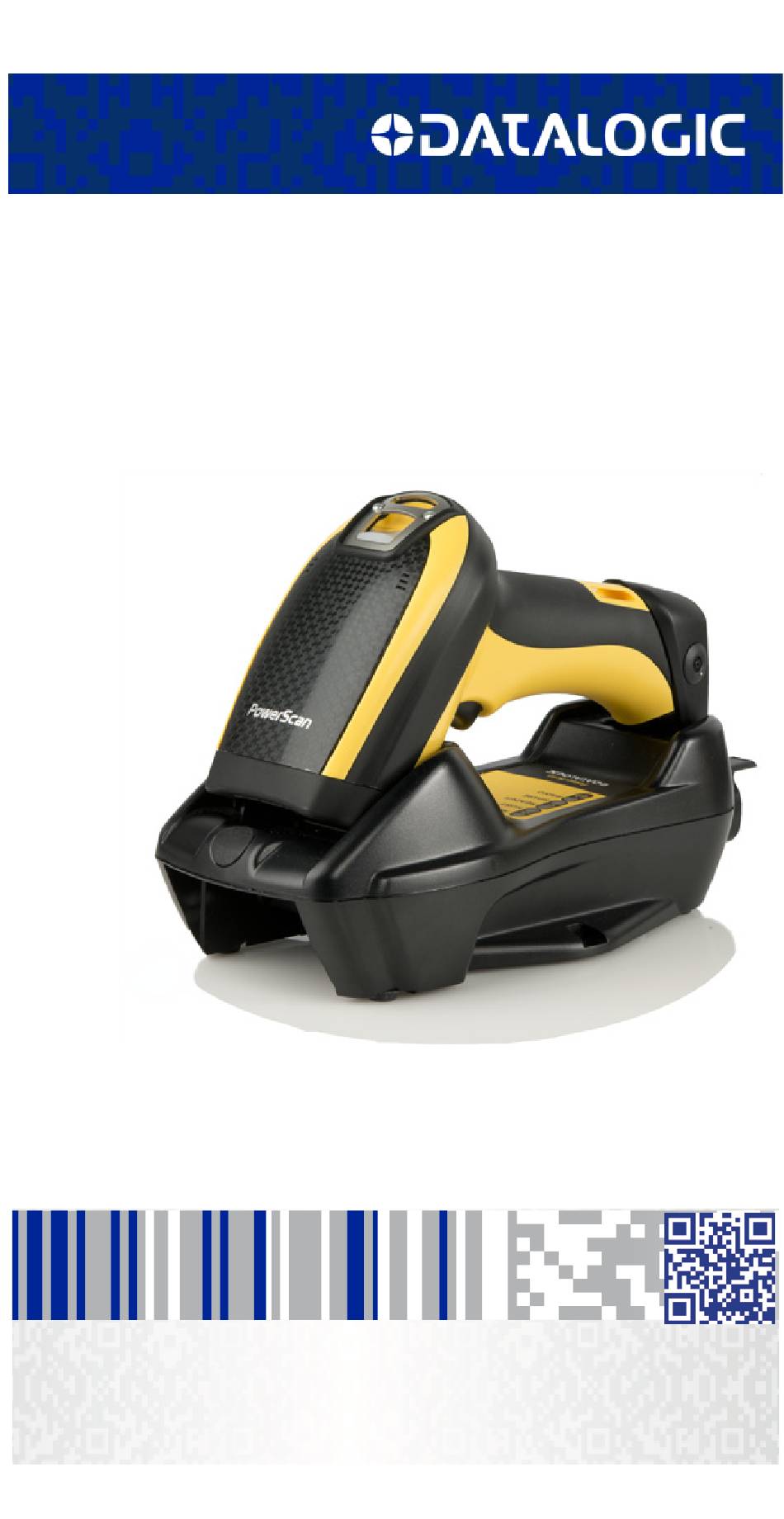

  • Page 1 BC9XX0-BT Base Station/Charger Quick Reference Guide...
  • Page 2 E.U. The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Datalogic Group companies is under license. All other brand and product names may be trademarks of their respective owners.
  • Page 3: Table Of Contents

    Table of Contents Installation ....................... 2 Mounting the BC9XX0-BT Cradle ..............2 Mounting Brackets ................. 2 To change the Bracket:..............3 Permanent Mounting ................4 Mounting for Portable Use ..............4 Mounting the Metal Plate.............. 4 Attaching the Metal Plate to Base..........5 System Connections ................
  • Page 5 Using the BCXX0-BT Base Station The BC9XX0-BT base station, when paired with one or more PowerScan™ BT9X00 readers, builds a Cordless Reading System for the collection, decoding and transmission of bar code data. It can be connected to a Host PC via RS232, USB, or KBD Wedge, and is suited for single-cradle layouts.
  • Page 6: Installation

    Installation Installation To set up your BC9XX0-BT cradle you must: Physically install the cradle. Make all system connections. Configure the BC9XX0-BT cradle. Mounting the BC9XX0-BT Cradle The cradle package contains the following items: • BC9XX0-BT Base Station (with Desk- • 1 Metal Mounting plate top Mounting Bracket installed) •...
  • Page 7: To Change The Bracket

    Mounting the BC9XX0-BT Cradle • Desktop mount bracket has ribs to keep the scanner in place when the cradle is horizontal • Wall mount bracket contains bosses to keep the scanner in place when the cradle is vertical. To change the Bracket: Remove the screw holding the Bracket in place.
  • Page 8: Permanent Mounting

    Mounting the BC9XX0-BT Cradle Permanent Mounting For either desktop or wall mounting, the cradle can be fastened directly to a flat surface using screws (not included). When mounting on drywall, the base should be screwed to a wall stud or supporting beam for additional support.
  • Page 9: Attaching The Metal Plate To Base

    Mounting the BC9XX0-BT Cradle Figure 4. Mounting Plate on wall Attaching the Metal Plate to Base Alternatively, the mount can be attached first to the base, then both can be mounted to a wall as described above. Figure 5. Attaching Mounting plate to base...
  • Page 10: System Connections

    Power Supply Multi-Interface Connector Connecting and Disconnecting the Interface Cable The BC9XX0-BT can be connected to a Host by means of a multi-interface cable, which must be simply plugged into the Host connector, visible on the front panel of the cradle.
  • Page 11 Mounting the BC9XX0-BT Cradle RS232 USB* *The power supply is optional, the cradle can be powered by the USB port. In this case the full charging of an empty battery will take about 10 hours. For intense usage and/or when the system is shut down during the night, the use of an external power supply is recommended.
  • Page 12: Bc9Xx0-Bt Configuration

    Aladdin Help On-Line for more details). Serial Configuration By connecting the BC9XX0-BT to a PC through an RS232 or USB-COM inter- face cable it is possible to send configuration strings from the PC to BC9XX0- Configuration Bar Codes Link the cradle and the reader using the procedures described in the Power- Scan™...
  • Page 13: Selecting The Interface Type

    Selecting the Interface Type To change the defaults refer to the PowerScan™ 9X00 PRG, or to the Datalogic ™ Aladdin Configuration program, both downloadable from the Datalogic web- site. Selecting the Interface Type Upon completing the physical connection between the reader and its host, scan the appropriate bar code for your system’s correct interface type.
  • Page 14 USB COM to simulate RS232 standard interface USB-COM-STD USB-OEM (can be used for OPOS/UPOS/JavaPOS) USB-OEM USB Keyboard with standard key encoding Select USB Keyboard USB Keyboard with alternate key encoding USB Alternate Keyboard a. Download the correct USB COM driver from www.datalogic.com BC 9xx0-BT Cradle...
  • Page 15: Keyboard Interface

    Selecting the Interface Type Keyboard Interface Use the programming bar codes to select options for USB Keyboard and Wedge Interfaces. KEYBOARD AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/ Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &...
  • Page 16: Country Mode

    Selecting the Interface Type Country Mode This feature specifies the country/language supported by the keyboard. COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Country Mode = U.S. Country Mode = Belgium Country Mode = Britain BC 9xx0-BT Cradle...
  • Page 17 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Croatia Country Mode = Czech Republic Country Mode = Denmark Country Mode = France Country Mode = French Canadian Country Mode = Germany Quick Reference Guide...
  • Page 18 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Hungary Country Mode = Italy Country Mode = Japanese 106-key Country Mode = Lithuanian Country Mode = Norway Country Mode = Poland Country Mode = Portugal BC 9xx0-BT Cradle...
  • Page 19 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Romania Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia Country Mode = Switzerland Quick Reference Guide...
  • Page 20: Caps Lock State

    Selecting the Interface Type Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alter- nate key encoding keyboard is selected. It does not apply to USB keyboard ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON...
  • Page 21: Numlock

    Selecting the Interface Type Numlock This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard wedge interface. This only applies to alternate key encoding inter- faces. It does not apply to USB keyboard. ENTER/EXIT PROGRAMMING MODE Numlock = Numlock key unchanged Numlock = Numlock key toggled Quick Reference Guide...
  • Page 22: Technical Features

    235 x 108 x 80 mm System Configuration BC9XX0-BT Max number of devices per base station Having a switching regulator inside, the BC9XX0-BT draws the same power, regardless of the supply voltage. i.e. as the input voltage increases the current drawn decreases BC 9xx0-BT Cradle...
  • Page 23: Datalogic Limited Factory Warranty

    Datalogic service center, with ship- ping charges prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Datalogic service center is located.
  • Page 24: Ergonomic Recommendations

    DAMAGES. Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of spe- cific written instructions for the return of product to Customer, Datalogic will select the car- rier, but Datalogic shall not thereby assume any liability in connection with the return shipment.
  • Page 25: Support Through The Website

    Support Through the Website Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT > Industrial Hand- held Scanners category link. From this page you can select your product...
  • Page 26 Support Through the Website NOTES BC 9xx0-BT Cradle...
  • Page 28 ©2016-2017 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic USA, Inc 959 Terry Street | Eugene, OR 97402 |USA...
