External Components

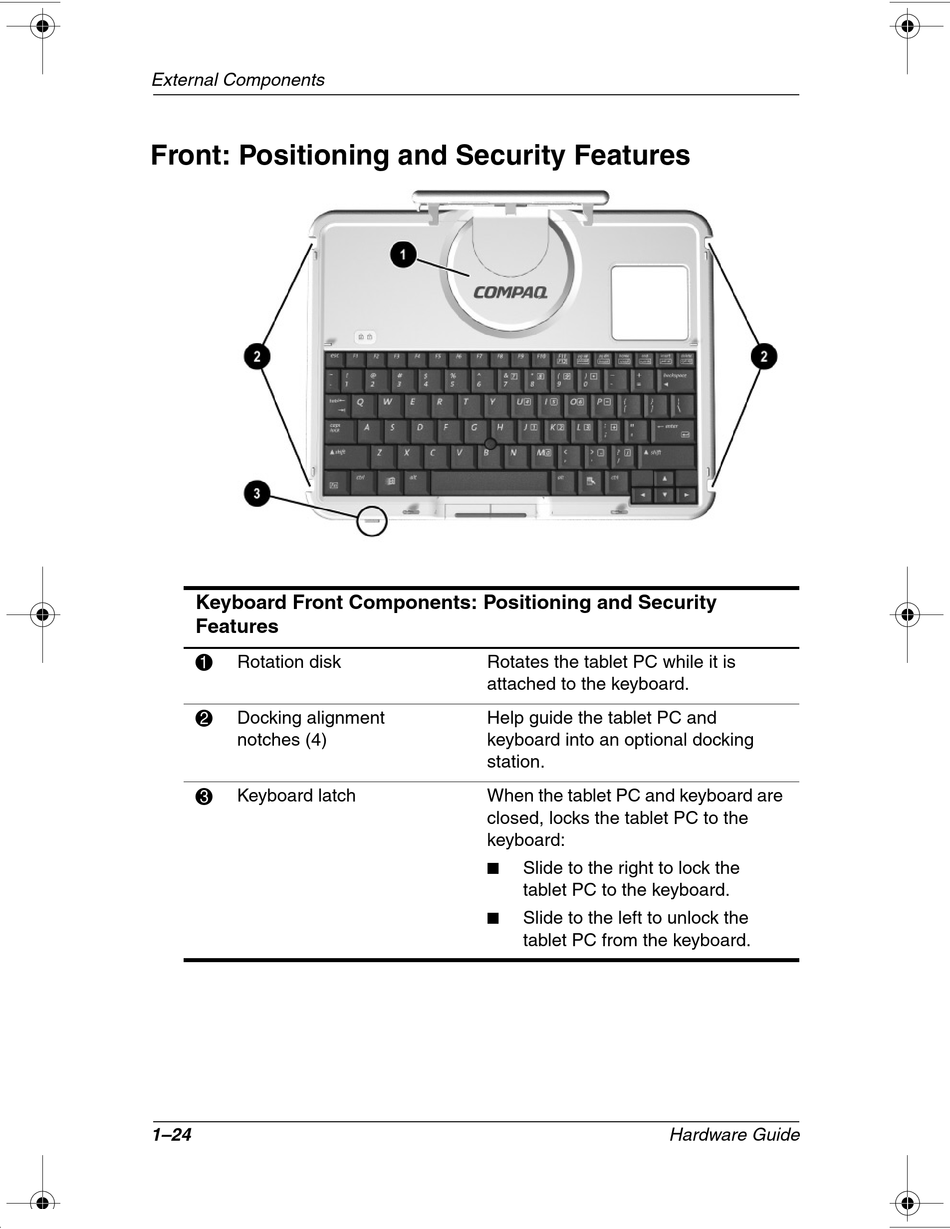

Front: Positioning and Security Features
Keyboard Front Components: Positioning and Security
Features
1
Rotation disk
2
Docking alignment
notches (4)
3
Keyboard latch
1–24
Rotates the tablet PC while it is
attached to the keyboard.
Help guide the tablet PC and
keyboard into an optional docking
station.
When the tablet PC and keyboard are
closed, locks the tablet PC to the
keyboard:
■
Slide to the right to lock the
tablet PC to the keyboard.
■
Slide to the left to unlock the
tablet PC from the keyboard.
Hardware Guide
