External Components

Tablet PC Keyboard Components

This section identifies the hardware components of an optional
tablet PC keyboard.
■
For information about detaching, attaching, and adjusting the
keyboard, see the "External Device Connections" chapter.
■
For information about using the keyboard, see the
"Pen, Command Controls and Keyboards" chapter.

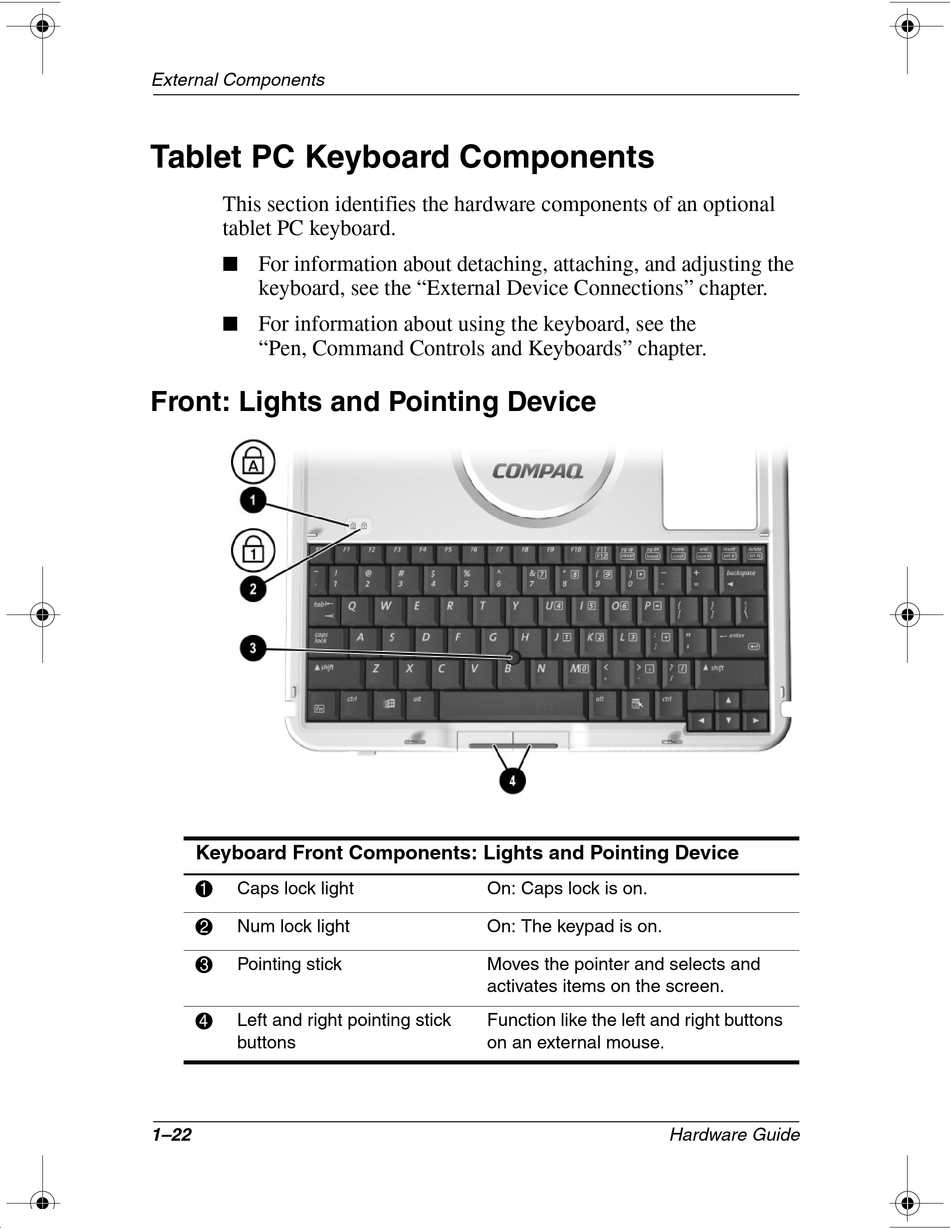

Front: Lights and Pointing Device

Keyboard Front Components: Lights and Pointing Device
1
Caps lock light
2
Num lock light
3
Pointing stick
4
Left and right pointing stick
buttons
1–22
On: Caps lock is on.
On: The keypad is on.
Moves the pointer and selects and
activates items on the screen.
Function like the left and right buttons
on an external mouse.
