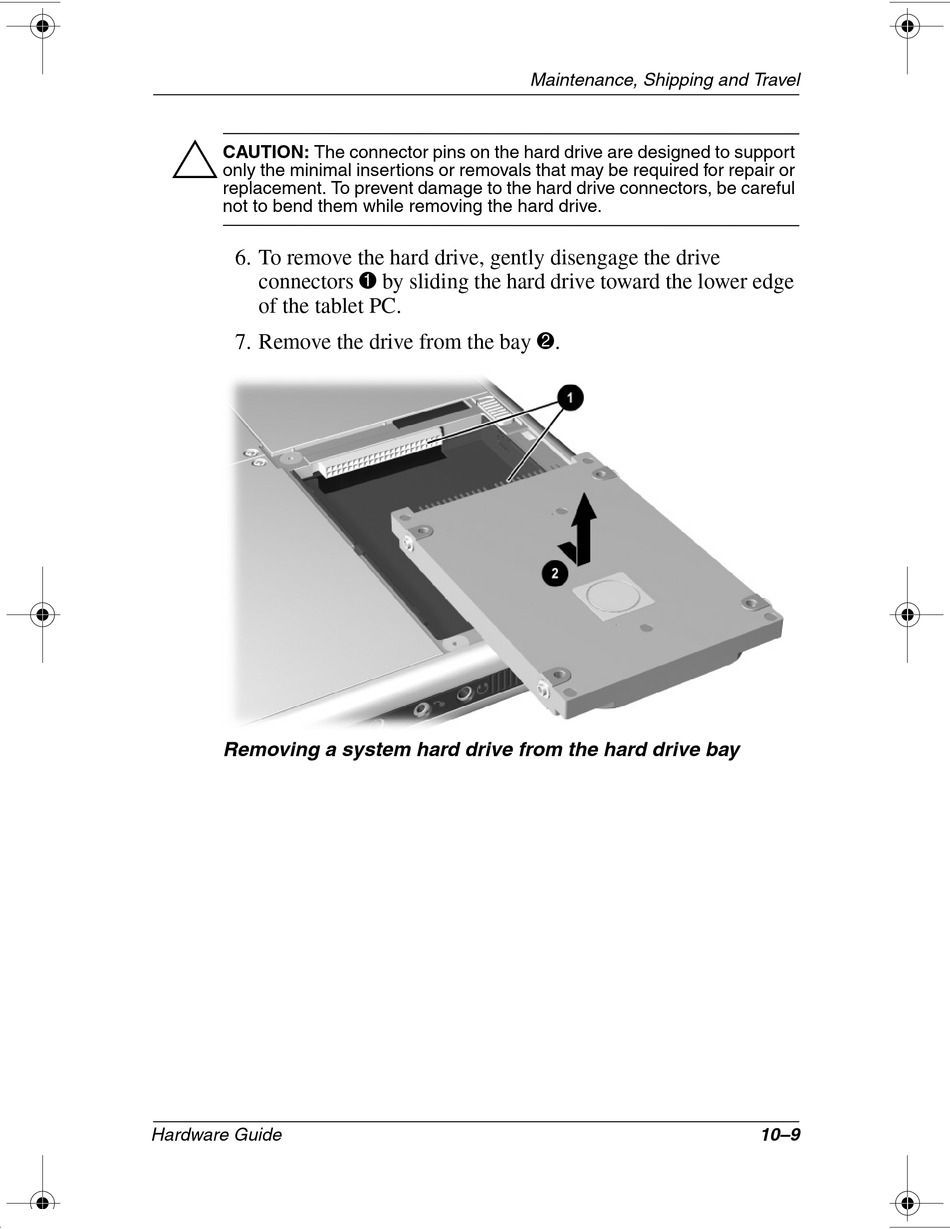

Compaq tc1000 Hardware Manual page 138

Ä
CAUTION: The connector pins on the hard drive are designed to support
only the minimal insertions or removals that may be required for repair or
replacement. To prevent damage to the hard drive connectors, be careful
not to bend them while removing the hard drive.
6. To remove the hard drive, gently disengage the drive
connectors 1 by sliding the hard drive toward the lower edge
of the tablet PC.
7. Remove the drive from the bay 2 .
Removing a system hard drive from the hard drive bay
Hardware Guide
Maintenance, Shipping and Travel
10–9
