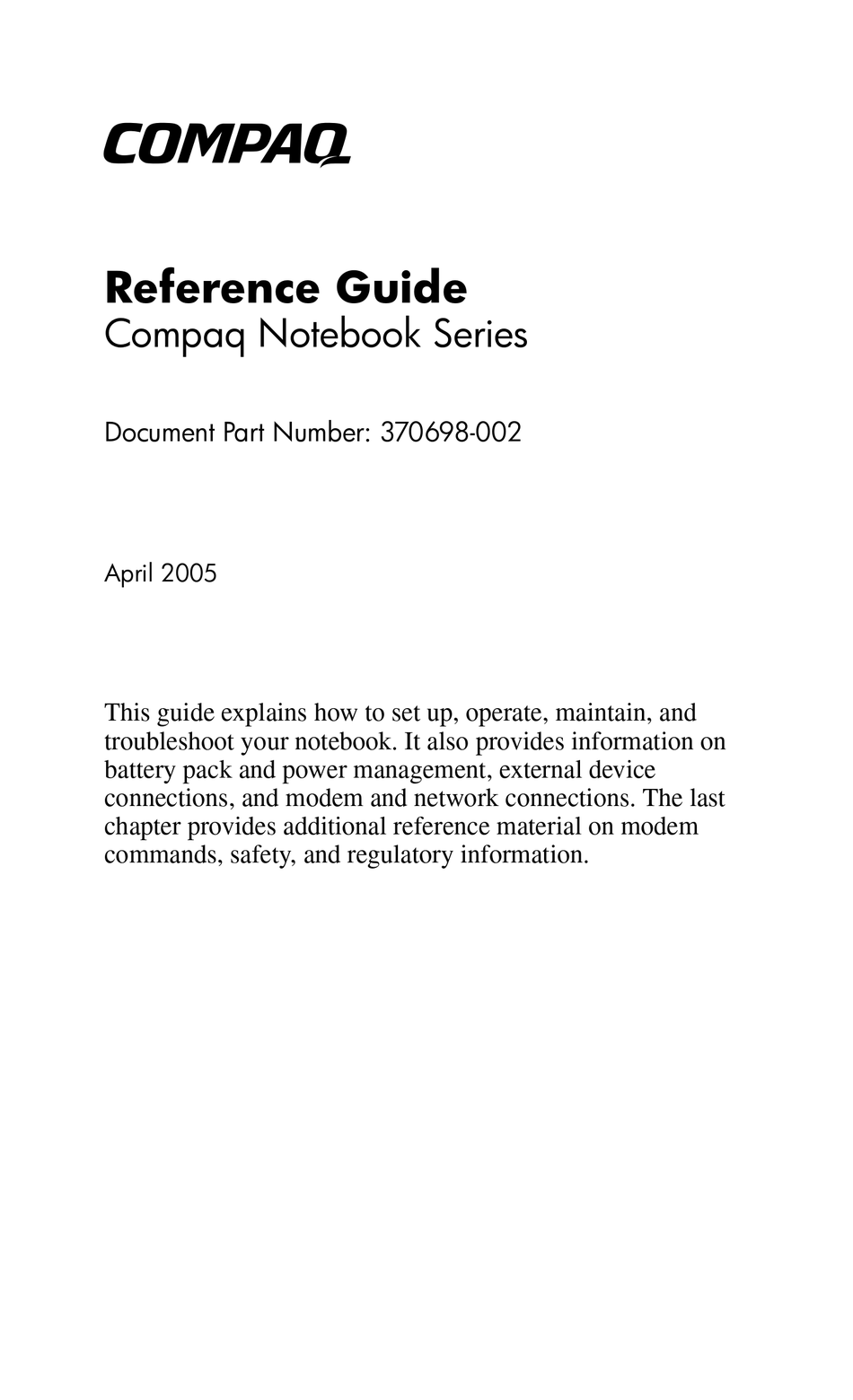

Reference Guide
Compaq Notebook Series
Document Part Number: 370698-002
April 2005
This guide explains how to set up, operate, maintain, and
troubleshoot your notebook. It also provides information on
battery pack and power management, external device
connections, and modem and network connections. The last
chapter provides additional reference material on modem
commands, safety, and regulatory information.
Advertisement
Table of Contents
Related Manuals for Compaq 370698-002
Summary of Contents for Compaq 370698-002
- Page 1 Reference Guide Compaq Notebook Series Document Part Number: 370698-002 April 2005 This guide explains how to set up, operate, maintain, and troubleshoot your notebook. It also provides information on battery pack and power management, external device connections, and modem and network connections. The last chapter provides additional reference material on modem commands, safety, and regulatory information.
- Page 2 HP shall not be liable for technical or editorial errors or omissions contained herein. Reference Guide Compaq Notebook Series Second Edition April 2005 First Edition June 2004 Document Part Number: 370698-002...
-
Page 3: Table Of Contents
1 Getting Started with Your Notebook Identifying Parts of the Notebook ....1–1 Front Panel and Right Panel Components..1–2 Left Panel and Back Panel Components . - Page 4 Contents Using CDs or DVDs......2–10 To Insert or Remove a CD or DVD... . . 2–10 To Play DVD Movies .
- Page 5 4 Modem and Network Connections Using the Modem....... 4–1 To Connect the Modem ..... . . 4–2 Special Restrictions in Certain Countries .
- Page 6 Contents Heat Problems ......6–6 Keyboard and Pointing Device Problems ..6–7 Local Area Network (LAN) Problems .
-
Page 7: Getting Started With Your Notebook
Getting Started with Your Notebook Identifying Parts of the Notebook Components included with the notebook may vary by geographical region and the features you selected. The following tables identify the standard external components included with most notebook models. Reference Guide 1–1... -
Page 8: Front Panel And Right Panel Components
Getting Started with Your Notebook Front Panel and Right Panel Components Main status lights (left to right): power mode, hard drive activity, and battery TouchPad, scroll pad, Click buttons, and an on-off button Power button: turns the notebook on and off Keyboard status lights One-Touch buttons 1–2... -
Page 9: Left Panel And Back Panel Components
Left Panel and Back Panel Components AC adapter jack Universal serial bus (USB) ports RJ-45 jack: connects a network cable S-Video out jack (select models only) External monitor port Cable lock slot (security connector) Reference Guide Getting Started with Your Notebook RJ-11 jack: connects the modem cable PC Card and CardBus slot and... -
Page 10: Bottom Panel Components
Getting Started with Your Notebook Bottom Panel Components Hard drive Battery latch RAM (memory) cover Ä CAUTION: To prevent an unresponsive system and the display of a warning message, install only a Mini PCI device authorized for use in your notebook by the governmental agency that regulates wireless devicesgin your country. -
Page 11: Status Lights
Status Lights The notebook includes a number of status lights that report power and battery status, drive activity, and keyboard functions such as Caps Lock and Num Lock. The following diagram shows the main status lights on the front of the notebook. Power mode ■... - Page 12 Getting Started with Your Notebook The keyboard status lights, located above the keyboard, indicate the states of the keyboard locks. Caps Lock On: Caps Lock is active. Num Lock On: Num Lock is active. (The Keypad Lock must also be on to use the embedded keypad.) Keypad Lock On: The embedded keypad is active (Fn+F8).
-
Page 13: Setting Up Your Notebook
This guide is located on the Web at http://www.compaq.com/ergo on the Documentation CD that is included with the product. When you set up your notebook for the first time, you will connect the AC adapter, charge the battery pack, turn on the notebook, and run the Microsoft®... -
Page 14: Step 2: Connect Ac Power
Getting Started with Your Notebook Step 2: Connect AC Power Ä CAUTION: Use only the AC adapter included with your notebook (or other approved adapter that meets the power requirements of the notebook). Using the wrong AC adapter could damage the notebook or adapter, cause data loss, and may void your warranty. -
Page 15: Step 3: Connect A Phone Line
Step 3: Connect a Phone Line 1. Make sure the telephone line is an analog line, sometimes called a data line. (Do not use a digital line.) 2. Connect the telephone cord (RJ-11) into a telephone jack. 3. Plug the other end of the telephone cord into the RJ-11 modem jack on the notebook. -
Page 16: Step 4: Turn On The Notebook
Getting Started with Your Notebook Step 4: Turn On the Notebook Press the power button above the left side of the keyboard. The notebook boots up, and Windows starts automatically. ✎ If your notebook does not turn on when operating on battery power, the battery pack may be out of power. -
Page 17: Step 5: Set Up Windows
Step 5: Set Up Windows Your notebook has the Microsoft Windows operating system preinstalled on its hard drive. The first time you turn on your notebook, the Windows Setup program runs automatically and includes opportunities to customize your setup. 1. Follow the Setup program instructions on the screen. If the program prompts you to enter the Product ID code, locate the code on the bottom of the notebook. -
Page 18: Basic Operation
Basic Operation Operating Your Notebook You can start and stop your notebook by using the power button. However, alternative methods may be required, depending on power considerations, types of active connections, and startup time. This chapter describes several of these methods. Reference Guide 2–1... -
Page 19: Default Power Settings
Basic Operation Default Power Settings Power mode ON—Power status light is on. OFF—Power status light is off. Standby—Power status light blinks. Hibernation—Power status light is off. You can also customize the way these power modes work. See the “Battery Packs and Power Management” 2–2 To enter this mode Briefly press the power... -
Page 20: To Reset The Notebook
To Reset the Notebook Occasionally, Windows or the notebook may stop responding and you will not be able to turn off the notebook. If this happens, try the following procedures in the order listed: ■ If possible, shut down Windows. Press Shut Down >... -
Page 21: To Use The Touchpad
Basic Operation To Use the TouchPad The TouchPad includes an on-off button so you can turn off the TouchPad to avoid moving the pointer accidentally when you are typing. The indicator light turns off when you turn off the TouchPad. Click buttons. -
Page 22: To Use The Tap To Click Function Of The Touchpad
To Use the Tap to Click Function of the TouchPad The Tap to Click function of your TouchPad is enabled by default. To disable it, follow the instructions included here: 1. Select Start > Control Panel > Printers and Other Hardware > Mouse. -
Page 23: To Use The Function Hot Keys
Basic Operation To Use the Function Hot Keys The combination of the key—a shortcut key sequence—for various system controls. To use a hot key, press and hold then release both keys. This hot key Fn+F1 Fn+F2 Fn+F5 Fn+F8 Fn+F12 Fn+NumLock Fn+Page Up Fn+Page Down Fn+Backspace... -
Page 24: To Use The One-Touch Buttons
To Use the One-Touch Buttons Your notebook includes 5 One-Touch buttons that can start any application or open a document or Web site by pressing a single key. Press a One-Touch button to open the corresponding application, document, or Web site. To program a One-Touch button: 1. -
Page 25: To Use The Windows And Applications Keys
Basic Operation To Use the Windows and Applications Keys The Windows key brings up the Windows Start menu. This is the same as selecting the Start button on the taskbar. The Applications key brings up the shortcut menu for the selected item. -
Page 26: To Type Alternate Graphics Using The Alt Gr Key
To Type Alternate Graphics Using the ALT GR Key Non-U.S. keyboards have an spacebar and keys on the keyboard that show International characters. These special characters appear on the lower-right corner of some keys on the keyboard. For example: Shifted Unshifted ALT GR »... -
Page 27: Using Cds Or Dvds
Basic Operation Using CDs or DVDs To Insert or Remove a CD or DVD Ä CAUTION: Do not remove a CD or DVD while the notebook is reading it, or the notebook could stop responding and you could lose data. To avoid damage to the disk or drive, be sure to press the CD or DVD firmly onto the spindle. -
Page 28: To Play Dvd Movies
InterVideo WinDVD. ✎ For best performance while playing movies on battery power, set the Control Panel Power Scheme to Portable/Laptop. ✎ DVDs can have regional codes embedded in the disc data. These codes prevent DVD movies from being played outside the region of the world in which they are sold. -
Page 29: To Create Or Copy Cds
Basic Operation To Create or Copy CDs If your notebook is equipped with a DVD/CDRW Combo Drive, it also includes CD software that lets you copy or create CDs. Follow the instructions that are included with the software. Read and write quality may vary by media. To Write to DVD Media (Select Models Only) If your notebook is equipped with a DVD+RW/R and CD-RW Combo Drive, you must install your DVD burning software from... -
Page 30: Securing Your Notebook
Securing Your Notebook To Set Up Password Protection To protect your notebook from access by another user, set up the password protection as follows: 1. Select Start > Control Panel > User Accounts, then select your account. 2. Select Create a Password, then set the password. 3. -
Page 31: To Attach An Optional Security Cable
Basic Operation To Attach an Optional Security Cable Your notebook includes a built-in connector to secure the notebook with an optional cable and a lock (not included with the notebook). 1. Wrap the cable around a secure object. 2. Insert the cable into the security cable slot on the notebook. 3. -
Page 32: To Protect Against Viruses
To Protect Against Viruses Virus-protection software can help protect the integrity of your data. This is especially important if you use the Web. Your notebook comes equipped with Norton AntiVirus software. Because new viruses appear frequently, you will also want to keep the program virus definitions up to date. -
Page 33: Taking Care Of Your Notebook
Basic Operation Taking Care of Your Notebook Follow these recommendations to maintain your notebook during everyday use and prevent potential physical damage or data loss. To Protect Your Hard Drive Hard drives, as well as other internal components, are not indestructible and can be damaged by inappropriate handling and operation. -
Page 34: To Safeguard Your Data
To Safeguard Your Data ■ Do not use a pointing device or activate any other device that interrupts operation while the system is starting or stopping. ■ Back up your work regularly. Copy files to diskettes, CDs, DVDs, and other media, or to network drives. ■... -
Page 35: Battery Packs And Power Management
Battery Packs and Power Management Managing Power Consumption When you are running your notebook on battery power, you can maximize operating time without compromising performance. Your notebook is designed to help you reduce power consumption and extend battery life. During idle periods, the notebook automatically enters power-saving modes after specified timeout periods. -
Page 36: How The Notebook Manages Power Automatically
Battery Packs and Power Management How the Notebook Manages Power Automatically Your notebook enters Hibernation and Standby automatically, and turns off the hard drive and display based on values set in Windows. When this occurs No keyboard, pointing device, or other input activity occurs for the specified interval. -
Page 37: To Change Timeout Settings And Create Power Schemes
To Change Timeout Settings and Create Power Schemes You can adjust the length of timeouts after which your notebook automatically shuts down components or enters a power-saving mode. You can also save these settings as a power scheme. 1. Select Start > Control Panel > Performance and Maintenance >... -
Page 38: Using Battery Power
Battery Packs and Power Management Using Battery Power To Check Battery Status From the battery status light » Check the battery status light on the notebook. From the Windows taskbar The Windows taskbar can display a power icon that provides detailed battery status information (see Windows Help for details). -
Page 39: To Respond To A Low-Battery Warning
To Respond to a Low-Battery Warning The notebook automatically alerts you when the battery power drops to a critically low level. The notebook first emits a high-pitched beep or displays a warning message. Then, if you do not restore power within a short time, the notebook goes into Hibernation. -
Page 40: To Get The Most From Your Battery Packs
Battery Packs and Power Management To Get the Most from Your Battery Packs Follow these suggestions to make your battery power last as long as possible: ■ Plug in the AC adapter, especially when using a CD-ROM or DVD drive, or any external connections such as a PC Card or a modem. - Page 41 In addition, follow these suggestions to extend the life of your battery packs: ■ Do not leave battery packs unused for long periods. If you have more than one, rotate them. ■ Unplug the AC adapter when the notebook is not in use. ■...
-
Page 42: Disposing Of A Used Battery Pack
Battery Packs and Power Management Disposing of a Used Battery Pack Å WARNING: There is a risk of fire and chemical burn if a battery pack is handled improperly. Do not disassemble, crush, or puncture a battery pack or short the contacts on a battery pack. Do not expose a battery pack to temperatures higher than 60°C (140°F) or dispose of a battery pack in water or fire. -
Page 43: Modem And Network Connections
Using the Modem You can connect your modem to a telephone line and communicate throughout the world. You can explore the Internet, send and receive e-mail messages, and use your notebook to send and receive faxes. Your notebook contains several software programs that work with your modem: ■... -
Page 44: To Connect The Modem
Modem and Network Connections To Connect the Modem Ä CAUTION: Your built-in modem may not work with multiple phone lines or a private branch exchange (PBX). It cannot be connected to a coin-operated telephone and does not work with party lines. Some of these connections may result in excess electrical voltage and could cause a malfunction in the internal modem. -
Page 45: Special Restrictions In Certain Countries
Special Restrictions in Certain Countries ■ Many countries impose a blackout period after a modem repeatedly fails to connect to a service provider. The number of failed attempts and the period you must wait before trying again differ from country to country. Check with your telephone company. -
Page 46: To Change Your Modem Settings
Modem and Network Connections To Change Your Modem Settings The modem is already set up to be compatible with telephone systems and modems in most areas. However, in some situations, you may have to change modem settings to match local conditions. -
Page 47: Connecting To A Local Area Network (Lan)
Connecting to a Local Area Network (LAN) You can connect to local area networks (LANs). LANs give you access to network resources, such as printers and file servers on your corporate network, and possibly to the Internet. To connect to a LAN: 1. -
Page 48: Using A Wireless Lan Adapter (Select Models Only)
Modem and Network Connections Using a Wireless LAN Adapter (Select Models Only) Your notebook model may include a wireless local area network (WLAN) adapter. A WLAN adapter enables your notebook to connect to a compatible wireless network access point or to another, compatible, wireless-enabled notebook. -
Page 49: Making Wireless Network Connections
Making Wireless Network Connections (Select Models Only) If your notebook includes a wireless on-off button, you can connect by radio to an 802.11 wireless local area network (WLAN) and access computers and other resources on the network. A wireless network provides all the functions of a typical “wired” network, but also provides for “roaming.”... -
Page 50: To Turn Wireless Communication On And Off
Modem and Network Connections To Turn Wireless Communication On and Off For instructions to enable WLAN communications, refer to the Go Wireless booklet included with your notebook (select models only). ✎ Wireless networks and cellular modems are examples of devices that use wireless communication. - Page 51 Turning Off Communication and Ending a Connection 1. Close any files that reside on other network notebooks. 2. To turn off the wireless 802.11 communication without turning off the notebook, press the wireless on-off button. -or- Right-click the wireless network connection icon in the taskbar, then select Disable.
-
Page 52: Add-On Devices
Connecting External Devices To Insert or Remove a PC Card The notebook PC Card slot supports standard Type II and Type III PC Cards (PCMCIA and CardBus). ✎ The location and number of the PC Card slots vary by model series. -
Page 53: Removing A Pc Card
Add-On Devices Removing a PC Card Ä CAUTION: Before removing a PC Card, you must use the Eject Hardware or Safely Remove Hardware icon in the taskbar, or shut down the notebook. Otherwise, you could lose data. 1. Select the Eject Hardware or Safely Remove Hardware icon in the taskbar, select the card you want to remove, then remove the card. -
Page 54: To Connect An Audio Device
To Connect an Audio Device You can plug in an external microphone, external speakers, or headphones. CAUTION: The headphone and line-in jacks are three-terminal stereo jacks. They are not compatible with two-terminal mono plugs. Connecting a mono plug into either of these jacks may damage the notebook. External microphone connector (pink) Audio out (headphones) connector (green) ✎... -
Page 55: To Connect A Tv To Your Notebook (Select Models Only)
Add-On Devices To Connect a TV to Your Notebook (Select Models Only) 1. Plug a standard 4-pin S-Video cable to the S-Video out jack on your notebook (yellow connector on the back panel). Plug the other end of the cable to the S-Video in jack on your television. - Page 56 Using Dual Display Mode You can extend your desktop by connecting an external monitor to your notebook. 1. Select Start > Control Panel > Appearance and Themes > Display. 2. Select the Settings tab. 3. Select the second display, then select the option to extend the desktop.
-
Page 57: To Connect A 1394 Device (Select Models Only)
Add-On Devices To Connect a 1394 Device (Select Models Only) If your notebook has a 1394 port (also known as FireWire), you can use it to connect devices such as audio and video equipment, disk drives, printers, and other notebooks. Attach the device cable to the 1394 port. -
Page 58: Installing Additional Ram (Memory)
Installing Additional RAM (Memory) The notebook has 2 slots that hold 2 RAM modules. At least one slot contains a RAM module installed at the factory. You can use both slots to expand your RAM. To Install a RAM Expansion Module Use only PC2100 DDR-266-MHz or higher RAM. - Page 59 Add-On Devices 6. Match your notebook to the following illustration. Insert the RAM board into the connector at about a 30-degree angle until it is fully inserted. Then press down at both sides until both latches snap closed. 7. Replace the cover. 8.
-
Page 60: To Remove A Ram Expansion Module
To Remove a RAM Expansion Module You may want to remove a RAM module so you can install a larger one. You will need a small Phillips screwdriver for these steps. Ä CAUTION: Your notebook internal components are extremely sensitive to static electricity and can be permanently damaged by it. - Page 61 Add-On Devices 5. Turn the unit bottom-side up, loosen the screws holding the RAM cover, then remove the cover. 6. Match your notebook to the following illustration. Release the 2 latches at the sides of the RAM board, so the free edge of the board pops up.
-
Page 62: Replacing The Hard Drive
Replacing the Hard Drive To Replace the Hard Drive You will need a small Phillips screwdriver for this procedure. 1. Save your work and shut down the notebook. If you are not sure whether the notebook is off or in Hibernation, briefly press the power button. -
Page 63: To Replace The Hard Drive Holder
Add-On Devices To Replace the Hard Drive Holder If you are installing a new hard drive that does not have a holder, you can remove the holder parts from the hard drive you are removing. You will need a small Phillips screwdriver for this procedure. -
Page 64: To Prepare A New Hard Drive
Add-On Devices To Prepare a New Hard Drive When you install a new hard drive, you also need to prepare it to be able to work with your notebook. If you want to restore the Windows software and operating system that were originally installed on your notebook, follow the system recovery procedures described in the “Troubleshooting”... -
Page 65: Troubleshooting
Troubleshooting Your Notebook This chapter contains solutions to many types of problems you might have with your notebook. Try the solutions one at a time, in the order in which they are presented. Here are some other sources of information for troubleshooting: ■... -
Page 66: Audio Problems
Troubleshooting Audio Problems If No Sound Is Audible ■ If your model has a volume control, press the to increase the volume. ■ Select the speaker icon on the taskbar (if present). Clear the Mute all check box if selected. If your model has an audio mute button, press it so the indicator light goes off. -
Page 67: Cd-Rom And Dvd Problems
CD-ROM and DVD Problems If You Cannot Boot from a CD or DVD ■ Make sure the CD or DVD is bootable. ■ Make sure the CD-ROM/DVD drive is selected as the boot device. See the change the boot sequence. ■... -
Page 68: Display Problems
Troubleshooting If the Notebook Cannot Read a CD or DVD ■ For a single-sided CD or DVD, make sure the disc is placed in the drive with the label facing up. ■ Clean the disc. ■ Wait 5 to 10 seconds after closing the tray to give the notebook time to recognize the disc. -
Page 69: Hard Drive Problems
If an External Display Does Not Work ■ Check the connections. ■ The external monitor may not be detected. In the BIOS Setup utility, try setting Video Display Device to Both in the System Devices menu. ■ If you are using a TV connected to the optional S-Video port, you must activate the TV. -
Page 70: Heat Problems
Troubleshooting If Files Are Corrupted ■ Open My Computer, and the disk you want to scan. Select File > Properties. Select the Check Now box under the Error-checking section of the Tools tab. ■ Run the virus-scanning program. ■ If necessary, you can format the hard disk and reinstall the original factory software using the system recovery features described in this guide. -
Page 71: Keyboard And Pointing Device Problems
Keyboard and Pointing Device Problems ✎ Use these suggestions for built-in or external devices. If the Pointer Is Difficult to Control ■ Adjust the pointer controls by selecting Start > Control Panel > Printers and Other Hardware > Mouse. ■ Ensure that your thumb or palm is not pressing or near the TouchPad on-off button while typing. -
Page 72: Local Area Network (Lan) Problems
Troubleshooting Local Area Network (LAN) Problems If the Built-In Network Adapter Does Not Connect to the LAN ■ Check all cables and connections. Try connecting at a different network station, if available. ■ Make sure the LAN cable is Category 3, 4, or 5 for 10Base-T operation, or Category 5 for 100Base-TX operation. -
Page 73: Memory Problems
Memory Problems If a Message Reports That You Are Out of Memory ■ Make sure drive C is not running low on free space. ■ If you are having memory problems while running MS-DOS programs, select Start > Help and Support. Use the MS-DOS or Application and Software troubleshooter in Windows Help. -
Page 74: Modem Problems
Troubleshooting Modem Problems If the Modem Seems Slow ■ Excess static or noise on a line reduces the overall transmission speed of the modem connection. If necessary, contact your telephone company about fixing this type of problem. ■ If you are dialing internationally, line noise is often a problem that is difficult or impossible to eliminate. - Page 75 If the Modem Dials Incorrectly ■ Check the telephone number you entered, including any digits required for outside access or long distance. ■ In Control Panel, open Phone and Modem Options. Check the dialing options—look for duplicate digits for outside access or long distance.
- Page 76 Troubleshooting If the Modem Dials, But You Cannot Hear It ■ If your model has an audio mute light, make sure it is turned off. If it is on, press the audio mute button. ■ Check the speaker volume setting. ■...
-
Page 77: Pc Card (Pcmcia) Problems
If the Modem Clicks Repeatedly, But Does Not Connect ■ Make sure you are using an analog telephone line (2, 3, or 4 wires). You must not use a digital line. In a hotel, ask for a data line. ■ Check all cables and connections. -
Page 78: Performance Problems
Troubleshooting If a PC Card Modem Is Not Working Disable the internal modem: 1. Open the hardware Device Manager. Select Start > Control Panel > Performance and Maintenance > System. 2. Select Modem to list the current modem devices. 3. Select the internal modem, then select the option to disable the modem. -
Page 79: Power And Battery Pack Problems
If the Notebook Stops Responding ■ Press ctrl+alt+del that is not responding. ■ Press the power button for at least 4 seconds to turn off and reset the notebook. Unsaved data will be lost. Then press the power button again to turn the notebook back on. ■... - Page 80 Troubleshooting ■ Make sure you are using only the AC adapter included with your notebook (or other approved adapter that meets the power requirements of the notebook). Do not use a 60-watt, 3.16-amp adapter. ■ Move the notebook away from any nearby heat source. Unplug the AC adapter and allow the battery pack to cool down.
-
Page 81: Printing Problems
If the Notebook Does Not Enter Standby Mode as Expected ■ If you have a connection to another computer, the notebook will not enter Standby if the connection is active. ■ If the notebook is performing an operation, it normally waits for the operation to finish before going into Standby. -
Page 82: Serial, Parallel And Usb Problems
Troubleshooting Serial, Parallel and USB Problems If a Serial Mouse Does Not Work ■ Make sure you followed the manufacturer’s installation instructions completely and have installed the mouse properly. If not, repeat the procedure. ■ Make sure the port connection is secure. ■... -
Page 83: Startup Problems
If the Serial or Parallel Port Is Not Working ■ Make sure the port connection is secure. ■ Check the port settings in Control Panel. Open the hardware Device Manager, then select Ports (COM & LPT). If the USB Port Is Not Working ■... - Page 84 Troubleshooting If the Notebook Will Not Boot from the Diskette Drive ■ Make sure the diskette drive is selected as the boot device. See the ■ If you are using a USB diskette drive, use the BIOS Setup utility to make sure Legacy USB Support is enabled. If your notebook also has a built-in diskette drive, use the BIOS Setup utility Boot menu to make sure the USB diskette drive is the first device under Removable Drive.
-
Page 85: Wireless Problems
Wireless Problems If You Have Problems with Wireless 802.11 Communication ■ Make sure the wireless indicator light is on. ■ Make sure you are using the correct SSID and channel settings. ■ Make sure you are in range of an access point (for an infrastructure connection) or other wireless notebook (for an ad hoc connection). -
Page 86: The Network
Troubleshooting If You Have Trouble Connecting to Another Notebook in the Network Neighborhood or My Network Places ■ Wait a few minutes, then press notebooks on the network. ■ Select Start > Search > Notebooks or People to locate the notebook. -
Page 87: Configuring Your Notebook
Configuring Your Notebook The BIOS Setup utility helps you configure your notebook operation. To Run the BIOS Setup Utility The BIOS (basic input and output system) Setup utility enables you to make changes to the notebook system configuration and to tailor the operation of your notebook to your individual work needs. -
Page 88: Main Menu
Troubleshooting The following tables describe BIOS settings for the BIOS version at publication. If your BIOS is a different version, some settings may differ from those shown. Main Menu Setting BIOS Revision System Time System Date Language Internal Hard Disk UMA Video Memory Memory... -
Page 89: System Devices Menu
System Devices Menu Setting Video Display Device External Pointing Device Legacy USB Support Wake On LAN from Power Off Reference Guide Description Sets whether the built-in display automatically switches to an external display, if one is detected. Disables the internal pointing devices when an external pointing device is connected. -
Page 90: Security Menu
Troubleshooting Security Menu Setting User Password is Administrator Password is Set User Password Administrator Password Require Password on Boot Internal hard drive lock 6–26 Description Shows if a user password is set. Shows if an administrator password is set. Press enter to set, change, or clear the user password. -
Page 91: Boot Menu
Boot Menu Setting Hard Drive +Removable Devices CD-ROM Drive Built-in LAN Exit Menu Setting Save Changes and Exit Discard Changes and Exit Get Default Values Reference Guide Description Shows the order of boot devices. Move the entries to change the order. If the notebook has more than one device in a + category, you can select the one scanned. -
Page 92: Updating Software And Drivers From The Web
Web Software and driver updates for your notebook are available for download. For more information, visit the Web site at http://www.compaq.com/consumersupport. Using System Recovery Features The notebook system recovery process provides several options for recovering optimal system functionality. The Notebook Recovery Solution consists of the following restore CDs: ■... -
Page 93: Safeguarding Your Data
Safeguarding Your Data Software or devices added to the notebook can cause your system to become unstable. To safeguard your documents, store personal files in the My Documents folder and periodically create a backup copy of My Documents. Setting System Restore points is also recommended. -
Page 94: Operating System (Os) Cd Repair
Troubleshooting Operating System (OS) CD Repair To repair the operating system without deleting your personal data, use the standard Microsoft OS CD that was shipped with the notebook. This CD contains the following preinstalled operating systems: ■ Microsoft Windows XP Home or Pro (depending on configuration) ■... -
Page 95: Os Cd Reinstall
OS CD Reinstall If other recovery efforts do not successfully repair the notebook, you can reinstall the operating system. Å WARNING: Personal data and software you have installed on the notebook will be lost during the OS CD reinstall. To protect your data, make a backup copy of My Documents before reinstalling your operating system. -
Page 96: Reinstalling Drivers
Troubleshooting 11. Select Format the partition using the NTFS file system (Quick) and press this drive will delete all current files. 12. Press to format the drive. The reinstallation process begins. This process takes 1 to 2 hours to complete. The notebook restarts in Windows after the process is complete. - Page 97 1394 port connecting 5–6 location 1–3 AC adapter connecting 1–8 jack location 1–3 adjusting brightness 2–6 monitor resolution 5–4 volume 2–6 ALT GR key 2–9 alternate graphics (ALT GR) 2–9 antivirus software 2–15 AT commands 4–4 audio adjusting volume 2–6 device connection 5–3 jack location 1–3 mute button 1–3...
