External Components

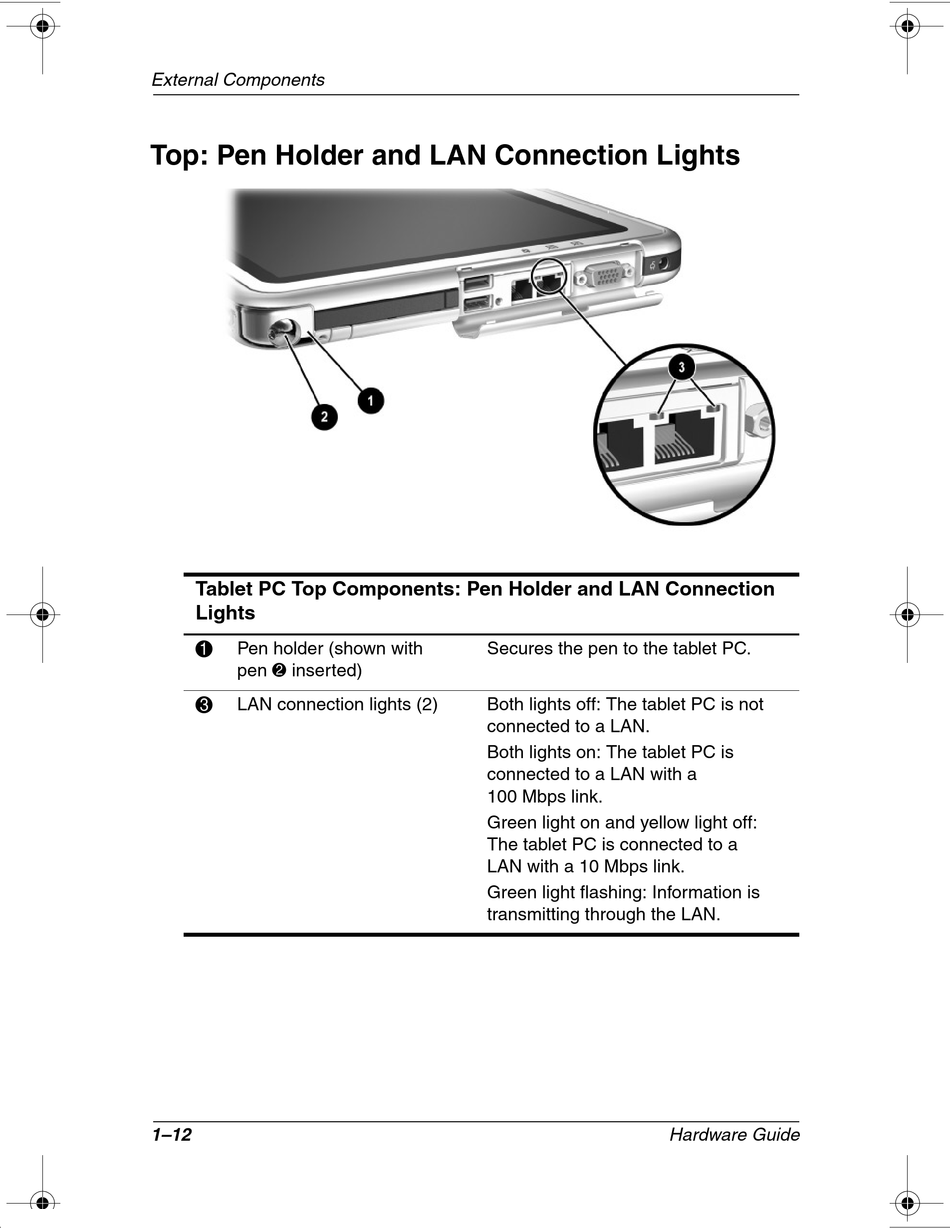

Top: Pen Holder and LAN Connection Lights
Tablet PC Top Components: Pen Holder and LAN Connection
Lights
1
Pen holder (shown with
pen 2 inserted)
3
LAN connection lights (2)
1–12
Secures the pen to the tablet PC.
Both lights off: The tablet PC is not
connected to a LAN.
Both lights on: The tablet PC is
connected to a LAN with a
100 Mbps link.
Green light on and yellow light off:
The tablet PC is connected to a
LAN with a 10 Mbps link.
Green light flashing: Information is
transmitting through the LAN.
Hardware Guide
