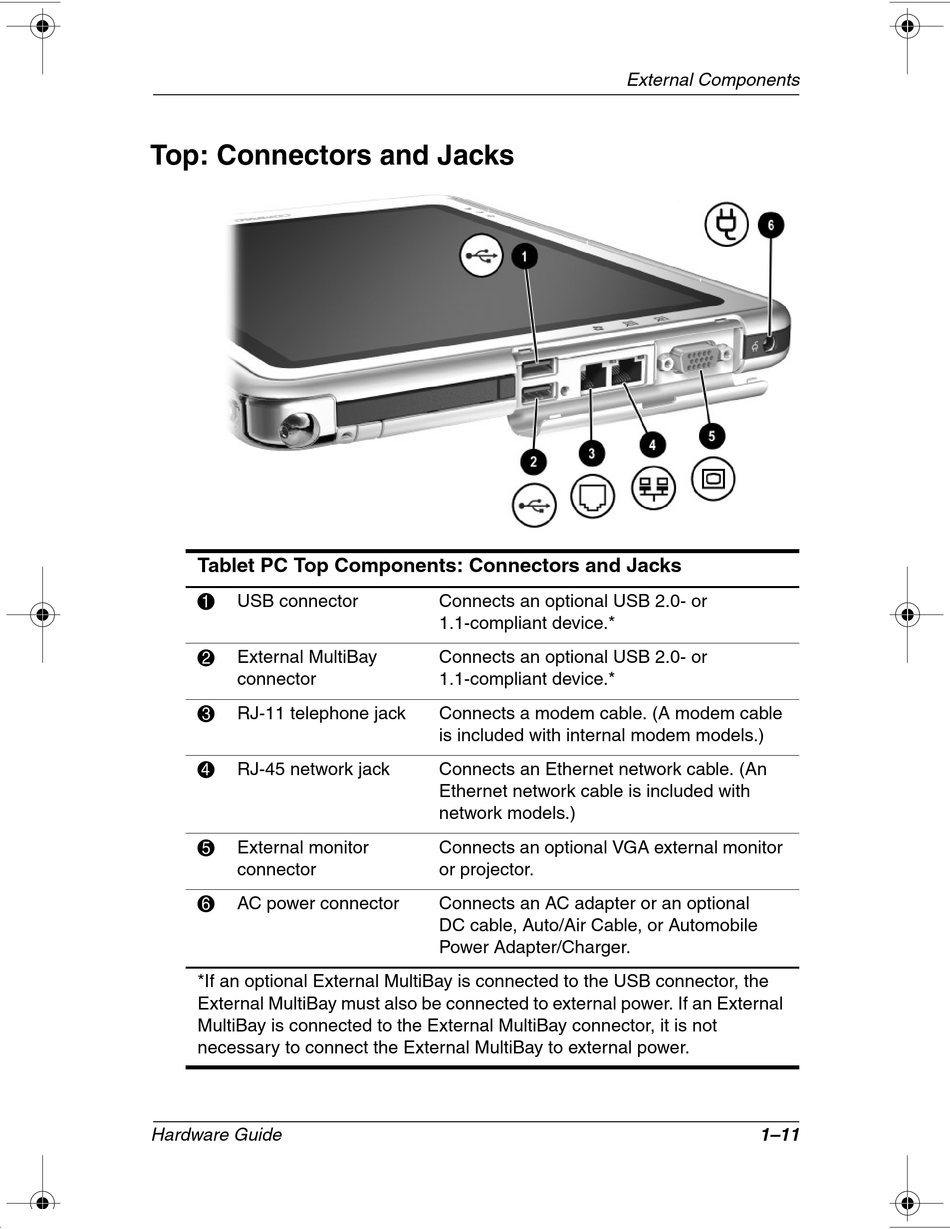

Top: Connectors and Jacks
Tablet PC Top Components: Connectors and Jacks
1
USB connector
2
External MultiBay
connector
3
RJ-11 telephone jack
4
RJ-45 network jack
5
External monitor
connector
6
AC power connector
*If an optional External MultiBay is connected to the USB connector, the
External MultiBay must also be connected to external power. If an External
MultiBay is connected to the External MultiBay connector, it is not
necessary to connect the External MultiBay to external power.
Hardware Guide
Connects an optional USB 2.0- or
1.1-compliant device.*
Connects an optional USB 2.0- or
1.1-compliant device.*
Connects a modem cable. (A modem cable
is included with internal modem models.)
Connects an Ethernet network cable. (An
Ethernet network cable is included with
network models.)
Connects an optional VGA external monitor
or projector.
Connects an AC adapter or an optional
DC cable, Auto/Air Cable, or Automobile
Power Adapter/Charger.
External Components
1–11
