Nice Roll-Control2 Instructions And Warnings For Installation And Use

Remote control of roller blinds, venetian blinds, pergolas, curtains, awnings and blind motors with electronic or mechanical limit switches
Hide thumbs Also See for Roll-Control2:

Advertisement

Table of Contents

Roll-Control2
Remote control of roller blinds, venetian blinds,
pergolas, curtains, awnings and blind motors
with electronic or mechanical limit switches
EN - Instructions and warnings for installation and use
1
v3.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roll-Control2 and is the answer not in the manual?

Questions and answers

Related Manuals for Nice Roll-Control2

Summary of Contents for Nice Roll-Control2

  • Page 1 Roll-Control2 Remote control of roller blinds, venetian blinds, pergolas, curtains, awnings and blind motors with electronic or mechanical limit switches EN - Instructions and warnings for installation and use v3.6...

  • Page 2: Important Safety Information

    CAUTION! – Read this manual before attempting to install the device! Failure to observe recommendations included in this manual can be dangerous or cause a violation of the law. The manufacturer, NICE SpA Oderzo TV Italia will not be held responsible for any loss or dam- age resulting from not following the instructions of operating manual.

  • Page 3: Description And Features

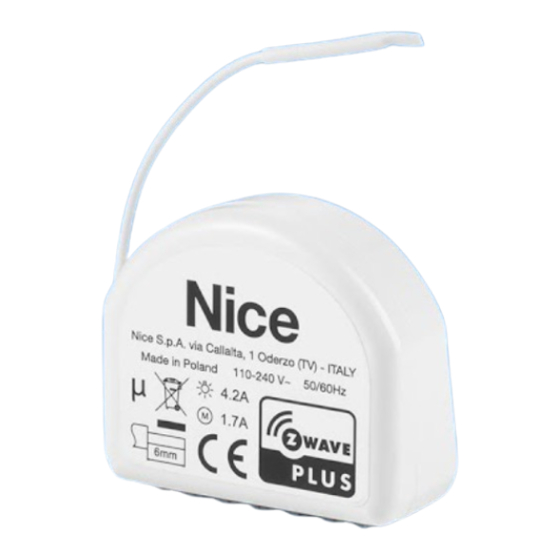

    The NICE Roll-Control2 is a device designed to control roller blinds, awnings, venetian blinds, curtains and pergolas. The NICE Roll-Control2 enables precise positioning of roller blinds or venetian blind slats. It enables you to control connected devices either through the Z-Wave® network or through a switch connected directly to it. The device is equipped with energy monitoring.

  • Page 4: Specifications

    SPECIFICATIONS Table A1 - Roll-Control2 - Specifications Power supply 100-240 V~ 50/60 Hz Rated load current 2 A for motors with compensated power factor (inductive loads) Compatible load types single-phase AC motors Required limit switches Electronic or mechanic Recommended external...

  • Page 5: Installation

    INSTALLATION 4.1 Before the installation Connecting the device in a manner inconsistent with this manual can cause risk to health, life or material damage. • Don't power the device before fully assembling it in the mounting box. • Connect only in accordance with the pictures below. •...
  • Page 6 ADDING TO Z-WAVE NETWORK Adding (Inclusion) – the Z-Wave device learning mode enabling you to add the device to the existing Z-Wave network. 5.1 Adding manually To add the device to the Z-Wave network manually: 1. Power the device. If the device isn't added to the Z-Wave network, the device LED indicator glows red. 2.
  • Page 7 CALIBRATION Calibration is a process during which the device learns the position of the limit switches and a motor characteristic. Calibration is mandatory for the device to correctly recognize a roller blind position. The procedure consists of a full automatic movement, between the limit switches (a couple of up/down movements). 7.1.

  • Page 8: Operating The Device

    • If you control only a venetian blind position (not slats rotation) the slats return to their previous position (in aperture level 0 - 95%). Monostable switches – click to move Example of the switch design: Table A2 - Roll-Control2 - Monostable switches - click to move Parameter: 20. Switch type...
  • Page 9 Monostable switches – hold to move Example of the switch design: Table A3 - Roll-Control2 - Monostable switches - hold to move Parameter: 20. Switch type Description: This parameter determines which switch types and mode S1 and S2 inputs operate with.
  • Page 10 1 or 2 Favorite position – unavailable Single bistabile switch Example of the switch design: Table A6 - Roll-Control2 - Single bistable switch Parameter: 20. Switch type Description: This parameter determines which switch types and mode S1 and S2 inputs operate with.
  • Page 11 The default value is 0 - this means that the roller blind moves between the maximum end positions. LED indicators The built-in LED shows the current status of the device when the device is powered. Table A8 - Roll-Control2 - LED colors and their meaninig Color Description...

  • Page 12: Resetting To Factory Defaults

    After a few seconds the device is restarted, which is signalled with the the red color of the LED indicator. ENERGY METERING The device enables the energy consumption monitoring. Roll-Control2 reports energy consumption, but doesn't report instantaneous power. Data is sent to the main Z-Wave controller.
  • Page 13 Go to Devices. Select the relevant device from the list. Select the Associations tab. Specify a group and devices to associate with. Save your changes. Table A9 - Roll-Control2 - Command Classes and Commands Group Profile Command Class & Command Group Name...
  • Page 14 Autocalibration failed HORIZONTAL_SLATS_ANGLE_1 22 (0x16) Manual calibration HORIZONTAL_SLATS_ANGLE_2 23 (0x17) Table A11 - Roll-Control2 - Operating mode: Roller blind, Awning, Pergola, Curtain; Venetian blind 90°; Venetian blind 180° Parametr 20 - Switch type Switch Single Click Double Click Value Name...

  • Page 15: Advanced Parameters

    In the NICE interface device configuration is available as a simple set of options in the Advanced Settings section. If you use Yubii Home app, many of the following parameter settings can be changed in the device settings section.
  • Page 16 Table A12 - Roll-Control2 - Advanced parameters Parameter Description Size Default Value Available Values 0 - reaching the limit switch isn't detected. In this case parateter 150 Calibration is set to 4 - The parameter should be modified only when 155 - Motor Manual calibration.
  • Page 17 (0x05) = 0x03 This value is ignored if On/Off periods is not defined. This value is ignored if On/Off periods value is less than this value. Supported Command Classes Table A14 - Roll-Control2 - Supported Command Classes Command Class Version...
  • Page 18 Basic CC Table A15 - Roll-Control2 - Basic CC Command Value Mapping command Mapping value Basic Set [0xFF] Multilevel Switch Set [0xFF] Basic Set [0x00] Multilevel Switch Set Multilevel Switch Set Start Level Change Basic Set [0x00] to [0x63] [0x00], [0x63]...
  • Page 19 Altering capabilities NICE Roll-Control2 uses different set of Window Covering Parameter IDs depending on the values of the 2 parameters: Calibration status (parameter 150), Operating mode (parameter 151). Table A19 - Roll-Control2 - Altering capabilities Calibration status Operating mode Supported Window Covering Parameter IDs...
  • Page 20 NICE reserves all rights to revise or update its products, software, or documentation without any obligation to notify any individual or entity. NICE logo is a trademark of NICE SpA Oderzo TV Italia All other brands and product names referred to herein are trademarks of their respective holders.
  • Page 21 Nice SpA Oderzo TV Italia www.niceforyou.com info@niceforyou.com...
