Nice TITAN 912L Installation & Reference Manual

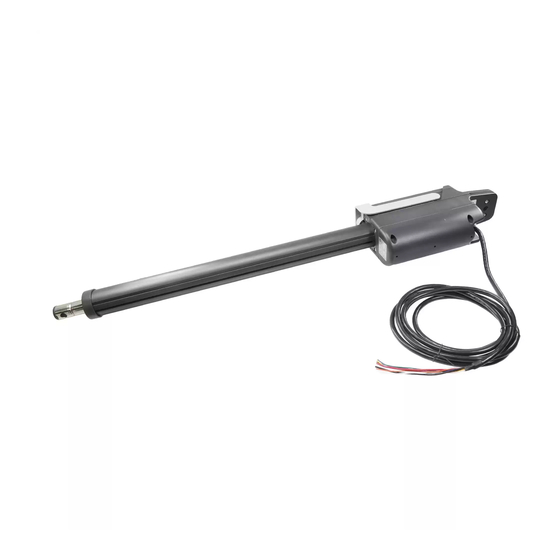

Linear actuator
Hide thumbs Also See for TITAN 912L:
Table of Contents

Advertisement

Quick Links

Download this manual
912L LA
TITAN12L/12L1 912L
Linear actuator
EN - Installation and reference manual
IMPORTANT - These instructions apply only to the 912L actuator. Control box
installation/operation is described in a separate control box manual.
www.ApolloGateOpeners.com | (800) 878-7829 | Sales@ApolloGateOpeners.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN 912L and is the answer not in the manual?

Questions and answers

Related Manuals for Nice TITAN 912L

Summary of Contents for Nice TITAN 912L

  • Page 1 912L LA TITAN12L/12L1 912L Linear actuator EN - Installation and reference manual IMPORTANT - These instructions apply only to the 912L actuator. Control box installation/operation is described in a separate control box manual. www.ApolloGateOpeners.com | (800) 878-7829 | Sales@ApolloGateOpeners.com...

  • Page 2: Table Of Contents

    TITAN 912L Linear Actuator Installation Reference Manual CONTENTS SECTION 1: TITAN 912L ACTUATOR OVERVIEW ........3 SECTION 1: TOOLS NEEDED FOR INSTALLATION .........4 SECTION 2: INSTALLATION SAFETY ............4 SECTION 3: ACTUATOR - MECHANICAL INSTALLATION .......5 MANUALLY SET GATE OPEN/CLOSE LIMITS .....12 RUN ACTUATOR CABLE(S) TO CONTROL BOX ....13...

  • Page 3: Section 1: Titan 912L Actuator Overview

    Installation Reference Manual SECTION 1: TITAN 912L ACTUATOR OVERVIEW Congratulations on selecting a Nice TITAN 912L actuator. With proper selection, system design, installation and maintenance this operator should provide years of reliable operation. This manual covers ONLY the installation of the TITAN 912L actuator.

  • Page 4: Section 1: Tools Needed For Installation

    ’ The gate for which the gate operator is intended to be used should itself be installed correctly so that it is level and plumb and the gate opens easily and evenly. ’ Note that Nice swing gate systems are not intended for installation on an incline. WARNING...

  • Page 5: Section 3: Actuator - Mechanical Installation

    TITAN 912L Linear Actuator Installation Reference Manual SECTION 4: ACTUATOR - MECHANICAL INSTALLATION INSTALL PIVOT ARM TO GATE: PULL-TO-OPEN 1. Securely mount the pivot arm to the hinge post (FIG-1A). 2. If necessary, cut pivot arm for correct placement of the actuator mounting hole. Measurements are taken from the center of pivot of the gate hinge.
  • Page 6 TITAN 912L Linear Actuator Installation Reference Manual INSTALL PIVOT ARM TO GATE: PUSH-TO-OPEN 1. Securely mount the pivot arm to the hinge post (FIG-1B). 2. If necessary, cut pivot arm for correct placement of the actuator mounting hole. Measurements are taken from the center of pivot of the gate hinge.
  • Page 7 TITAN 912L Linear Actuator Installation Reference Manual MOUNT ACTUATOR TO PIVOT ARM 1. Mount actuator to pivot arm as shown in FIG-2A using 1/2” bolt and lock nut. Tighten until secure. 1/2”x 3.5” BOLT PIVOT ARM ACTUATOR 1/2”LOCK NUT FIG-2A: INSTALLING ACTUATOR TO PIVOT ARM 2.
  • Page 8 TITAN 912L Linear Actuator Installation Reference Manual AFFIX GATE BRACKET TO ACTUATOR ARM If the gate bracket is not already installed on the actuator arm, mount gate bracket to actuator arm with the pivot bolt, nut, and washers per images below.
  • Page 9 TITAN 912L Linear Actuator Installation Reference Manual POSITION GATE BRACKET ON GATE 1. Place gate in: a) CLOSED position for PUSH-TO-OPEN configurations (FIG-4A). b) OPEN position for PULL-TO-OPEN configuration (FIG-4B). 2. With actuator arm fully retracted, rotate entire actuator on the pivot arm around until the gate bracket attached to the actuator is positioned on a supporting structure of gate.
  • Page 10 TITAN 912L Linear Actuator Installation Reference Manual AFFIX GATE BRACKET TO GATE 1. Weld the gate bracket to the gate supporting structure (FIG-5A) or use supplied 3/8” bolts and nuts from kit (FIG-5B). CAUTION Never weld parts to the gate or posts when the control board...
  • Page 11 TITAN 912L Linear Actuator Installation Reference Manual OPEN MECHANICAL RELEASE 1. Lift up the rubber key cap (Detail 1). 2. Insert key and turn 90° clockwise (Detail 2). 3. Lift up the mechanical release (Detail 3). 4. After mechanical release is opened, the actuator arm can now be freely extended and retracted manually.

  • Page 12: Manually Set Gate Open/Close Limits

    Installation Reference Manual MANUALLY SET GATE OPEN/CLOSE LIMITS SET TITAN 912L OPEN & CLOSE LIMITS To mechanically “teach” the actuator the rough open and close limits, ensure the machanical release is still open on the actuator, then move the gate manually as follows: IMPORTANT! If done carefully, manually setting the gate limits may not require further adjustment.

  • Page 13: Run Actuator Cable(S) To Control Box

    TITAN 912L Linear Actuator Installation Reference Manual RUN ACTUATOR CABLE(S) TO CONTROL BOX RUN ACTUATOR CABLE(S) TO CONTROL BOX Run the cable of the actuator closest to the control box through a hole (with rubber grommet) drilled in the bottom on the control box. If necessary, entry may be made elsewhere on the control box.
  • Page 14 TITAN 912L Linear Actuator Installation Reference Manual SECTION 5: TITAN 912L ACTUATOR WIRING Input +12V a F/W Jumper Learn MOTOR MOTOR Force +12V Close Open Antenna SlowDown +12V Input Receiver AutoClose Options Open Open Close Stop Stop Reset Close Reset...

  • Page 15: 936 Control Board Wiring: Pull-To-Open

    AutoClose +24V Exit TITAN 912L Linear Actuator Options Installation Reference Manual Open Open Close 936 CONTROL BOARD WIRING: PULL-TO-OPEN Stop Fire Stop Connect harness wires to MOTOR 1 for your chosen configuration per Instruction 9A, 9B, 9C, or 9D. IMPORTANT!

  • Page 16: 936 Control Board Wiring: Push-To-Open

    Open Open Close Fire Stop TITAN 912L Linear Actuator Stop Installation Reference Manual +12V 936 CONTROL BOARD WIRING: PUSH-TO-OPEN Reset Input Close Reset Edge Alarm BlueBus Safety 936 CONTROL BOARD WIRING: PUSH-TO-OPEN Sol. Lock Limit 1 Bypass 15A Fuse Limit 2...

  • Page 17: 1050 Control Board Wiring: Pull-To-Open

    TITAN 912L Linear Actuator Installation Reference Manual 1050 CONTROL BOARD WIRING: PULL-TO-OPEN 1050 CONTROL BOARD WIRING: PULL-TO-OPEN MOTOR 1 MOTOR 1 IMAGE 9C-1: 1050 BOARD - PULL-TO-OPEN - SINGLE GATE MOTOR 1 MOTOR 2 WIRE 2nd ACTUATOR WITH LONGER HARNESS...

  • Page 18: 1050 Control Board Wiring: Push-To-Open

    TITAN 912L Linear Actuator Installation Reference Manual 1050 CONTROL BOARD WIRING: PUSH-TO-OPEN 1050 CONTROL BOARD WIRING: PUSH-TO-OPEN MOTOR 1 MOTOR 1 IMAGE 9D-1: 1050 BOARD - PUSH-TO-OPEN - SINGLE GATE MOTOR 1 MOTOR 2 WIRE 2nd ACTUATOR WITH LONGER HARNESS...
  • Page 19 TITAN 912L Linear Actuator Installation Reference Manual MERCURY 310 CONTROL BOARD WIRING NOTICE Mercury 310 motor wiring is the same for push-to- open and pull-to-open gate installations. WIRE 2nd ACTUATOR WITH LONGER HARNESS TO MOTOR 2 SINGLE GATE DUAL GATE IMAGE 9E: MERCURY 310 - SINGLE &...

  • Page 20: Setting Actuator Fine Limits

    IMPORTANT: DUAL GATE SYSTEMS! To set the fine limits for two TITAN 912L actuators in a dual gate syatem: 1. Plug in only the primary actuator to MOTOR 1 input. 2. Determine limits for primary actuator per INSTRUCTION 10A or 10B (below).
  • Page 21 TITAN 912L Linear Actuator Installation Reference Manual SETTING ACTUATOR FINE LIMITS: PUSH-TO-OPEN 1. Open the actuator mechanical release, remove two Torx 25 screws, and lift off cover. 2. Remove plastic cap covering the two adjustment wheels (IMAGE 10-1). 3. Press the CLOSE button on the control board. The gate should close until it hits the CLOSE limit switch (LED = RED).

  • Page 22: Actuator Cable Replacement Wiring

    TITAN 912L Linear Actuator Installation Reference Manual SECTION 7: ACTUATOR CABLE REPLACEMENT WIRING ACTUATOR CABLE REPLACEMENT WIRING TORX 25 TOOL MECHANICAL TERMINAL STRIP RELEASE (OPEN) LOCATION LIFT OFF COVER IMAGE 11-2: LOCATE TERMINAL STRIP IMAGE 11-1: REMOVE COVER 1. Open mechanical release, remove two Torx 25 screws, and lift off cover (IMAGE 11-1).

  • Page 23: Section 4: Part Drawings

    TITAN 912L Linear Actuator Installation Reference Manual SECTION 8: PART DRAWINGS Cover, Upper, Motor Motor, Electric, 12V, Complete Bracket, Pivot, Weld-On Limit Switch Lever Lock Cylinder Kit, Key and Latch Bracket, Pivot, Bolt-On Motor, Electric, 12V Bracket, Gate Attach Cover, Bottom,...

  • Page 24: Warranty

    This warranty will be interpreted, construed, and enforced in all respects in the name plate of a manufacturer other than HySecurity or Nice and they are not a accordance with the laws of the State of Washington, without reference to its part of the base model.
