- Page 1 SingleSmart-Control Turning single electrical devices on or off remotely EN - Instructions and warnings for installation and use v3.4...
-
Page 2: Warnings And General Precautions
GENERAL INFORMATION ABOUT NICE Z-Wave® SYSTEM The NICE SingleSmart-Control is a wireless smart home automation system, based on the Z-Wave® protocol. All the available devices can be controlled using a computer (PC, Mac), smartphone or tablet. Z-Wave® devices can receive and repeat the signal, increasing the Z-Wave®... -
Page 3: Product Description

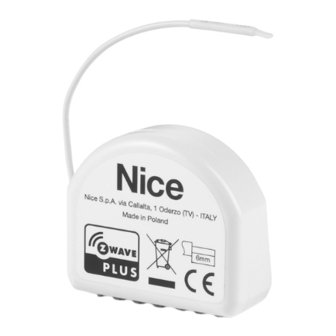

PRODUCT DESCRIPTION The remotely operated NICE SingleSmart-Control is designed to turn electrical devices or circuits on and off. SingleSmart-Control enables the control of one device or a circuit. The compact size of this product enables its installation in the housings of other devices. -
Page 4: Installation
6. If the LED indicator lights up, the device is powered. 7. Now add the device to the Z-Wave® network (see chapter 5). 100-240V AC 24-30V DC S1 S2 Figure 1: Example connection of SingleSmart-Control • S1 - 1 button terminal • S2 - 2 button terminal •... - Page 5 ADDING TO AND REMOVING FROM Z-WAVE® NETWORK 5.1 - Adding device to Z-Wave® (Inclusion) It's the Z-Wave® device learning mode. It enables adding the device to an existing Z-Wave® network. 5.1.1 - Adding device to Z-Wave® manually 1. Power on the device. 2.
- Page 6 The device can activate scenes in the Z-Wave® controller by sending the scene ID and an attribute of a specific action using Central Scene Command Class. By default all actions are activated. Change settings of parameters 40 and 41 to disable scene activation for selected actions. Table A1 - SingleSmart-Control - Activating scenes Switch Action...
- Page 7 7.3 - Values sent to association groups depending on settings Values are sent using Basic Command Class. Values in table A2 below are the default values and they can be adjusted using parameters 156-161. Table A3 - SingleSmart-Control - Values sent to association groups depending on settings Parameter Parameter...
- Page 8 4. Visual indicator indicates the Z-Wave® network range (range signaling modes are described in section 6.6.2 below). 5. To exit the Z-Wave® range test, press the button briefly. 8.3 - Z-Wave® range tester signaling modes Table A4 - SingleSmart-Control - Z-Wave® range tester signaling modes Color Status Description The device attempts to establish a direct communication with the main controller.
-
Page 9: Factory Settings Reset
FACTORY SETTINGS RESET Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave® controller and user configuration is deleted. Make sure that restoring the factory settings doesn't damage the connected device. We recommend disconnecting the device first. Note Resetting the device isn't the recommended way of removing the device from the Z-Wave®... -
Page 10: Advanced Parameters
The settings can be adjusted through the Z-Wave® controller to which the device is added. The way of adjusting settings might differ depend- ing on the controller. In this interface the parameters are presented as simple options in Advanced Settings of the device. Table A5 - SingleSmart-Control - Advanced parameters Default Parameter... - Page 11 Table A5 - SingleSmart-Control - Advanced parameters Default Parameter Parameter Description Available setting setting size This parameter defines the duration 0 – infinite 600 (10min) 4 [bytes] of an alarm sequence. When time 1-32400 (1s-9h, 1s step) – duration 35. Alarm configura- set in this parameter passes, the tion –...
- Page 12 11.1 - Z-Wave® specifications • Generic device class: GENERIC_TYPE_SWITCH_BINARY • Specific device class: SPECIFIC_TYPE_POWER_SWITCH_BINARY • Supported command classes can be found in table A5 below. Table A6 - SingleSmart-Control - Z-Wave® supported command classes Command Class Version Secure COMMAND_CLASS_ZWAVEPLUS_INFO [0x5E]...
-
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Table A9 - SingleSmart-Control - Technical Specifications Feature Description Power Supply 100-240 V~ 50/60 Hz or 24-30 V Rated Load Current 6.5 A Compatible Load Types resistive or incandescent only Active Element micro-gap relay μ Maximum Wire Length Recommended Wire 0.2–2.0 mm... -
Page 14: Product Disposal
CAUTION! – Local legislation can envisage serious fines in the event of abusive disposal of this product. DECLARATION OF CONFORMITY Hereby, NICE S.p.A., declares that the radio equipment SingleSmart-Control is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.niceforyou.com/en/professional-area/... - Page 15 Nice SpA Oderzo TV Italia www.niceforyou.com info@niceforyou.com...
