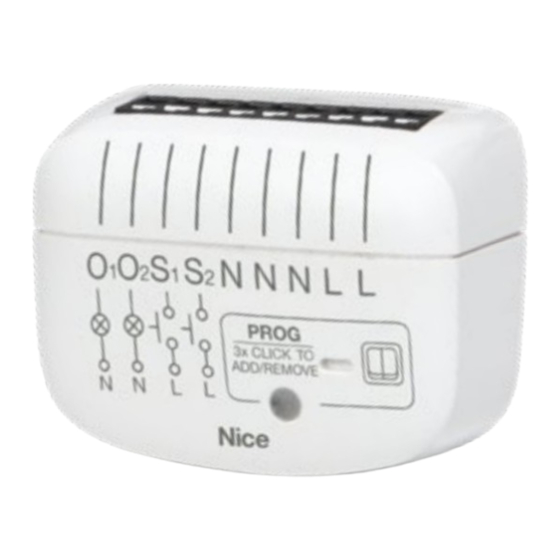

Nice Yubii On/Off-Control2 Instructions And Warnings For Installation And Use
Turning electrical devices on/off remotely
Hide thumbs
Also See for Yubii On/Off-Control2:
Related Manuals for Nice Yubii On/Off-Control2
Summary of Contents for Nice Yubii On/Off-Control2
- Page 1 Yubii modules On/Off-Control2 Turning electrical devices on/off remotely EN - Instructions and warnings for installation and use v1.8...
-
Page 2: Warnings And General Precautions
• This manual contains important instructions and warnings for personal safety. Read carefully all parts of this manual. If in doubt, suspend installation immediately and contact Nice Technical Assistance. • The product packaging materials must be disposed of in full compliance with local regulations. -
Page 3: Specifications
SPECIFICATIONS Applied load and the device can be damaged if the applied load is inconsistent with the technical specifications! Don't connect loads greater than those recommended! Table 1 - On/Off-Control2 - Hardware parameters Parameter Value Power supply voltage range: 100 - 240 VAC 50/60 Hz Radio protocol: Z-Wave (800 series chip) EU: 868.4 MHz, 869.85 MHz... -
Page 4: Installation
INSTALLATION 4.1 - Safety notes Danger of electrocution! • On/Off-Control2 is designed to operate in an electrical home installation. Faulty connection or use can result in a fire or electric shock. • All works on the device can be performed only by a qualified and licensed electrician. Observe national regulations. •... - Page 5 4.3 - Staircase switch connection PROG 3x CLICK TO ADD/REMOVE Figure 3: Momentary switches ×1 PROG 3x CLICK TO ADD/REMOVE Figure 4: Momentary switches ×2 PROG 3x CLICK TO ADD/REMOVE Figure 5: Stair-cross switches ×1 PROG 3x CLICK TO ADD/REMOVE Figure 6: Stair-cross switches ×2...
-
Page 6: Operating The Device
ADDING THE DEVICE TO Z-WAVE NETWORK • In case of problems with adding, removing, or using S1 or S2 wall switch, use the PROG-button instead (located on the housing). • The device tries to add itself after pressing the switch 3 times. Adding (Inclusion) - The Z-Wave device learning mode enables adding the device to the existing Z-Wave network. - Page 7 POWER AND ENERGY CONSUMPTION • On/Off-Control2 requires the power consumption of connected load equal to 5 W or greater to correctly measure the power and energy. • Power measurement can contain mains voltage fluctuations within +/- 10%. • On/Off-Control2 stores periodically (every hour) the consumption data in the device memory. Disconnecting the module from the power sup- ply doesn't erase stored energy consumption data.
-
Page 8: Additional Functionality
ADDITIONAL FUNCTIONALITY 10.1 - Overheat and overcurrent protection After detecting overheat or overcurrent On/Off-Control2: • switches off its relay/relays. • sends information about switching off the relay/relays to the controller. • sends Notification Report to the controller. 10.2 - Activating scenes On/Off-Control2 can activate scenes in the Z-Wave controller by sending the scene ID and attribute of a specific action using the Central Scene Command Class. -
Page 9: Advanced Parameters
ADVANCED PARAMETERS On/Off-Control2 enables customizing its operation to user’s needs. The settings are available in the interface of the Z-Wave controller. Param- eters available for On/Off-Control2 are listed in the table below: Table 5 - On/Off-Control2 - Advanced parameters Available Default Parameter Description... - Page 10 Z-WAVE SPECIFICATION Table 6 - On/Off-Control2 - NIF Command Class Command Class Version Secure COMMAND_CLASS_ZWAVEPLUS_INFO [0x5E] None COMMAND_CLASS_SWITCH_BINARY [0x25] Highest Available COMMAND_CLASS_ASSOCIATION [0x85] Highest Available COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION [0x8E] Highest Available COMMAND_CLASS_ASSOCIATION_GRP_INFO [0x59] Highest Available COMMAND_CLASS_TRANSPORT_SERVICE [0x55] None COMMAND_CLASS_SECURITY [0x98] None COMMAND_CLASS_SECURITY_2 [0x9F] None COMMAND_CLASS_MULTI_CHANNEL [0x60] Highest Available...
- Page 11 Table 8 - On/Off-Control2 - Multichannel CC Endpoint 1 Generic Type GENERIC_TYPE_SWITCH_BINARY Specific Type SPECIFIC_TYPE_NOT_USED COMMAND_CLASS_ZWAVEPLUS_INFO [0x5E] COMMAND_CLASS_SWITCH_BINARY [0x25] COMMAND_CLASS_ASSOCIATION [0x85] COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION [0x8E] COMMAND_CLASS_ASSOCIATION_GRP_INFO [0x59] COMMAND_CLASS_SECURITY [0x98] Supported CC COMMAND_CLASS_SECURITY_2 [0x9F] COMMAND_CLASS_SUPERVISION [0x6C] COMMAND_CLASS_METER [0x32] COMMAND_CLASS_NOTIFICATION [0x71] COMMAND_CLASS_APPLICATION_STATUS [0x22] COMMAND_CLASS_PROTECTION [0x75] Description Channel 1 Endpoint 2...
- Page 12 Table 9 - On/Off-Control2 - ASSOCIATION GROUP INFORMATION CC Root Group Profile Command Class & Command Group Name COMMAND_CLASS_DEVICE_RESET_LOCALLY [0x5A] DEVICE_RESET_LOCALLY_NOTIFICATION [0x01] COMMAND_CLASS_INDICATOR [0x87] INDICATOR_REPORT [0x03] COMMAND_CLASS_CENTRAL_SCENE [0x5B] CENTRAL_SCENE_NOTIFICATION [0x03] General: Lifeline Lifeline (0x00: 0x01) COMMAND_CLASS_SWITCH_BINARY [0x25] SWITCH_BINARY_REPORT [0x03] COMMAND_CLASS_METER [0x32] METER_REPORT [0x02] COMMAND_CLASS_NOTIFICATION [0x71] NOTIFICATION_REPORT [0x05]...
- Page 13 Table 11 - On/Off-Control2 - Switch Binary CC Root Device / Endpoint 1 Command Value State Description SET/REPORT 0 (0x00) Channel 1 1-99 (0x01-0x63) Channel 1 … reserved Channel 1 SET/REPORT 255 (0xFF) Channel 1 Endpoint 2 Command Value State Description SET/REPORT 0 (0x00)
- Page 14 Table 15 - On/Off-Control2 - Protection CC Root Type State Description Local Unprotected - The device isn't protected, and can be operated normally with the user interface. Local No operation possible – button can't change relay state. Other functionalities, such as menu, are available. Unprotected - The device accept and respond to all RF Commands.
- Page 15 NICE reserves all rights to revise or update its products, software, or documentation without any obligation to notify any individual or entity. NICE logo is a trademark of NICE SpA Oderzo TV Italia All other brands and product names referred to herein are trademarks of their respective holders.
- Page 16 Nice SpA Oderzo TV Italia www.niceforyou.com info@niceforyou.com...
