Nice Roll-Control2 Instructions And Warnings For Installation And Use

Remote control of blinds awnings, venetian blinds, curtains and pergolas

Advertisement

Quick Links

Roll-Control2
remote control of
blinds awnings, venetian blinds,
curtains and pergolas
EN - Instructions and warnings for installation and use
v1.0

Advertisement

Table of Contents
loading

Summary of Contents for Nice Roll-Control2

  • Page 1 Roll-Control2 remote control of blinds awnings, venetian blinds, curtains and pergolas EN - Instructions and warnings for installation and use v1.0...
  • Page 2: Important Safety Information

    CAUTION! – Read this manual before attempting to install the device! Failure to observe recommendations included in this manual may be dangerous or cause a violation of the law. The manufacturer, NICE SpA Oderzo TV Italia will not be held responsible for any loss or damage resulting from not following the instructions of operating manual.
  • Page 3: Description And Features

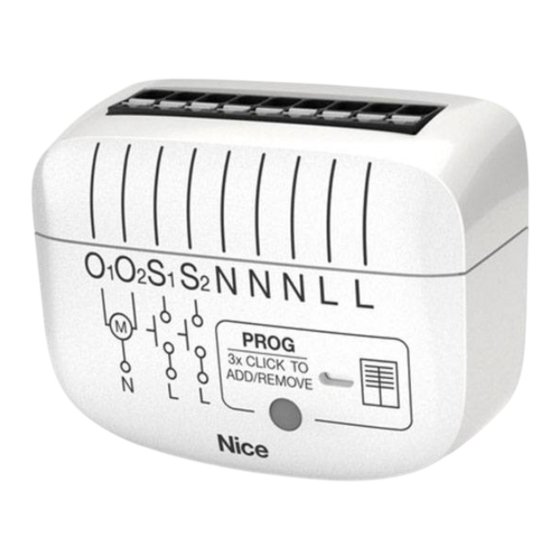

    The NICE Roll-Control2 is a device designed to control roller blinds, awnings, venetian blinds, curtains and pergolas. THE NICE Roll-Control2 allows precise positioning of roller blinds or venetian blind slats. The device is equipped with energy monitoring. It allows to control connected devices either via the Z-Wave network or via a switch connected directly to it.
  • Page 4: Specifications

    SPECIFICATIONS Specifications Power supply 100-240V~ 50/60 Hz Rated load current 2A for motors with compensated power factor (inductive loads) Compatible load types single-phase AC motors Required limit switches Electronic or mechanic Recommended external 10A type B circuit breaker (EU) overcurrent protection 13A type B circuit breaker (Sweden) Ø...
  • Page 5: Installation

    Open the wall switch box. Connect with the following diagram. Wiring diagram – connection with AC motor NICE Roll-Control2 Verify if the device is connected correctly. Arrange the device in a wall switch box. Close the wall switch box. Switch on the mains voltage.
  • Page 6 ADDING TO Z-WAVE NETWORK Adding (Inclusion) - Z-Wave device learning mode, allowing to add the device to existing Z-Wave network. Adding manually To add the device to the Z-Wave network manually: Power the device. Identify the PROG button or the S1/S2 switches. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual).
  • Page 7 REMOVING FROM Z-WAVE NETWORK Removing (Exclusion) – Z-Wave device learning mode, allowing to remove the device from existing Z-Wave network. To remove the device from the Z-Wave network: Make sure the device is powered. Identify the PROG button or the S1/S2 switches. Set the main controller in remove mode (see the controller’s manual).
  • Page 8: Operating The Device

    OPERATING THE DEVICE The device allows for connecting switch to the S1 and S2 terminals. These may be monostable or bistable switches. Switch buttons are responsible for managing the blind’s movement. Description: – Switch connected to the S1 terminal – Switch connected to the S2 terminal General tips: •...
  • Page 9 Monostable switches – hold to move Example of the switch design: Monostable switches - hold to move Parameter: Value: Parameter: 151. Roller blind, Awning, Pergola or Curtain Description: 1×click switch - 10% up movement 1×click switch - 10% down movement 2×click switch - Favorite position Hold...
  • Page 10 Bistabile switches Example of the switch design: Bistabile switches Parameter: Value: Parameter: 151. Roller blind, Awning, Pergola or Curtain Description: 1×click (circuit closed) - Initiate movement to the limit position Next click on the same - Stop same switch (circuit opened) Available values: Parameter: 151.
  • Page 11 Three-state switch Example of the switch design: Bistabile switches Parameter: Value: Parameter: 151. Roller blind, Awning, Pergola or Curtain Description: 1×click - Initiate movement to the limit position in the selected direction until the switch selects the stop command Available values: Parameter: 151.
  • Page 12: Resetting To Factory Defaults

    MENU Menu allows to perform actions. In order to use the menu: Switch off the mains voltage (disable the fuse). Remove the device from the wall switch box. Switch on the mains voltage. Press and hold the PROG button to enter the menu. Wait for the LED to indicate the desired menu position with colour: •...
  • Page 13 CONFIGURATION Association (linking devices) – direct control of other devices within the Z-Wave system network. Associations allow: • Reporting the device status to the Z-Wave controller (using Lifeline Group), • Creating simple automations by controlling other 4th devices without participation of the main controller (using groups assigned to ac- tions on the device).
  • Page 14 Association Group 2: „Window Covering” status and command Id value. Window covering calibration status and command Id value. Calibration status Window Covering name Window Covering id Device is not calibrated OUT_BOTTOM_1 12 (0x0C) Autocalibration successful OUT_ BOTTOM _2 13 (0x0D) Id_Roller Autocalibration failed OUT_BOTTOM_1...
  • Page 15 Operating mode: Venetian blind 90° (param 151 = 1) or Venetian blind 180° (param 151 = 2) Switch type Switch Single Click Double Click Parametr (20) Value Name Command Command Monostable switches – click to move Window Covering Id_Roller Start Level Change Window Covering Id_Roller Monostable switches –...
  • Page 16: Advanced Parameters

    The settings can be adjusted via the Z-Wave controller to which the device is added. The way of adjusting them might differ depending on the controller. In the NICE interface device configuration is available as a simple set of options in the Advanced Settings section. To configure the device: Go to Settings Go to Devices.
  • Page 17 Parameter: 41. Second button – scenes sent Description: This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking. Available settings: 0 - No scene active 1 –...
  • Page 18 Parameter: 158. Virtual limit switch. The pot protection Description: This parameter allows you to set a fixed minimum level of lowering the shutter. For example, to protect a flowerpot located on a windowsill. Available settings: 0-99 Default setting: 0 (default value) Parameter size: 1 [byte] Parameter:...
  • Page 19 Z-WAVE SPECIFICATION Indicator CC - available indicators Indicator ID – 0x50 (Identify) Indicator CC - available properties Z-Wave specification Property ID Description Values and requirements Starts toggling between ON and OFF Used to set the duration of an On/Off period. Toggling, 0x03 Available values:...
  • Page 20 Basic CC Basic CC Command Value Mapping command Mapping value Basic Set [0xFF] Multilevel Switch Set [0xFF] Basic Set [0x00] Multilevel Switch Set Multilevel Switch Set Start Level Change Basic Set [0x00] to [0x63] [0x00], [0x63] (Up/Down) Basic Get Multilevel Switch Get Basic Report Multilevel Switch (Current Value and Target Value...
  • Page 21 Altering capabilities NICE Roll-Control2 uses different set of Window Covering Parameter IDs depending on the values of the 2 parameters: Calibration status (parameter 150), Operating mode (parameter 151). Altering capabilities Calibration status Operating mode Supported Window Covering Parameter IDs (parameter 150)
  • Page 22 NICE reserves all rights to revise or update its products, software, or documentation without any obligation to notify any individual or entity. NICE logo is a trademark of NICE SpA Oderzo TV Italia All other brands and product names referred to herein are trademarks of their respective holders.
