4

INSTALLATION

4.1 Before the installation
Connecting the device in a manner inconsistent with this manual can cause risk to health, life or material damage.
• Don't power the device before fully assembling it in the mounting box.
• Connect only in accordance with the pictures below.
• Install only in flush mounting boxes compliant with relevant national safety standards and with depth no less than 60 mm.
• Don't connect devices which aren't compliant with the specification or relevant safety standards.
• Don't connect heating devices.
• Don't connect SELV or PELV circuits.
• Make sure electrical switches used in installation are compliant with relevant safety standards.
• Make sure length of wires used to connect the control switch should not exceed 20 m.
• Connect roller blind AC motors with electronic or mechanical limit switches only.
Notes for the Picture 1:
O1 - the 1 output terminal for the shutter motor
st
O2 - the 2 output terminal for the shutter motor
nd
S1 - the terminal for the 1
st
S2 - the terminal for the 2
nd
N - terminals for the neutral lead (connected internally)
L - terminals for the live lead (connected internally)
PROG - a service button (used to add/remove the device and navigate the menu)
Caution!
Proper wiring and wire removal guidelines
Place wires ONLY into the terminal slot(s) of the device. To remove any wires, press the release button, located over the slot(s).
4.2 Installation
1. Switch off the mains voltage (disable the fuse).
2. Open the wall switch box.
3. Connect following the Picture 2 on the right.
4. Verify if the device is connected correctly.
5. Arrange the device in a wall switch box.
6. Close the wall switch box.
7. Switch on the mains voltage.
Notes
• To connect external wall switch(es) use supplied jumper wires if necessary.
• If you are using Yubii Home app, you don't have to concern about connecting the directions correctly. You can change the directions in the
the wizard and device settings in the mobile app.
Caution
The supplied jumper wires can only be used to connect wall switches. Use an appropriate installation cable to conduct the load current of the
device. Other components of the installation (bridging) also needs to be connected with an appropriate installation cable. If necessary, use a
suitable electrical wires connector.
switch (also used for adding /removing the device)
switch (also used for adding /removing the device)
PE
L
N
N

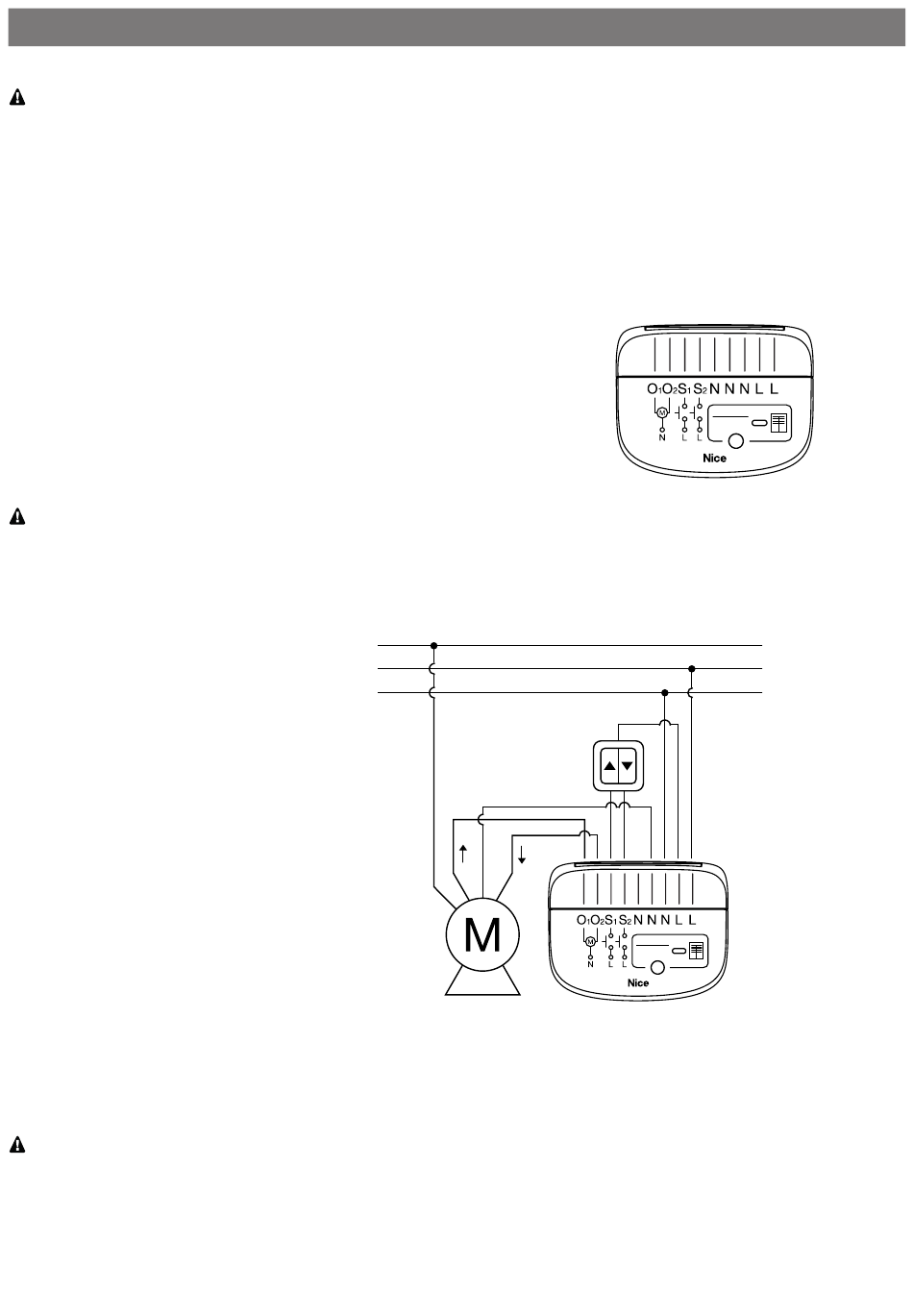

Picture 2: Wiring - connection with AC motor
PROG
3x CLICK TO
ADD/REMOVE
Picture 1: Roll-Controll2 - outputs and terminals
PROG
3x CLICK TO
ADD/REMOVE
5
