Terminal Strips - SEW-Eurodrive MOVIPRO PHE B-A15-1X0 B-00 Series Operating Instructions Manual

6.10

Terminal strips

Electric shock when disconnecting or connecting voltage-carrying plug connectors.
Severe or fatal injuries.
•
•
•
INFORMATION
For further information on the individual connections and connection cables, refer to
chapter "Electrical connections" (→ 2 54).

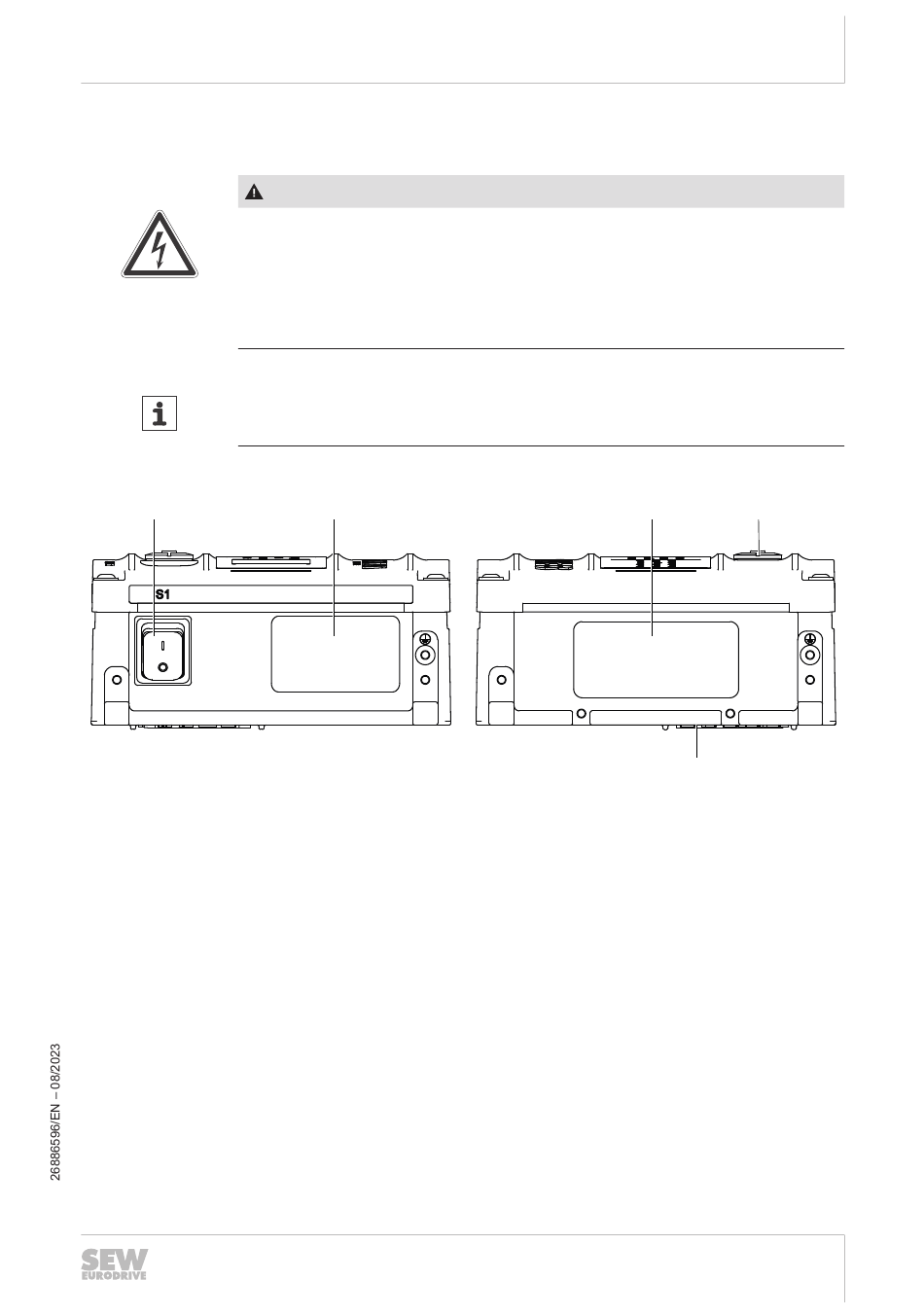

[1]
[1] S1 Operating switch
[2] X4022 RS485 interface – service
[3] X1261 AC 400 V contact conductor connection
[A] → Connection space for signal interfaces
[B] → Connection space for motor connection
WARNING
Disconnect all supply voltages.
Make sure that the device is de-energized.
Never plug or unplug the plug connectors while they are energized.
[A]
Operating Instructions – MOVIPRO
Electrical installation
Terminal strips
[B] [2]
[3]
9007225080746251
®
PHE..B-A15-.1X0..B-00
