6.11.5

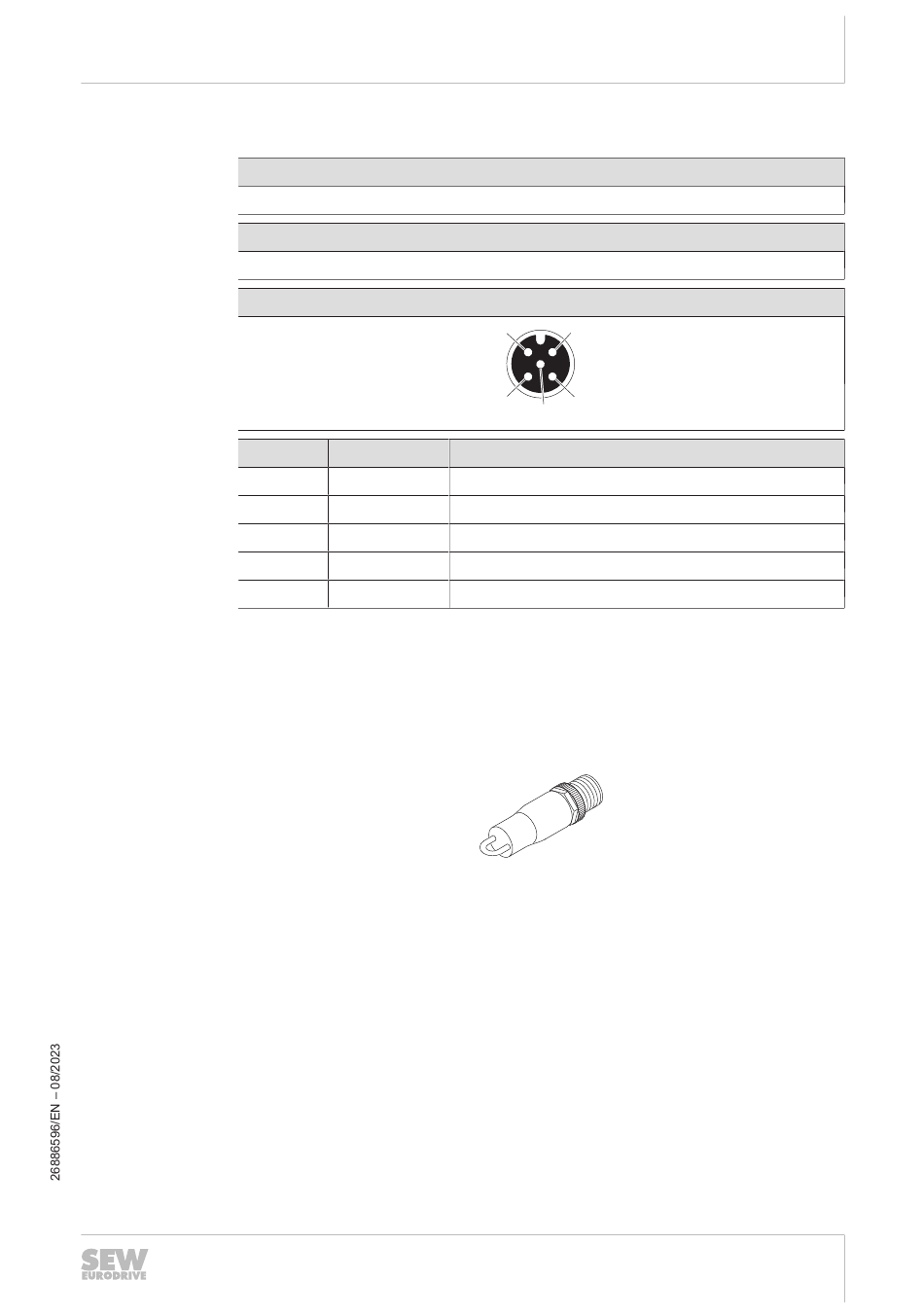

X1551: DC 24 V connection for external operating switches
Function
DC 24 V connection for external operating switches
Connection type
M12, 5-pin, female, A-coded
Connection image
No.
1
2
3
4
5
Connection component
Jumper plug
Part number: 11747099
Structure: bridged 1+4/2+3
Connection: M12
1
4
Name
Function
+24V
DC 24 V output
0V24_SW
0V24 reference potential – switched
0V24
0V24 reference potential
+24V_SW
DC 24 V input – switched
res.
Reserved
Operating Instructions – MOVIPRO
Electrical installation
Electrical connections
2
3
5
®
PHE..B-A15-.1X0..B-00
6
72057595186840843
59
