Operation

Adjust the Spring Arm Tension

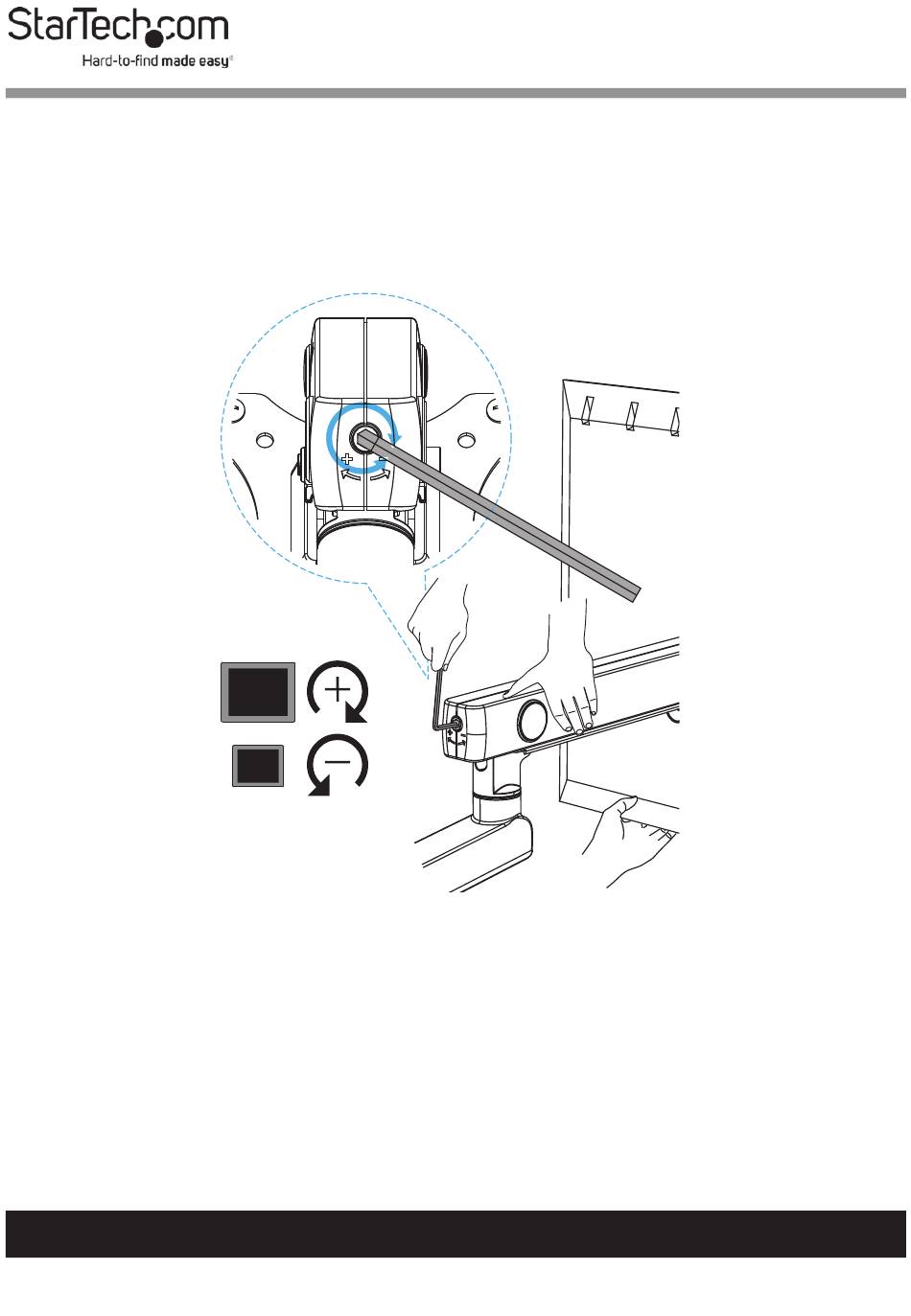

Locate the Tension Adjustment Screw on the Spring Arm.
1.
(Figure 19)
While Supporting the weight of the Monitor, use the
2.
6mm Hex Key to rotate the Tension Adjustment Screw.
Turn Clockwise to Increase the Tension for Heavier/Larger
Monitors, or turn Counterclockwise to Decrease the
Tension for Smaller/Lighter Monitors.
Note: The Spring Arm should keep its position if the tension is
correctly adjusted while still allowing for Height Adjustments.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Figure 19
