Pole and Shoulder Pole Mount Installation

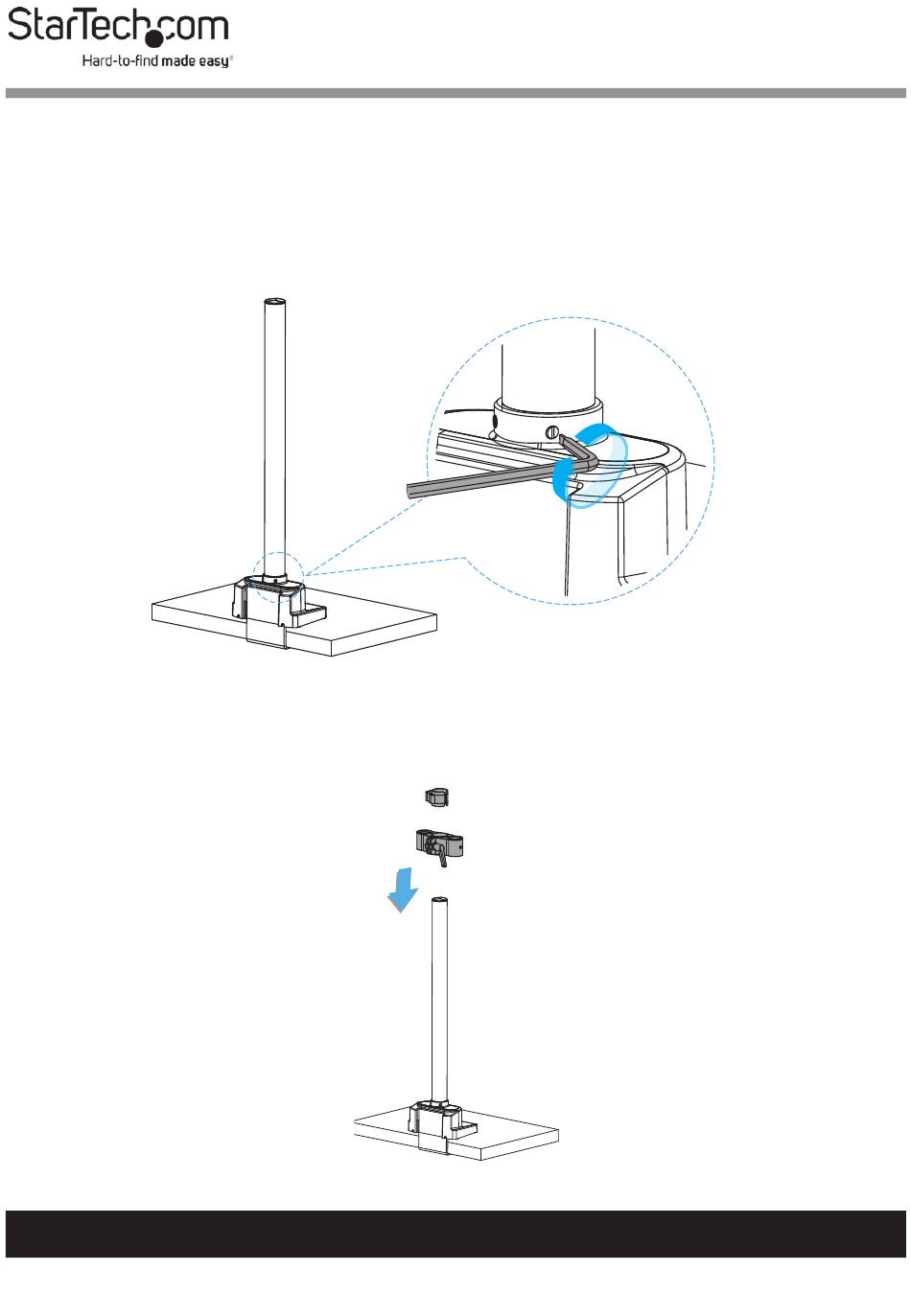

Fully Screw-in the Pole into the Pole Base by turning it
1.
Clockwise. Use the Flat Head side of the 3mm Hex Key
with Flat Screwdriver to tighten the Screws on the Pole
Base and secure the Pole in place. (Figure 6)
Slide the Shoulder Pole Mount and Cable Management
2.
Clip onto the Pole. (Figure 7)
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Figure 6
Figure 7
