4.6 Chart

This page charts the temperature, humidity, and dew point in real-time across the full span
(-40 to 124ºC, and 0 to 100% RH) or within any narrow range (such as 20 to 30ºC). The
time-base can display one minute, one hour, one day, one week, one month or one year.
If a blank screen appears without any "java application running" or image of a
"Java logo", please verify you have the latest Java Runtime Environment
installed and configured according to the instructions (refer to Appendix G).
If you do not have Java Runtime Environment, you may download it from our
website (in the software section) or contact the Customer Service Department
nearest you.
High / Low – If Alarm Relays are enabled (in the Configuration menu), the set point
values for High and Low alarms will be listed and graphed on the chart.
Max. / Min. – This shows the maximum and minimum values for Temperature and
Humidity (or Dewpoint) indicated on the Y-axis.

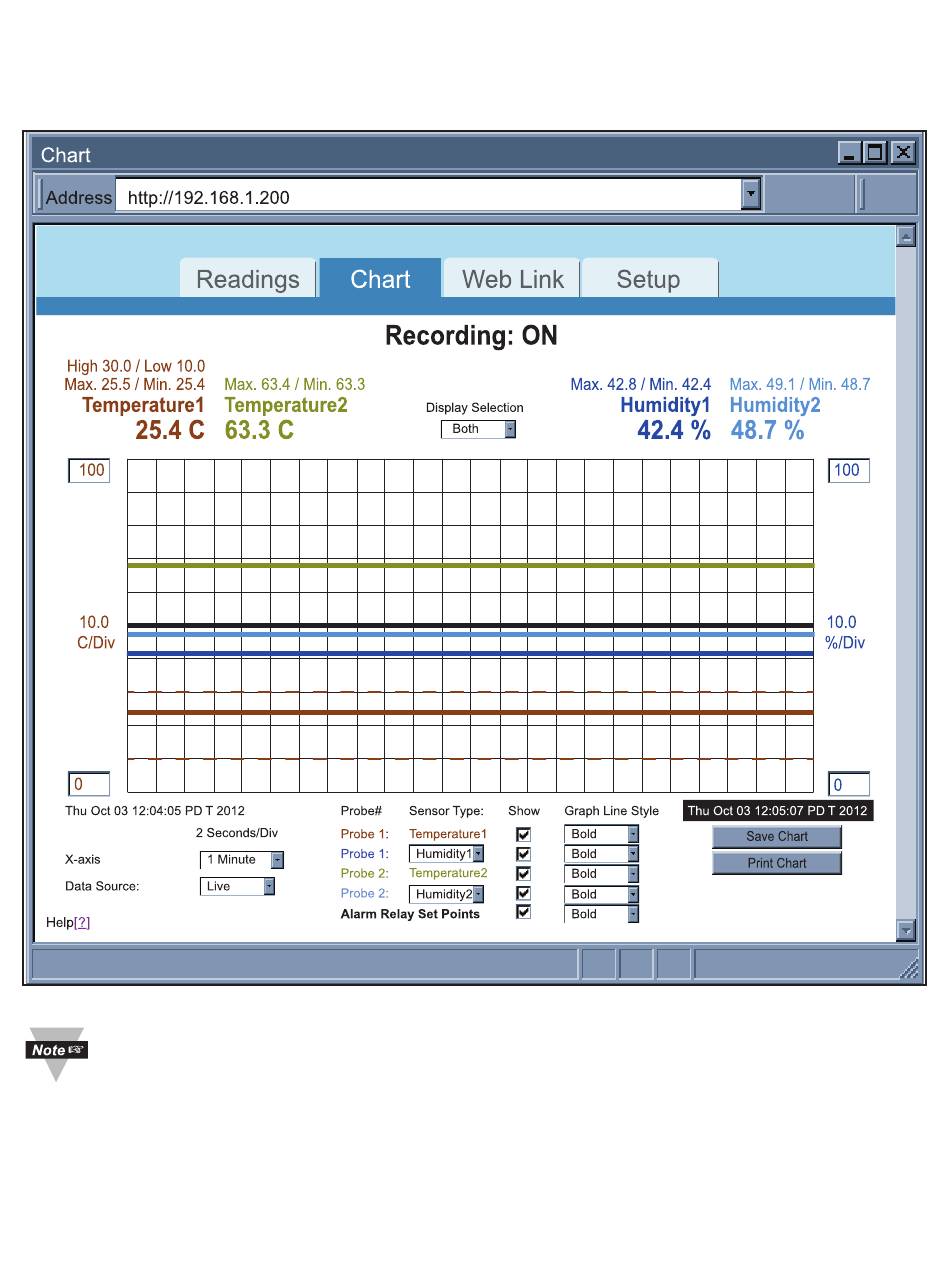

Figure 4.34 Adjustable Chart
