2.2 Wall Mounting

Position unit where required. Mark and drill the two #4 screw holes.
After bracket is mounted on the wall, align back of unit over the three bracket clips, once
engaged, slide downward, the unit will snap in place.
REAR WIRE
ENTRY AREA
DRILL 3.17 [0.125]
USE TWO, #4
FLAT HEAD SCREWS
TO MOUNT BRACKET
BRACKET CLIPS (3)
It is recommended that you ground your unit by connecting a wire to the Return/
Ground position of the relay connector, see Figure 2.6.
11.7 [0.46 ]

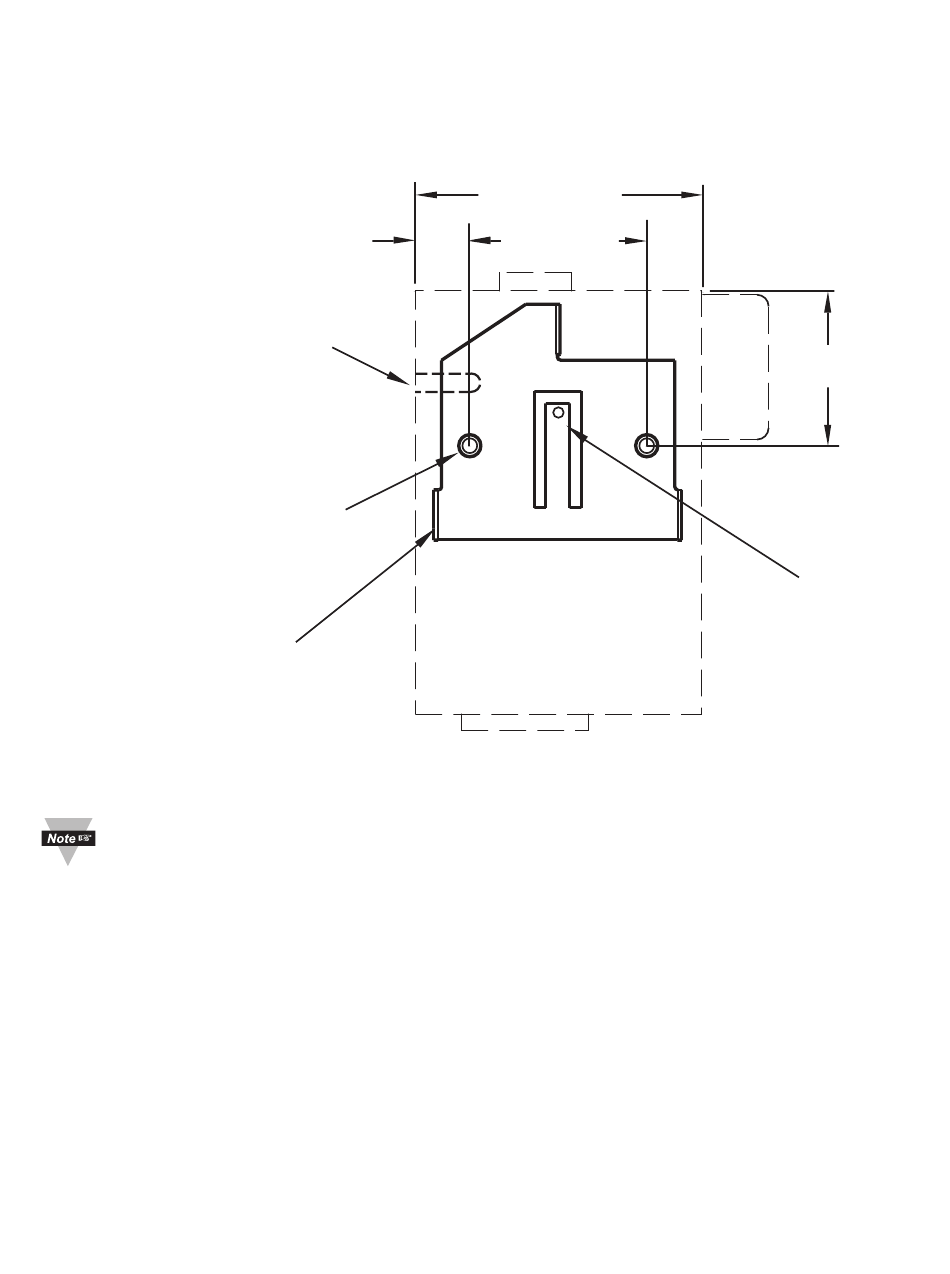

Figure 2.2 Wall Mounting

61.6 [2.42]
38.1 [1.50]
6
33.3 [1.31]
SNAP
Dimensions are in mm
with inches in [ ].
