PART 2 HARDWARE

2.1 Dimensions

12.7 [0.50 ]
82.6 [3.25]
19.1 [0.75]
61.6 [2.42]

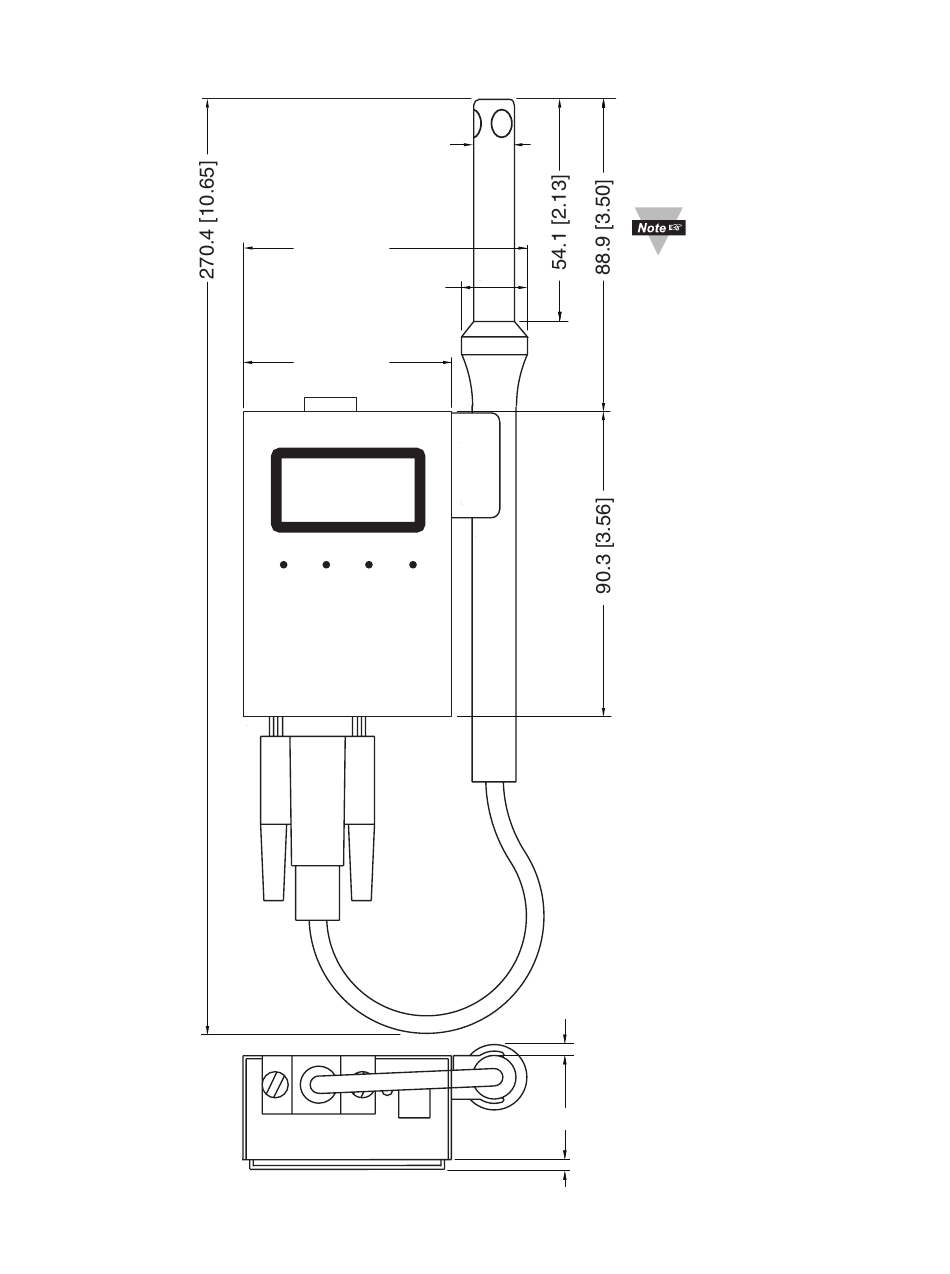

Figure 2.1 Dimensions

Dimensions are in mm
with inches in [ ].
3.0 [0.12]
36.6 [1.44]
2.54 [0.10]
5
If unit is to be
mounted on a flat
surface, you may
take the bottom
rubber feet off the
unit.
