2.3 Parts of the iServer Unit (continued)
STBY Button: 1) Stops the recording 2) Press before ejecting Flash Card.
NOTE: display will show "Safe to Eject SD" after button has been pressed.
BKLT
Button: Push and Hold to display Backlight on LCD when it is running on the
back-up battery (backlight is always on while running on the ac adapter).

2.4 Disassembly Instruction

You may need to open the unit for one of the following reasons:
To wire relay connector. (Refer to Figure 2.6)
To connect or replace the battery.
Disconnect the power supply before proceeding.
Make sure the flash memory card is fully inserted (or removed), before removing the
cover.
Remove probe from handle clip (if needed).
Remove cover, by removing 2 mounting screws on each side.
Press STBY before
ejecting Flash Card.
Display will show "Safe
to Eject SD" after button
has been pressed.
FLASH
CARD
RELAY
CONNECTOR
TRAY
POWER ADAPTOR

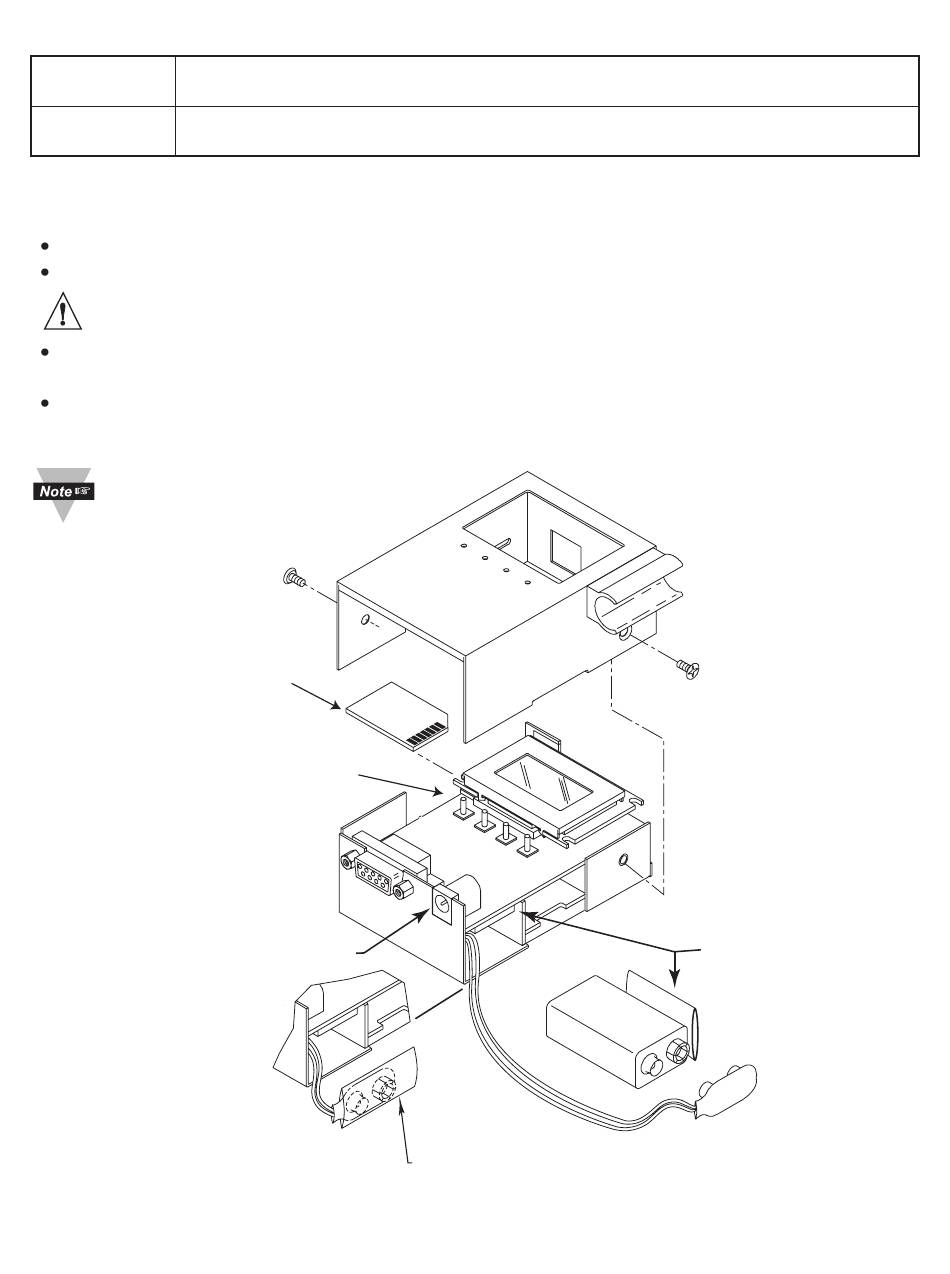

Figure 2.4 Opening the Unit

KEEP INSULATOR
COVER ON BATTERY
CLIP WHEN BATTERY
IS NOT BEING USED
8
COVER
MOUNTING
SCREWS (2)
REMOVE BATTERY CLIP
INSULATOR COVER AND
STORE WHERE SHOWN
WHEN 9V BATTERY IS
BEING USED.
