1.3 Description (continued)
Award-winning Technology. The iServer is simple to install and use. It features
award winning technology that requires no special software except a Web browser. The
iServer connects to an Ethernet Network with a standard RJ45 connector and sends
data in standard TCP/IP packets. It is easily configured with a simple menu using a
Web browser and can be password protected. From within an Ethernet LAN or over the
Internet, the user simply types its IP address or an easy to remember name such as
"Cleanroom5" or "ServerRoom" in any Web Browser, and the iServer serves a Web Page
with the current readings. The iServer comes complete with one temperature/humidity
wand probe, universal ac power adapter, 9V battery, SD card, and full documentation.
Example:
A standard web browser can be used to monitor and chart temperature and humidity.
The browser can also be used to configure the device's IP address, passwords for
access and all configuration parameters. An iLD Big Display can display temperature
and humidity received from an iServer over the Ethernet or the Internet.
The following example illustrates how you can hookup an iServer and iLD to your
network:

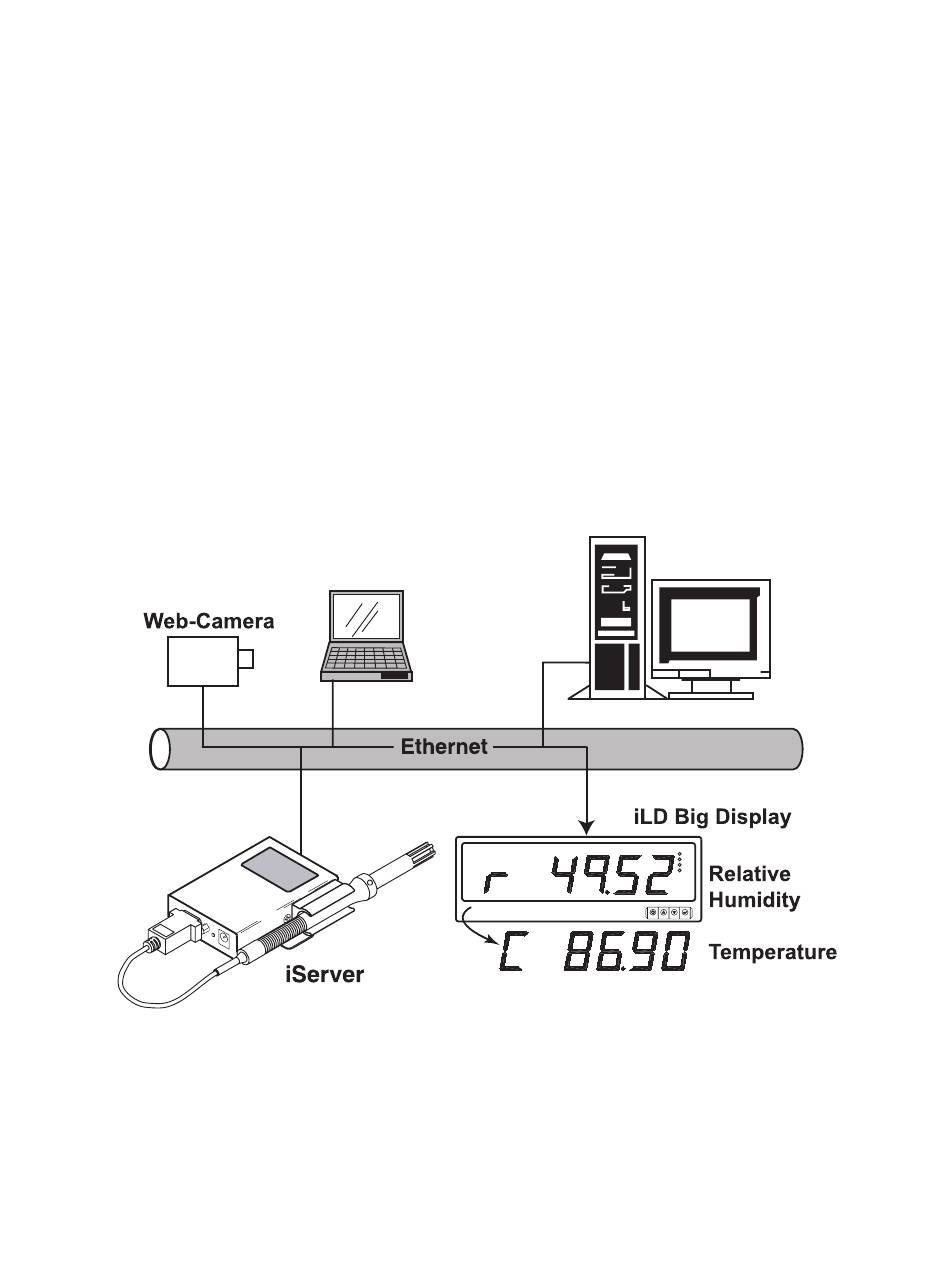

Figure 1.1 iServer and iLD Big Display on the Ethernet Network

COMPUTER with
Standard Web Browser
SMTP SNMP Server
4
COL
ON
TX
RX
and
