PART 3
NETWORK CONFIGURATION

3.1 Network Protocols

The iServer can be connected to an Ethernet network communicating through standard
IP protocols including TCP, UDP, SNMP, SMTP, ARP, HTTP (WEB access), DNS,
DHCP, ICMP, SNTP, and Telnet.

3.2 Ethernet (MAC) Address

MAC (Media Access Control) address is a unique hardware number for Ethernet devices
like computers, network switches, print servers, etc. When you're connected to an
Ethernet LAN using a computer you can see a table of IP addresses called "ARP table"
stored on that computer. The ARP table relates IP addresses of devices on a network
to their corresponding MAC addresses. The MAC address can be found on a label
attached to your Ethernet device and it contains 6 bytes (12 characters) of hexadecimal
numbers XX:XX:XX:XX:XX:XX hex
For example: 0A:0C:3D:0B:0A:0B

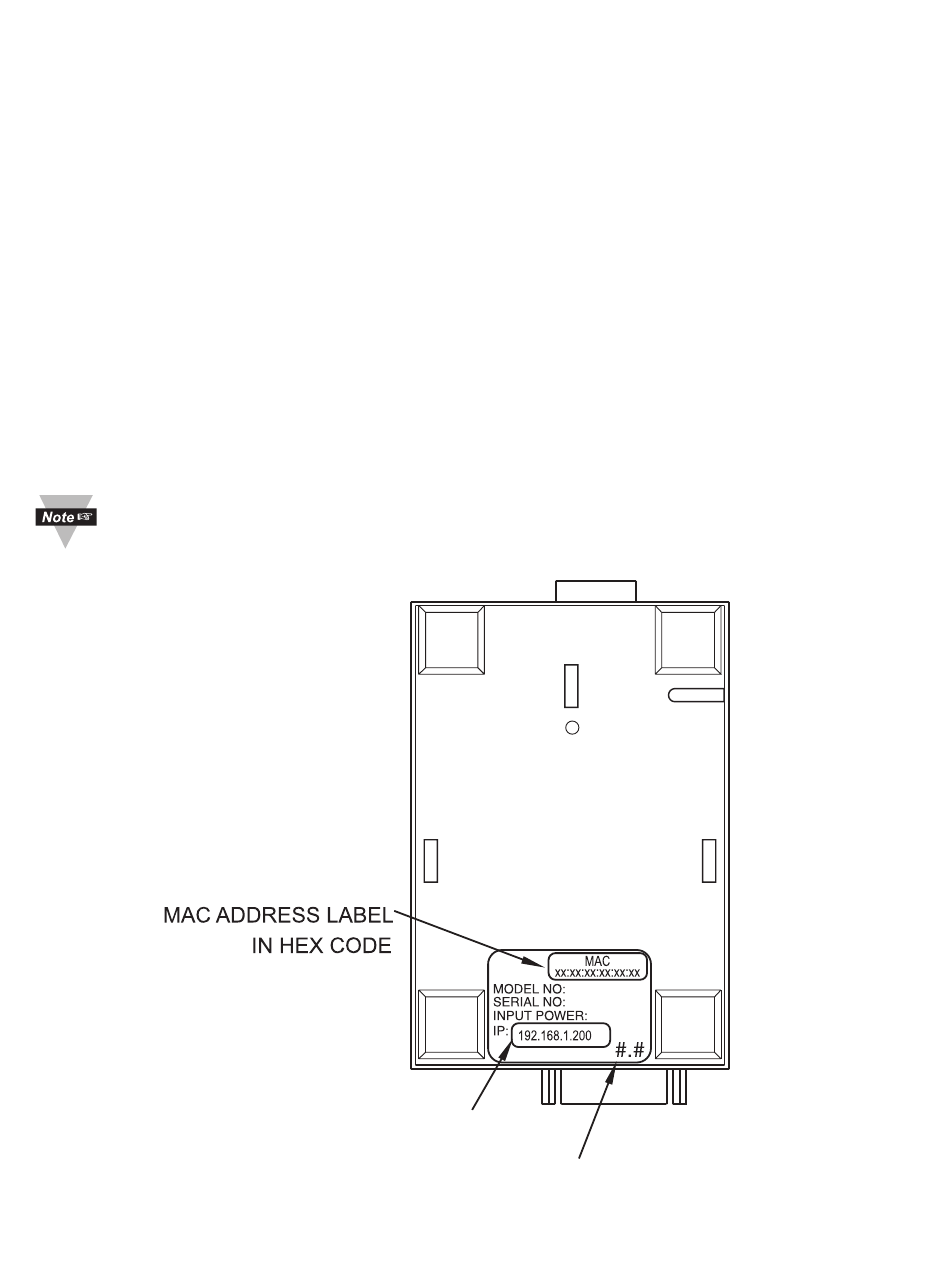

Remove the small label with the default IP address of 192.168.1.200 and there
will be room to put your IP address. See Figure 3.1
REMOVE FACTORY DEFAULT
PUT THE NEWLY ASSIGNED
IP ADDRESS IN THIS LOCATION.
IP ADDRESS LABEL.

Figure 3.1 Labeling

FIRMWARE VERSION #
10
