Tools And Aids; Types Of Installation; Type Of Installation Transom Installation Hinge Side; Type Of Installation Transom Installation Opposite Hinge Side - GEZE Powerturn Installation Manual

Tools and aids

4 Tools and aids
Tool
Drill bit
Open-ended spanner
Allen key
Allen key
Cross-tip screwdriver
5

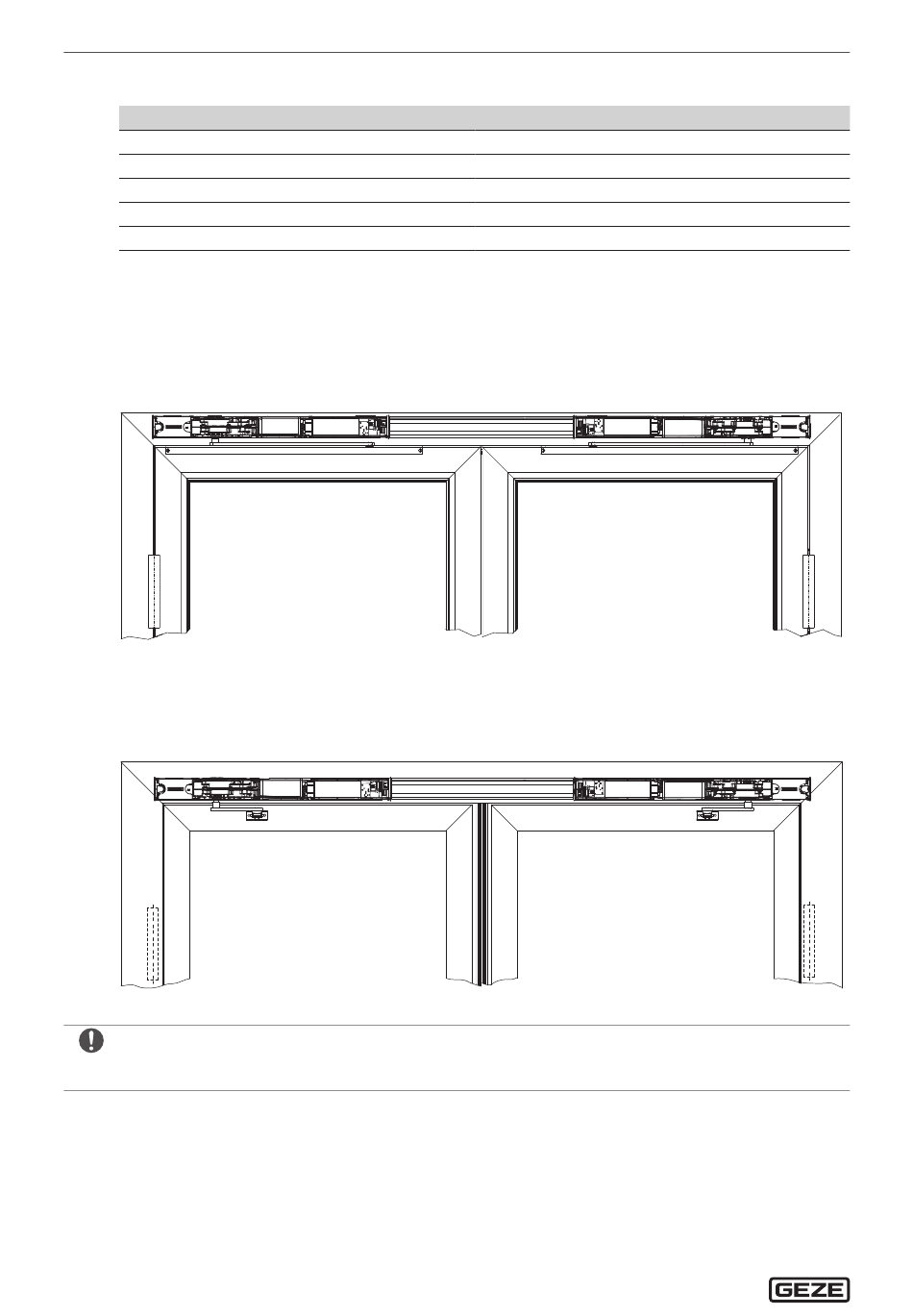

Types of installation

5.1

Type of installation transom installation hinge side

With this type of installation, only roller guide rail and lever can be used. Details about permissible reveal depth,
door overlap and installation holes can be found in the Powerturn installation manuals.
5.2

Type of installation transom installation opposite hinge side

With this type of installation, both link arms as well as roller guide rail and lever can be used. Details about
permissible reveal depth, door overlap and installation holes can be found in the Powerturn installation manuals.
Door leaf installation is not possible with mechanical, integrated closing sequence control.
4
passive leaf
passive leaf
Powerturn mechanism for integrated closing sequence control
Size
Ø 2 mm
Size 5.5
1.5 mm
2.5 mm
active leaf
active leaf
