Powerturn mechanism for integrated closing sequence control

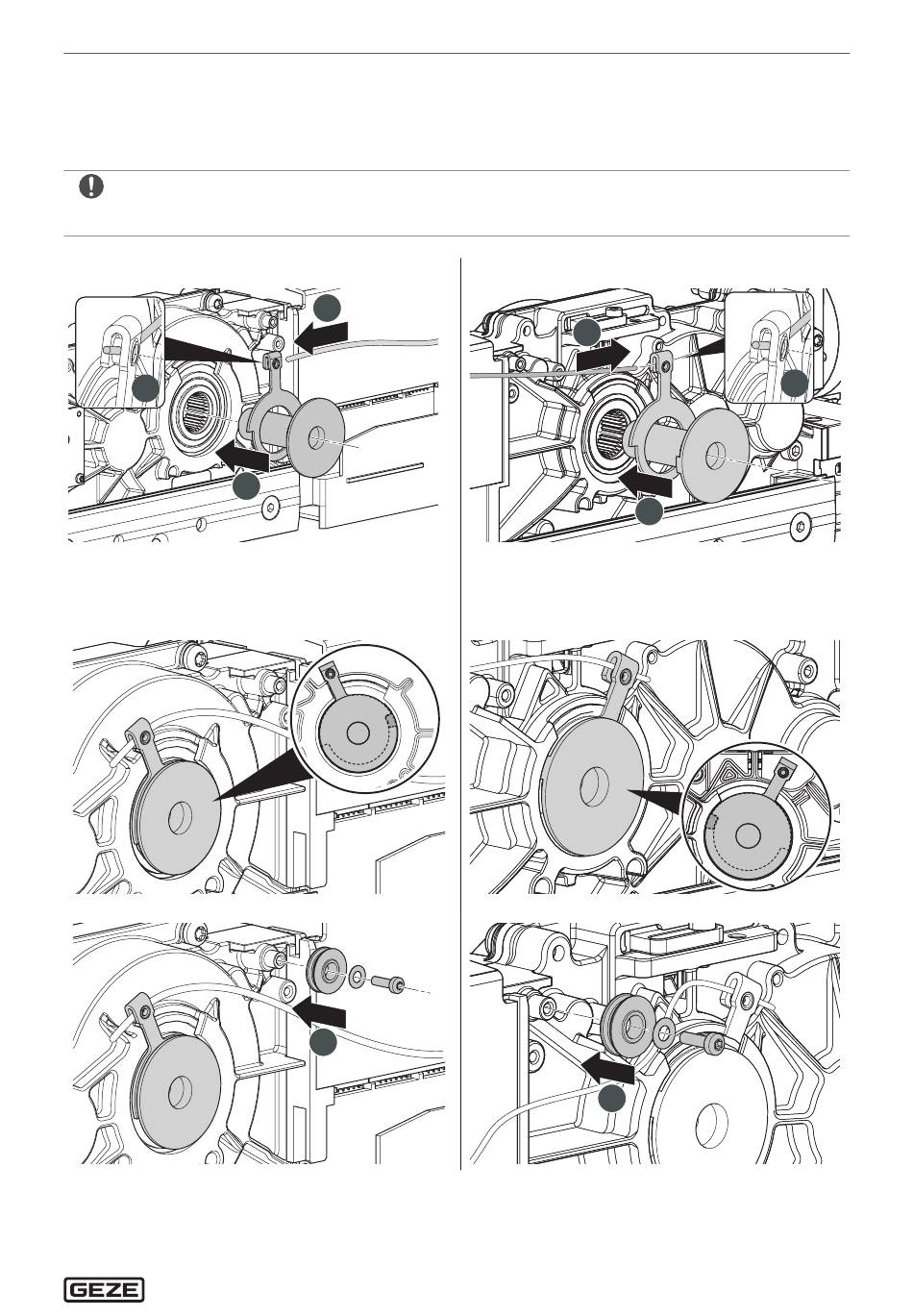

7.2 Install the mechanism for integrated closing sequence control for the passive
leaf drive
Transom installation hinge side
Damage to the rocker for integrated closing sequence control by the integrated closing counter piece.
When the IS-mechanism has been pre-mounted, only put the passive leaf drives into electrical operation when
X
the drives with roller lever or link arm have been installed on the door.
DIN left
SW 1,5
2
Position of rocker for integrated closing sequence control
and counter piece after insertion (drive not yet installed on
the door):
Rocker for integrated closing sequence control must be able to rotate easily on the shoulder of the rocker for integrated closing
sequence control.
The curved end of the rocker for integrated closing sequence control is facing the gear
1
3
4
Installing the integrated closing sequence mechanism
DIN right
1
Position of rocker for integrated closing sequence control
and counter piece after insertion (drive not yet installed
on the door):
4
SW 1,5
2
3
